Mean Well LPV-100-24 100.8W 24V IP67 LED Power Supply
Mean Well LPV-100-24 is a 100.8 W, 24 V DC constant-voltage LED power supply rated at 4200 mA.
Mean Well LPV-100-24 100.8W 24V IP67 LED Power Supply
Minimum order quantity: 1. Order in multiples of 1.
105.68 PLN
Shipment in 1-2 business days
tm_LPV-100-24
Mean Well LPV-100-24 is a 100.8 W, 24 V DC constant-voltage LED power supply rated at 4200 mA.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LPV-100-24 – full product specification
Mean Well LPV-100-24 is a LPV-100-series power supply rated at 100.8 W. The parameters below come from the exact official manufacturer datasheet.
Constant-voltage output
The model supplies loads at 24 V DC with a rated output current of 4200 mA.
Full technical specifications
| Fully isolated enclosure | Yes |
|---|---|
| Enclosure material | plastic |
| Cooling | free-air convection |
| Dimensions | 190 × 52 × 37 mm |
| Document revision | LPV-100-SPEC 2025-12-12 |
| Typical efficiency | 88 % |
| hold_up_time | 230 vac ms: 50; 115 vac ms: 14 |
| Input frequency | 47–63 Hz |
| Input range | 90–264 VAC / 127–370 VDC |
| Inrush current | 75 A |
| Insulation resistance | 100 MΩ |
| IP rating | IP67 |
| Leakage current | 0.25 mA |
| Operating temperature | -25–70 °C |
| Rated current | 4200 mA |
| Operating mode | Constant Voltage (CV) |
| Output voltage | 24 V |
| Over-voltage protection range | 27.6–32.4 V |
| Over-voltage protection | Yes |
| Short-circuit protection | Yes |
| Rated power | 100.8 W |
| Manufacturer warranty | 2 years |
| Weight | 0.61 kg |
| Withstand voltage | 3 kVAC |

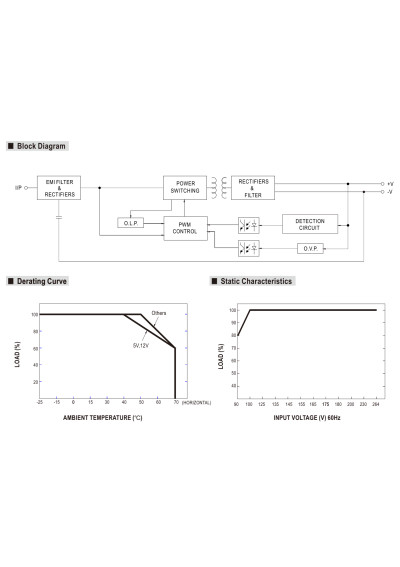

Manufacturer datasheet
Complete source specification: official Mean Well datasheet.
Manufacturer information: Mean Well states that the LPV-100 series is not intended for LED lighting luminaire applications in the EU and China; the manufacturer recommends the LPF, NPF, XLG, XLC or XLN series.
tm_LPV-100-24
Data sheet
- Power supply type
- Constant Voltage (CV)
- Rated power [W]
- 60,1-100
- Output Voltage of CV power supply [V]
- 24
- IP grade
- 67
- Length [mm]
- 190
- Width [mm]
- 52
- Height/thickness [mm]
- 37
- Warranty [years]
- 2
- Input voltage [V]
- 90-264
Specific References
- EAN13
- 4711287455785
- MPN
- LPV-100-24
