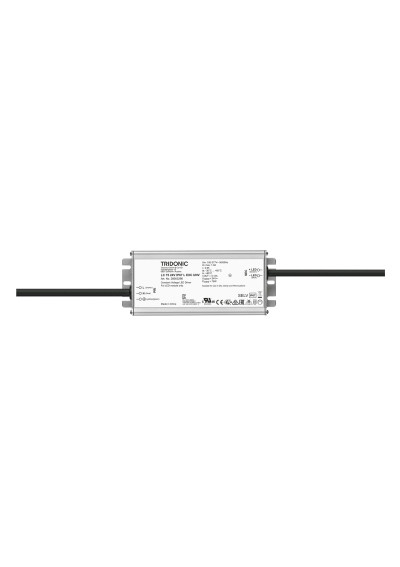

LED power supply Tridonic LC 75 24V IP67 L EXC UNV

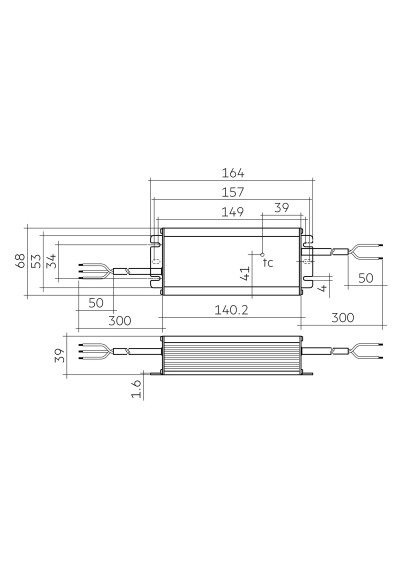

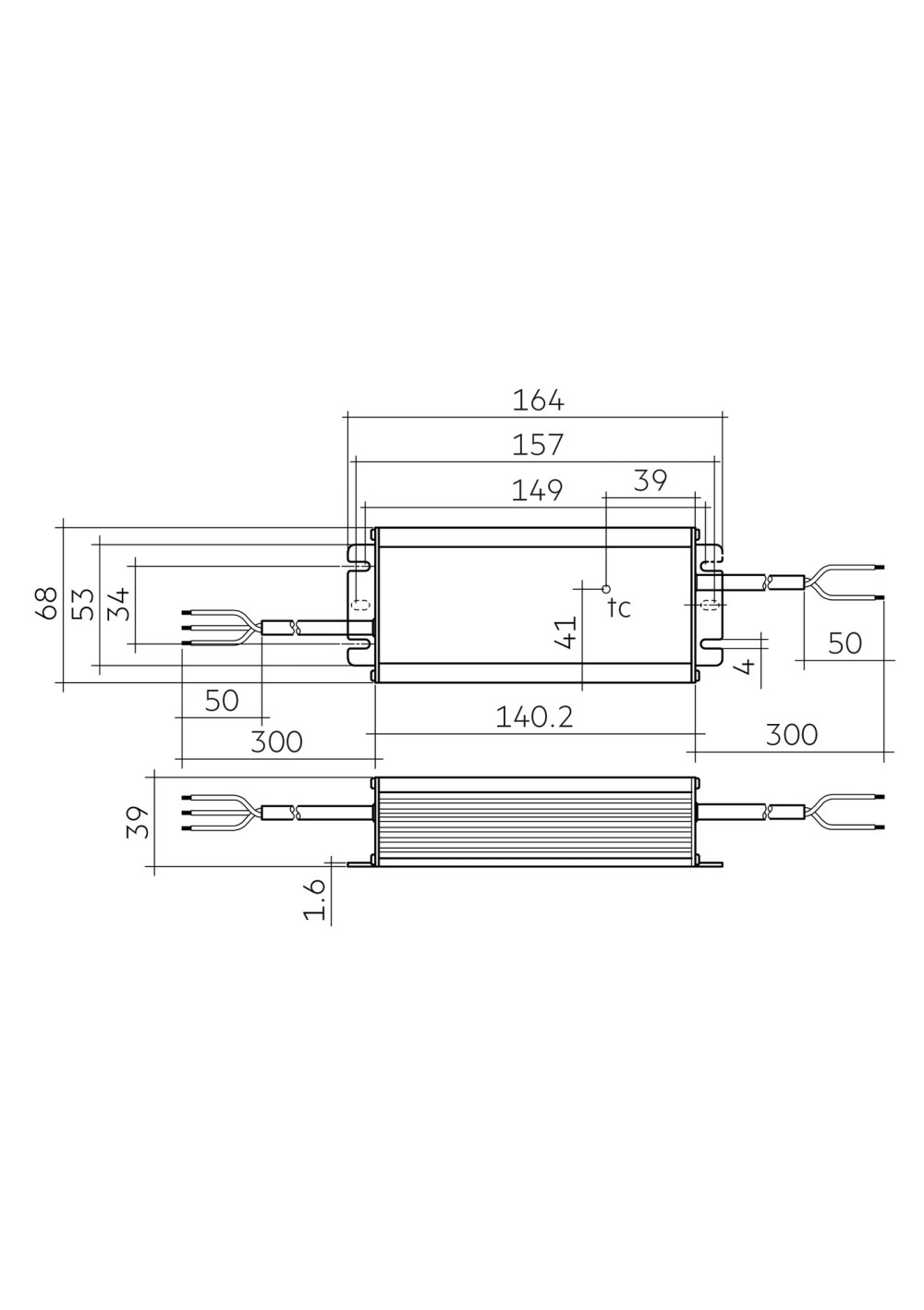

Dimensional drawing LC 75 24V IP67 L EXC UNV

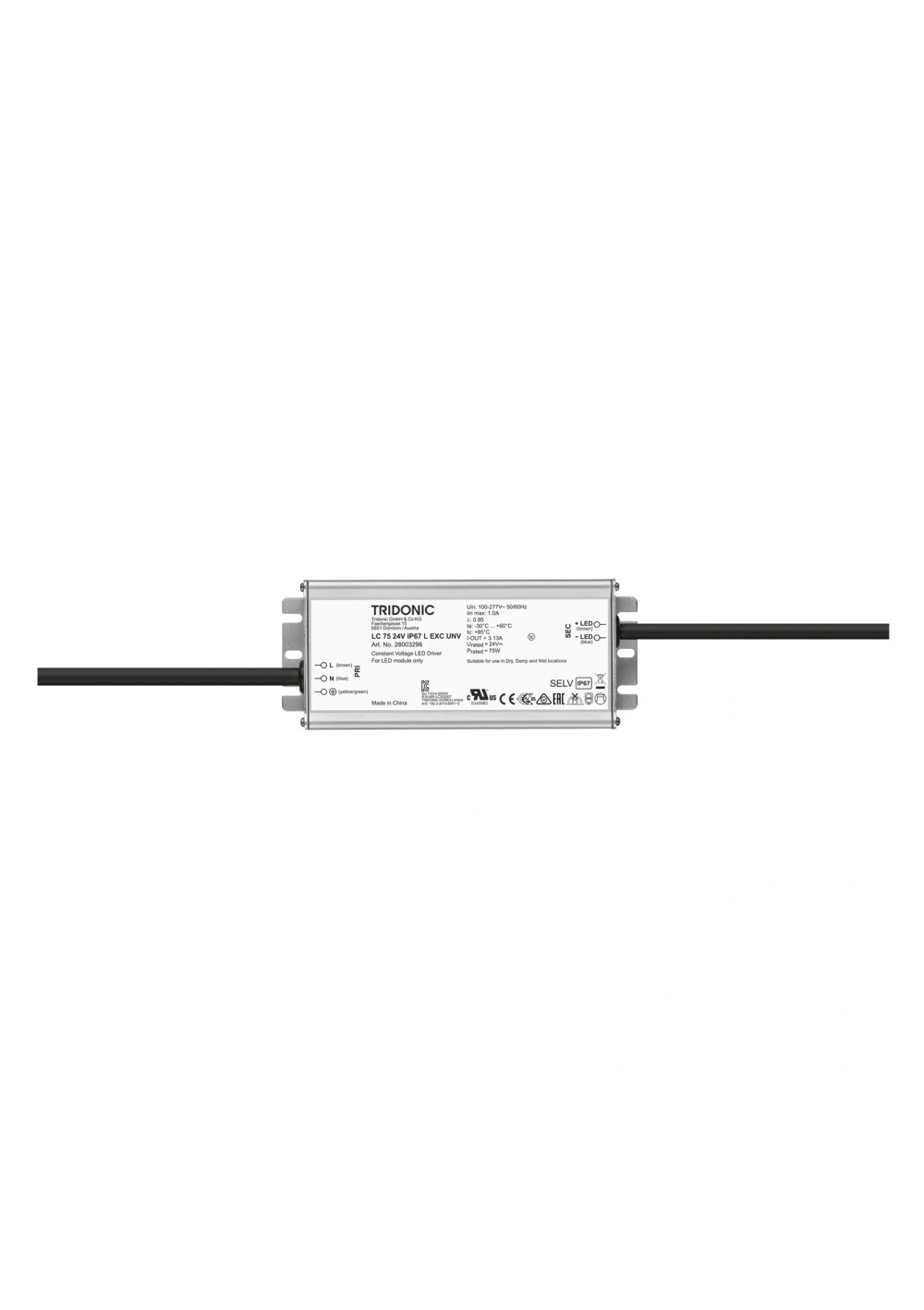

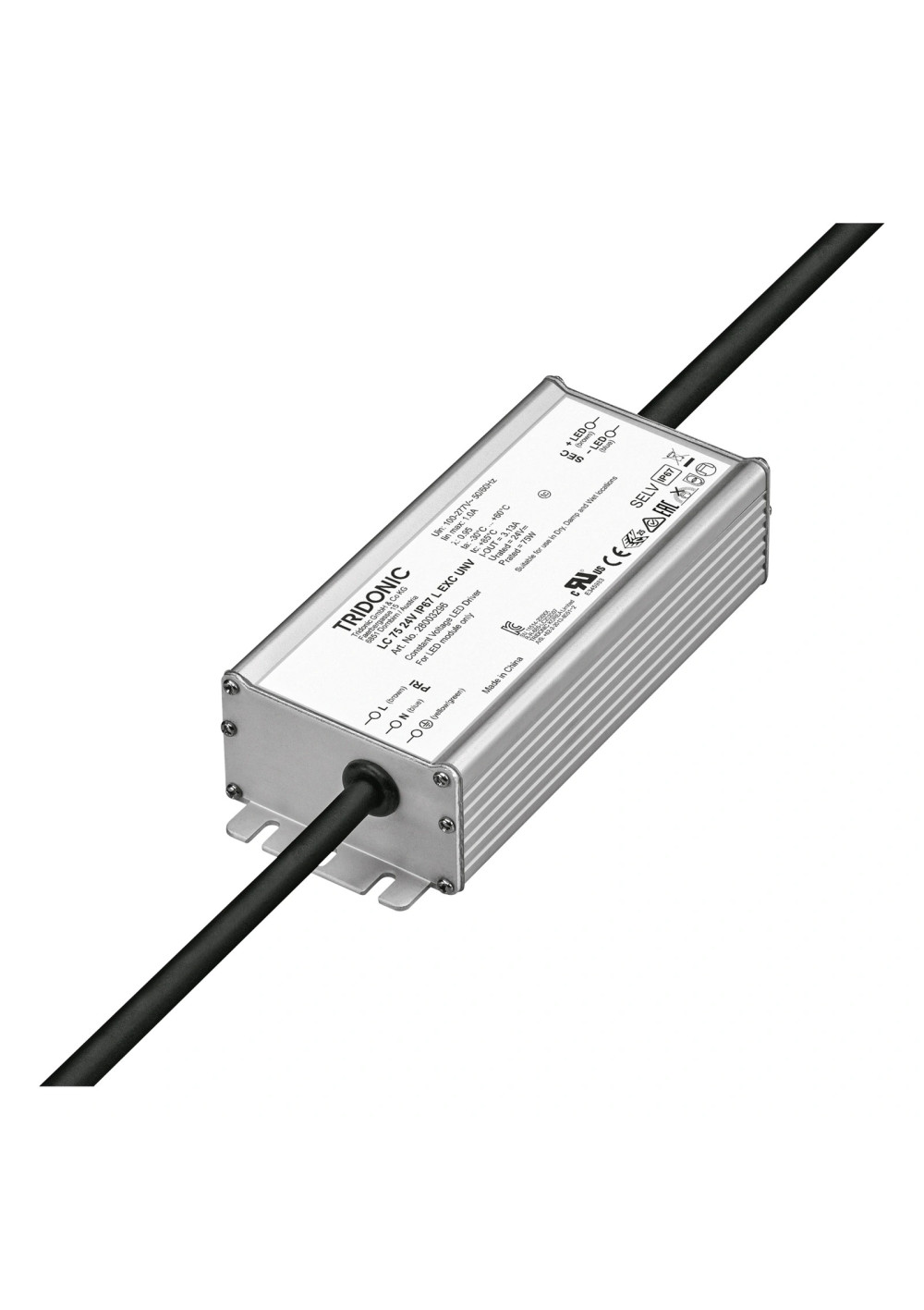

LED power supply Tridonic LC 75 24V IP67 L EXC UNV

Name: LED power supply Tridonic LC 75 24V IP67 L EXC UNV
Brand: LEDownia.pl
SKU: zas_tridonic_28003296
Price: 385 PLN
Availability: InStock

385.00 PLN

Shipment in 1-2 business days

Category: Constant Voltage (CV)

Reference: zas_tridonic_28003296

LED power supply Tridonic LC 75 24V IP67 L EXC UNV is a constant voltage LED power supply rated up to 75 W. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.

Delivery

1-3 dni (PL), 3-10 dni (non-PL)

Return Policy

14 days

Description
Product Details

LED power supply Tridonic LC 75 24V IP67 L EXC UNV is a constant voltage LED power supply in the Driver LC 75W 24V IP67 L EXC UNV family. Official article number 28003296 identifies this physical version.

Key properties

Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.

Technical specifications

Manufacturer article number	28003296
Manufacturer family	Driver LC 75W 24V IP67 L EXC UNV
Manufacturer product group	Linear drivers
Supply voltage	100 – 277 V
AC voltage range	90 – 305 V
Mains frequency	50 / 60 Hz
Typ. current (at 230 V, 50 Hz, full load)	1000 mA
Typ. current (at XXX V, 60 Hz, full load)	1000 mA; 1000 mA
Leakage current	<0.75 mA; <0.75 mA; <0.75 mA
Typ. input power in no-load operation	1.08 W
Typ. efficiency at 230 V	>86 %
Typ. efficiency at 120 V	>86 %; >84 %
λ over full operating range (max.)	0.95
λ over full operating range (min.)	0.9C; 0.98
Starting time	≤0.5 s
Hold on time	≤0.001 s
Output voltage tolerance	22.8–25.2 V
Output LF voltage ripple	±5 %
Mains surge capability (between L - N)	4 kV
Mains surge capability (between L/N - PE)	10 kV
(Mains) burst capability	1 kV
Surge voltage at output side (against PE)	<0.5 kV
Ambient temperature ta	50 °C
Storage temperature ts	-40–85 °C
Max. casing temperature tc	85 °C
Type of protection	IP67
Length	164 mm
Width	68 mm
Height	39 mm
Hole spacing	149 mm
Lifetime	up to 50000 h
Guarantee	5 years
Output mode	CV
Maximum output power [W]	75
Input voltage	100 – 277 V
IP grade	IP67
Warranty [years]	5
Maximum casing temperature tc	85 °C
Storage temperature	-40–85 °C
Typ. efficiency at 230 V	>86 %
λ over full operating range (max.)	0.95
Dimensions L×W×H	164 × 68 × 39 mm
Lifetime [h]	up to 50000 h
Product net weight	0.73 kg
short_circuit_protection	Yes
overload_protection	Yes
no_load_protection	Yes
Manufacturer note: Product description	Constant voltage LED driver
Manufacturer note: Product description	Universal input voltage range
Manufacturer note: Product description	Max. output power 75 W
Manufacturer note: Product description	Nominal lifetime up to 50,000 h
Manufacturer note: Product description	5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
Manufacturer note: Housing properties	Casing: aluminium, grey
Manufacturer note: Housing properties	Type of protection IP67
Manufacturer note: Housing properties	Dry, damp and wet location
Manufacturer note: Housing properties	Potted version: higher protection against corrosion
Manufacturer note: Functions	Overtemperature protection
Manufacturer note: Functions	Overload protection
Manufacturer note: Functions	Short-circuit protection
Manufacturer note: Functions	No-load protection

Operating points

Point	Load	Output current	Output voltage	Typ. current consumption	Output power	Typ. power consumption	Ambient temperature ta
1	10.0 %	314.0 mA	23.9 V	70 mA; 69 mA; 95 mA	7.5 W	10.1 W; 10.6 W; 10.3 W	-40–60 °C
2	20.0 %	627.0 mA	23.9 V	96 mA; 103 mA; 168 mA	15 W	19.5 W; 19.6 W; 19.3 W	-40–60 °C
3	30.0 %	939.0 mA	23.8 V	121 mA; 136 mA; 234 mA	22.4 W	27.7 W; 27.5 W; 27.4 W	-40–60 °C
4	40.0 %	1252.0 mA	23.8 V	161 mA; 170 mA; 301 mA	29.9 W	35.9 W; 35.5 W; 35.6 W	-40–60 °C
5	50.0 %	1565.0 mA	23.8 V	188 mA; 201 mA; 369 mA	37.3 W	43.6 W; 43.4 W; 43.8 W	-40–60 °C
6	60.0 %	1878.0 mA	23.8 V	208 mA; 235 mA; 439 mA	44.8 W	51.6 W; 51.5 W; 52.3 W	-40–60 °C
7	70.0 %	2191.0 mA	23.8 V	234 mA; 270 mA; 509 mA	52.2 W	59.6 W; 59.7 W; 60.8 W	-40–60 °C
8	80.0 %	2503.0 mA	23.8 V	259 mA; 304 mA; 580 mA	59.7 W	67.6 W; 67.7 W; 69.2 W	-40–60 °C
9	90.0 %	2816.0 mA	23.8 V	287 mA; 339 mA; 651 mA	67.1 W	75.7 W; 75.9 W; 77.8 W	-40–60 °C
10	100.0 %	3130.0 mA	23.8 V	316 mA; 373 mA; 722 mA	74.5 W	83.8 W; 85 W; 86.3 W	-40–60 °C

Installation / application

Select the load for the documented voltage and permissible power. Dimming and installation details apply only to interfaces documented for this article.

Additional information

Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.

Main source of information: www.tridonic.com

We make every effort to ensure that the information presented in this product description is complete, up to date and consistent with source documentation. However, product ranges and specifications may evolve and be updated, and some changes may not yet be reflected in our description. Inaccuracies or errors may also occur in the source documentation itself. If you have any doubts or notice an error, please contact us at bok@ledownia.pl.

Reference zas_tridonic_28003296
