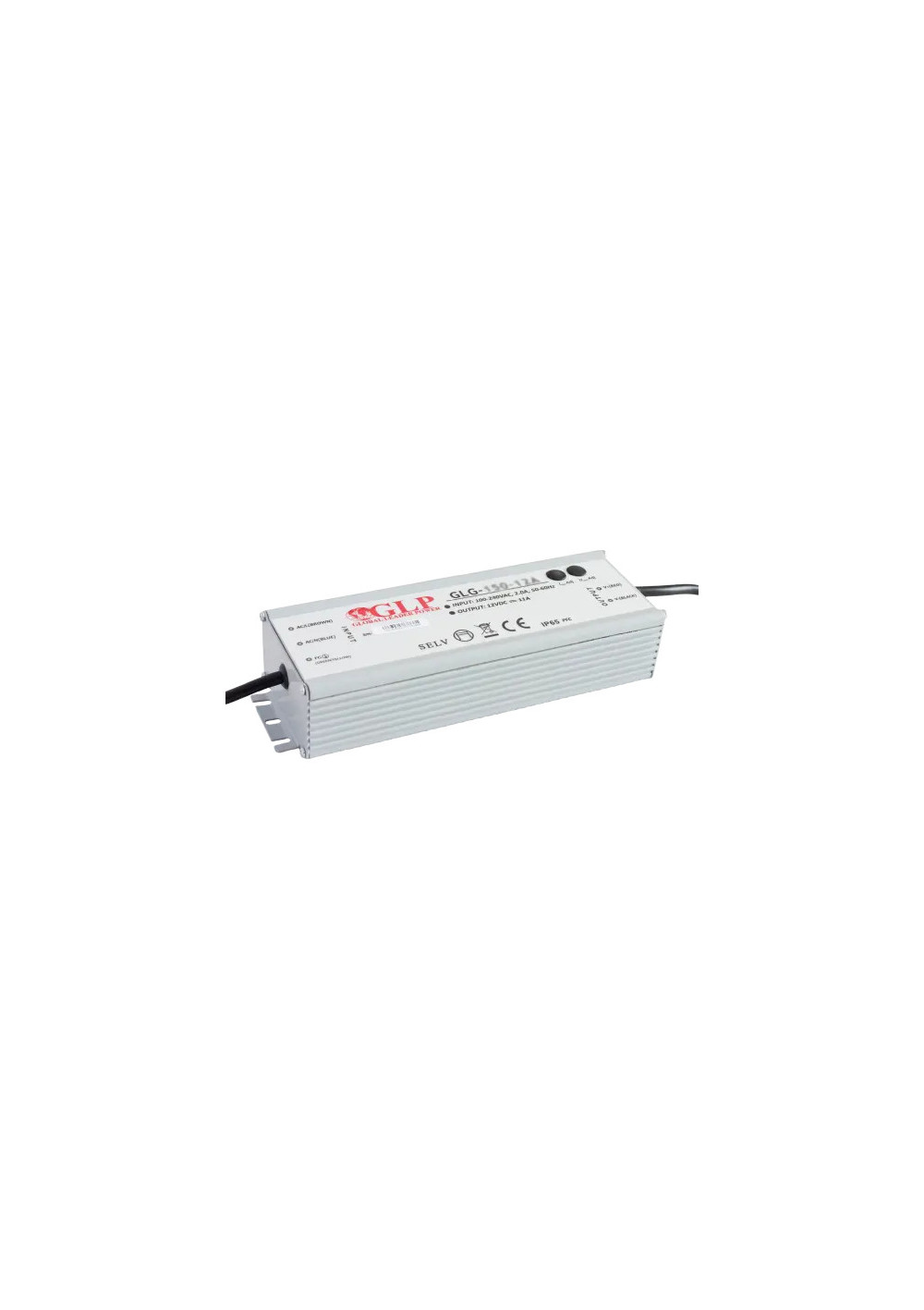

GLP GLG-300-12 300W 12V 25A CV+CC LED power supply
GLP GLG-300-12 is a power supply whose parameters are verified against official manufacturer documentation. Full technical data and documents are listed below.
GLP GLG-300-12 300W 12V 25A CV+CC LED power supply
380.42 PLN
Shipment in 1-2 business days
zas_glg_300_12_mp
GLP GLG-300-12 is a power supply whose parameters are verified against official manufacturer documentation. Full technical data and documents are listed below.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
GLG-300-12 – full technical specification
GLP GLG-300-12 is a power supply whose parameters are verified against official manufacturer documentation. Full technical data and documents are listed below.
Identity
| Manufacturer | GLP |
|---|---|
| Model | GLG-300-12 |
| Series | GLG |
Output parameters
| Line regulation | 1 % |
|---|---|
| Load regulation | 2 % |
| Rated output current | 25 A |
| Operating mode | CC |
| Output voltage | 12 V |
| Rated power | 300 W |
| Ripple and noise | 360MVP-P |
Input parameters
| Input current | 3.1A/115VAC,1.6A/230VAC A |
|---|---|
| Input frequency | 47–63 Hz |
| Input voltage range | AC: 90–264 VAC |
| Inrush current | 65A/230VAC A |
| Leakage current | 1mA/240VAC mA |
Efficiency and electrical parameters
| Typical efficiency | 87 % |
|---|---|
| Power-factor correction | active |
Protections
| Over-current protection | Yes |
|---|---|
| Over-voltage protection | Yes |
| Short-circuit protection | Yes |
Environmental conditions
| Operating temperature | -30–70 °C |
|---|---|
| Storage temperature | -40–80 °C |
| Temperature coefficient | 0.03 %/°C |
| Operating humidity | 20–95 % RH |

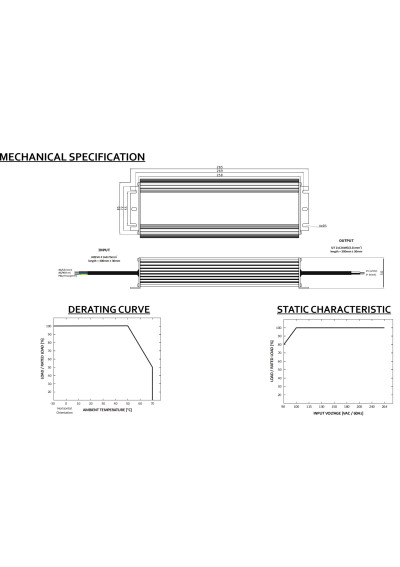

Construction and dimensions
| Cooling | free_air_convection |
|---|---|
| Dimensions (L × W × H) | 285 × 96 × 50 mm |
| IP rating | IP67 |
Safety and EMC
| EMC emission | Compliance to EN55015 |
|---|---|
| Harmonic current | Compliance to EN61000-3-3;EN61000-3-2classC(≥90%load) |
| EMC immunity | Compliance to EN61547;EN55024;EN61000-4-2,-3,-4,-5,-6,-8,-11 |
| Insulation resistance | I-P/O-P,I-P/GND,O-P/GND:100MΩ/500VDC/25°C/70% |
| Safety standards | Compliance to EN61347-1,EN61347-2-13,IP65 |
| Withstand voltage | I-P/O-P:3kVAC;I-P/GND:1.5kVAC;O-P/GND:0.5kVAC |
Manufacturer documentation
zas_glg_300_12_mp
Data sheet
- Power supply type
- CV+CC
- Rated power [W]
- 250-499
- Dimensions (L x W x H) [mm]
- IP grade
- 67
- Length [mm]
- 285
- Width [mm]
- 96
- Height/thickness [mm]
- 50
- Input voltage [V]
- 90-264
Specific References
- EAN13
- 5902135137529
