Mean Well RS-150-12 150 W 12 V DC CV LED power supply 12500 mA
Mean Well RS-150-12 150 W 12 V DC CV LED power supply 12500 mA – dimensions

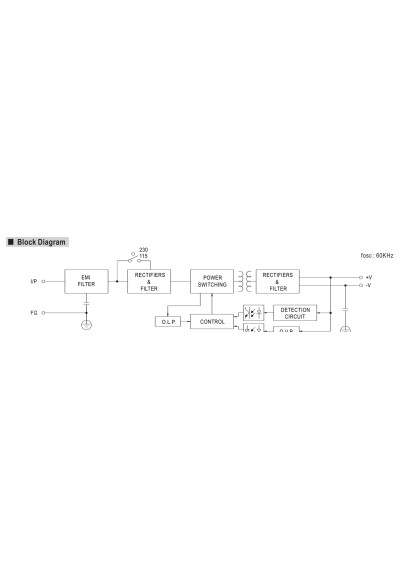

Mean Well RS-150-12 150 W 12 V DC CV LED power supply 12500 mA – block diagram

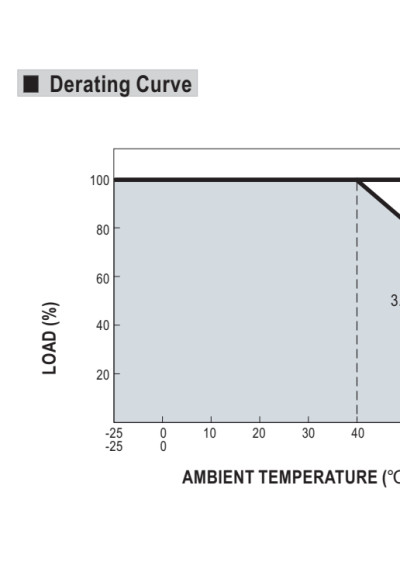

Mean Well RS-150-12 150 W 12 V DC CV LED power supply 12500 mA – derating characteristic

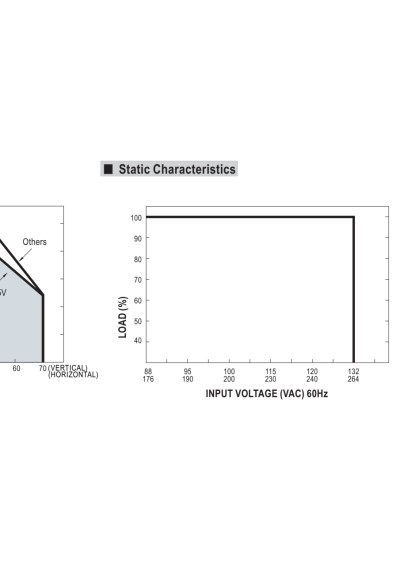

Mean Well RS-150-12 150 W 12 V DC CV LED power supply 12500 mA – static characteristic

Mean Well RS-150-12 150W 12V IP20 LED Power Supply

Minimum order quantity: 1. Order in multiples of 1.
121.94 PLN
Shipment in 1-2 business days
Constant Voltage (CV)
tm_RS-150-12

Mean Well RS-150-12 is a 150 W constant-voltage LED power supply with a 12 V DC output and 12500 mA rated current.

Volume discounts

Quantity Discounted price
5+ 113.81 PLN
10+ 105.68 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

RS-150-12 – full product specification

Mean Well RS-150-12 is an LED power supply from the RS-150 series with a 150 W rated output. The verified manufacturer datasheet data below supports correct circuit and operating-condition selection.

Selection and output

Use this model with LED loads designed for a 12 V DC supply. The rated output current is 12500 mA; match the total connected load to the rated output power.

Input and efficiency

Manufacturer-specified typical efficiency is 83 %.

Full technical specifications

ManufacturerMean Well
SeriesRS-150
ModelRS-150-12
Operating modeConstant Voltage (CV)
Rated power150 W
Output voltage12 V
Rated output current12500 mA
Typical efficiency83 %
Inrush current40 A
Over-voltage protection range13.8–16.2 V
Over-voltage protectionYes
Withstand voltage3 kVAC
Dimensions (L × W × H)199 × 98 × 38 mm
Technical weight0.7 kg

Protection and construction

  • Over-voltage protection: Yes
  • Over-voltage protection range: 13.8–16.2 V
  • Withstand voltage: 3 kVAC

Operating conditions and mechanical data

Dimensions (L × W × H): 199 × 98 × 38 mm; Technical weight: 0.7 kg.

Manufacturer datasheet

The complete source specification is available directly from the manufacturer: Official Mean Well datasheet — RS-150-SPEC 2024-11-22.

tm_RS-150-12

Data sheet

Power supply type
Constant Voltage (CV)
Rated power [W]
100,1-249
Output Voltage of CV power supply [V]
12
Maximum output current of CV led driver
12.5
Dimensions (L x W x H) [mm]
IP grade
20
Case type of power supply
Module / perforated case
Case material
Metal
Length [mm]
199
Grounding
Yes
Width [mm]
98
Height/thickness [mm]
38
Warranty [years]
3
Input voltage [V]
90-230
Interface
Screw terminals

Specific References

MPN
RS-150-12
