Mean Well IDPV-65-24 57.6 W PWM-output CV LED driver 24 V DC
Mean Well IDPV-65-24 57.6 W PWM-output CV LED driver 24 V DC – dimensions

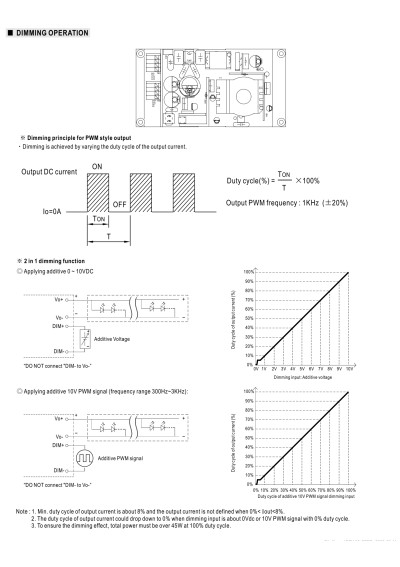

Mean Well IDPV-65-24 57.6 W PWM-output CV LED driver 24 V DC – dimming diagram

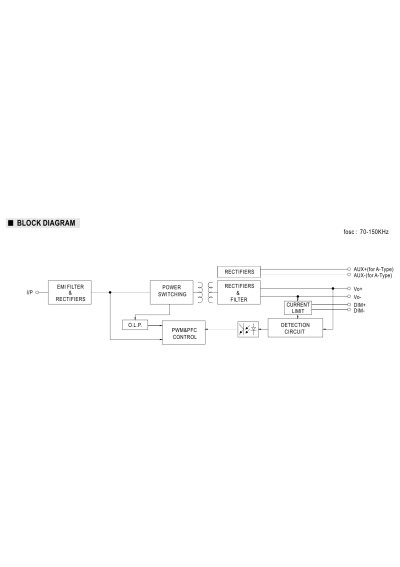

Mean Well IDPV-65-24 57.6 W PWM-output CV LED driver 24 V DC – block diagram

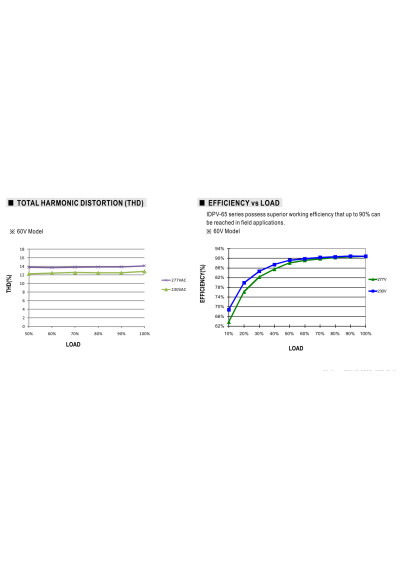

Mean Well IDPV-65-24 57.6 W PWM-output CV LED driver 24 V DC – efficiency versus load characteristic

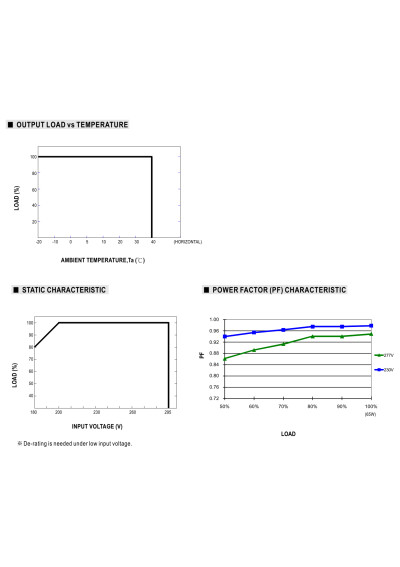

Mean Well IDPV-65-24 57.6 W PWM-output CV LED driver 24 V DC – load versus temperature characteristic

Mean Well IDPV-65-24 57.6W 24V LED Power Supply

Minimum order quantity: 1. Order in multiples of 1.
65.03 PLN
Shipment in 1-2 business days
Constant Voltage (CV)
tm_IDPV-65-24

Mean Well IDPV-65-24 is a 57.6 W, 24 V DC constant-voltage LED driver with PWM-modulated output.

Volume discounts

Quantity Discounted price
5+ 63.41 PLN
10+ 60.97 PLN
20+ 56.90 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

IDPV-65-24 – full product specification

Mean Well IDPV-65-24 is a IDPV-65-series power supply rated at 57.6 W. The parameters below come from the exact official manufacturer datasheet.

CV PWM output

The model supplies 24 V DC while brightness is represented by output PWM modulation.

Full technical specifications

Dimensions130 × 67.5 × 22 mm
Document revisionIDPV-65-SPEC 2022-02-18
Typical efficiency87 %
Input frequency47–63 Hz
Input range180–295 VAC / 254–417 VDC
Inrush current30 A
Output modulationPWM
Rated current2400 mA
Operating modeConstant Voltage (CV)
Output voltage24 V
Short-circuit protectionYes
Rated power57.6 W
Manufacturer warranty3 years
Weight0.15 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_IDPV-65-24

Data sheet

Power supply type
Constant Voltage (CV)
Rated power [W]
30,1-60
Output Voltage of CV power supply [V]
24
Length [mm]
130
Width [mm]
67.5
Height/thickness [mm]
22
Warranty [years]
3
Input voltage [V]
180-295

Specific References

EAN13
4711287462585
MPN
IDPV-65-24
