Mean Well HDR-150-15 142.5 W DIN-rail power supply 15 V DC Mean Well HDR-150-15 142.5 W DIN-rail power supply 15 V DC – dimensions Mean Well HDR-150-15 142.5 W DIN-rail power supply 15 V DC – block diagram
Mean Well HDR-150-15 142.5 W DIN-rail power supply 15 V DC
Mean Well HDR-150-15 142.5 W DIN-rail power supply 15 V DC – dimensions

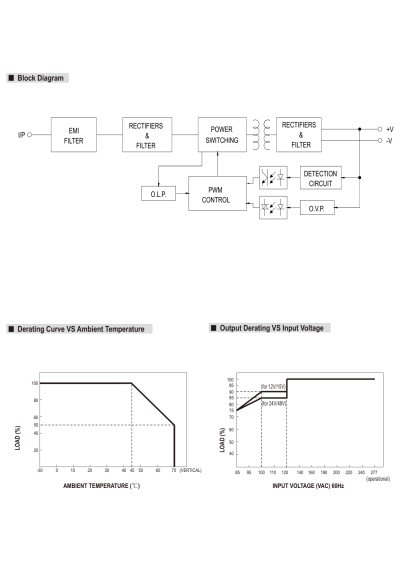

Mean Well HDR-150-15 142.5 W DIN-rail power supply 15 V DC – block diagram

Mean Well HDR-150-15 142.5W 15V LED Power Supply

Minimum order quantity: 1. Order in multiples of 1.
162.59 PLN
Shipment in 1-2 business days
Constant Voltage (CV)
tm_HDR-150-15

Mean Well HDR-150-15 is a 142.5 W, 15 V DC constant-voltage power supply for mounting on TS-35/7.5 or TS-35/15 DIN rail.

Volume discounts

Quantity Discounted price
5+ 154.46 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

HDR-150-15 – full product specification

Mean Well HDR-150-15 is a HDR-150-series power supply rated at 142.5 W. The parameters below come from the exact official manufacturer datasheet.

Output and mounting

The supply operates in CV mode. Its output can be set across 13.5 V–18 V, and the enclosure mounts on TS-35/7.5 or TS-35/15 DIN rail.

Full technical specifications

Coolingfree-air convection
Dimensions105 × 90 × 54.5 mm
Document revisionHDR-150-SPEC 2026-04-03
Typical efficiency89.5 %
hold_up_time230 vac ms: 30; 115 vac ms: 12
Input frequency47–63 Hz
Input range85–264 VAC / 120–370 VDC
Inrush current35 A
MountingTS-35/7.5 or TS-35/15 DIN rail
Operating temperature-30–70 °C
Rated current9500 mA
Operating modeConstant Voltage (CV)
Output ratings by input voltage115VAC: 8550 mA / 128.3 W; 230VAC: 9500 mA / 142.5 W
Maximum adjusted voltage18 V
Minimum adjusted voltage13.5 V
Output voltage15 V
Over-voltage protection range18.8–22.5 V
Over-voltage protectionYes
Rated power142.5 W
Manufacturer warranty3 years
Weight0.31 kg
Withstand voltage4 kVAC

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_HDR-150-15

Data sheet

Power supply type
Constant Voltage (CV)
Rated power [W]
100,1-249
Output Voltage of CV power supply [V]
15
Length [mm]
105
Width [mm]
90
Height/thickness [mm]
54.5
Warranty [years]
3
Input voltage [V]
85-264

Specific References

EAN13
4711287421858
MPN
HDR-150-15
New
