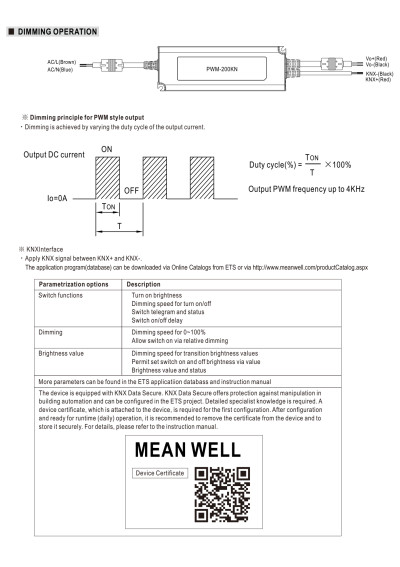

Mean Well PWM-200-24KN 199.2 W PWM-output CV LED driver 24 V DC – dimming diagram

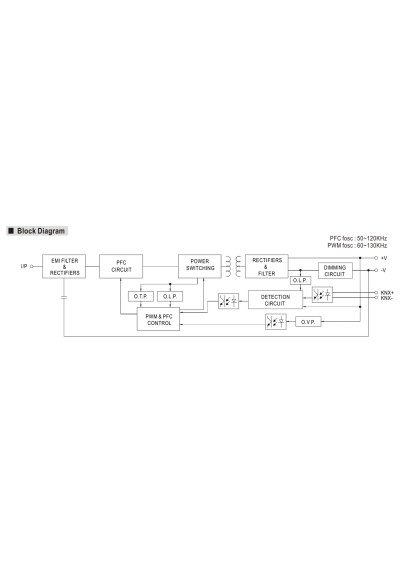

Mean Well PWM-200-24KN 199.2 W PWM-output CV LED driver 24 V DC – block diagram

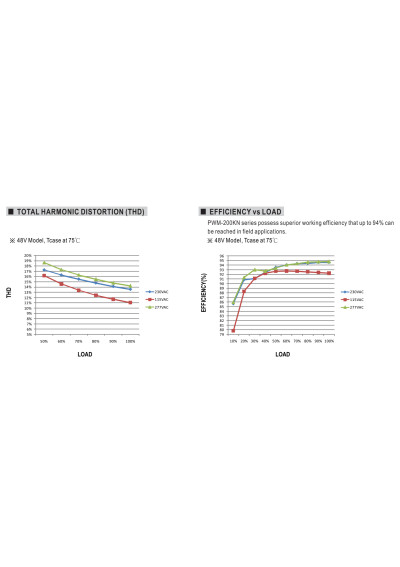

Mean Well PWM-200-24KN 199.2 W PWM-output CV LED driver 24 V DC – efficiency versus load characteristic

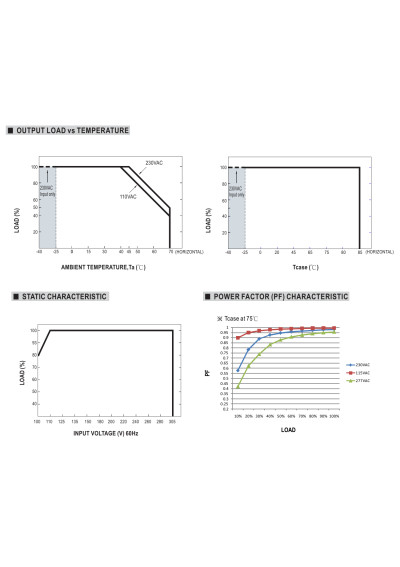

Mean Well PWM-200-24KN 199.2 W PWM-output CV LED driver 24 V DC – load versus temperature characteristic

Mean Well PWM-200-24KN 199.2W 24V LED Power Supply

Minimum order quantity: 1. Order in multiples of 1.
455.28 PLN
Shipment in 8-10 working days
Constant Voltage (CV)
tm_PWM-200-24KN

Mean Well PWM-200-24KN is a 199.2 W, 24 V DC constant-voltage LED driver with PWM-modulated output.

Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

PWM-200-24KN – full product specification

Mean Well PWM-200-24KN is a PWM-200-KN-series power supply rated at 199.2 W. The parameters below come from the exact official manufacturer datasheet.

CV PWM output

The model supplies 24 V DC while brightness is represented by output PWM modulation.

Full technical specifications

DALI controlYes
KNX controlYes
Dimensions195 × 68 × 39.5 mm
Document revisionPWM-200KN-SPEC 2026-02-04
Typical efficiency93 %
Input frequency47–63 Hz
Input range100–305 VAC / 142–431 VDC
Inrush current65 A
Output modulationPWM
Rated current8300 mA
Operating modeConstant Voltage (CV)
Output voltage24 V
Over-voltage protection range27–34 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power199.2 W
Manufacturer warranty5 years
Weight1.03 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_PWM-200-24KN

Data sheet

Power supply type
Constant Voltage (CV)
Rated power [W]
100,1-249
Output Voltage of CV power supply [V]
24
Length [mm]
195
Width [mm]
68
Height/thickness [mm]
39.5
Warranty [years]
5
Input voltage [V]
100-305

Specific References

EAN13
4711287463353
MPN
PWM-200-24KN
