Mean Well XLG-320-M-A 310.8 W constant-power LED driver

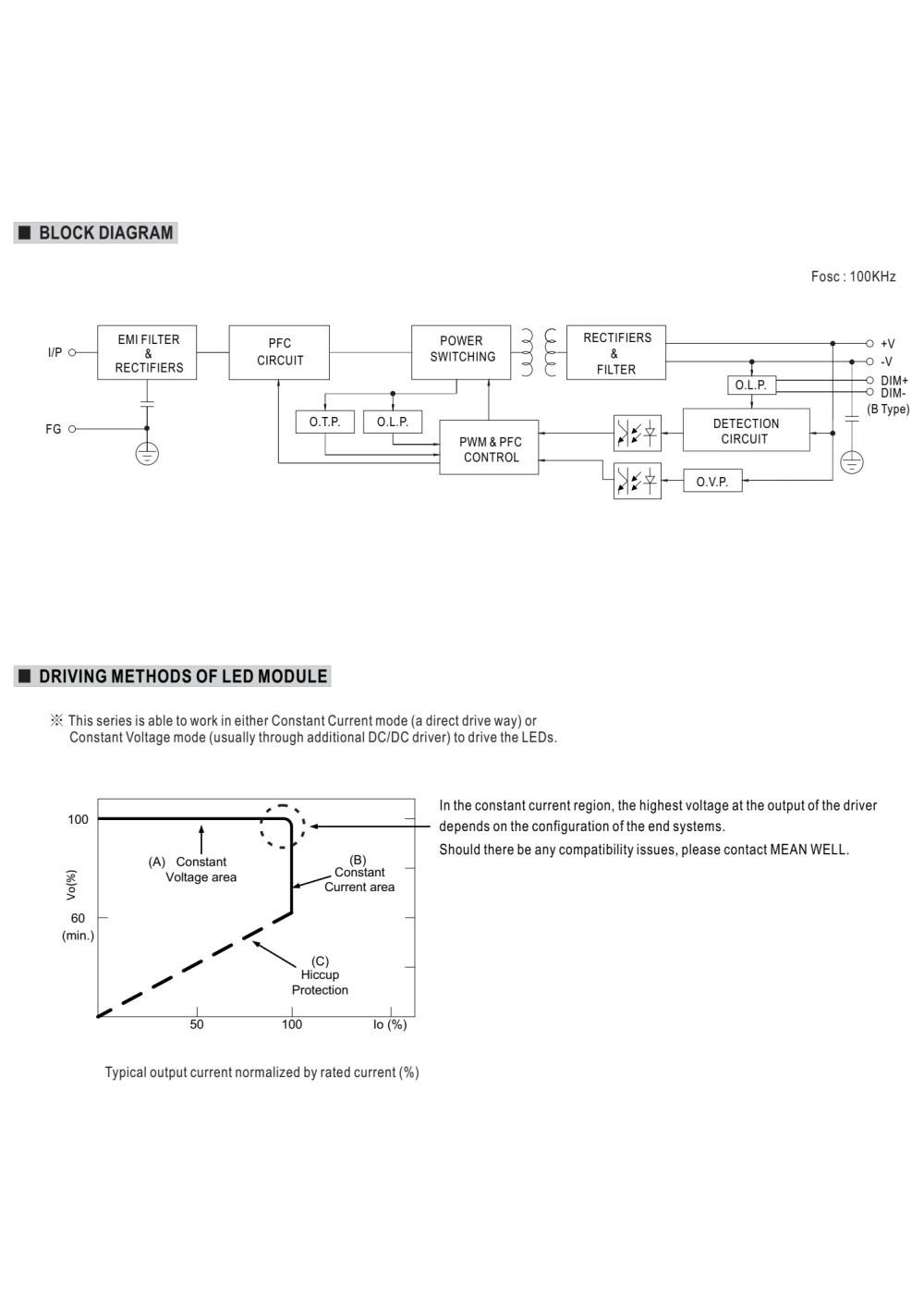

Mean Well XLG-320-M-A 310.8 W constant-power LED driver – block diagram

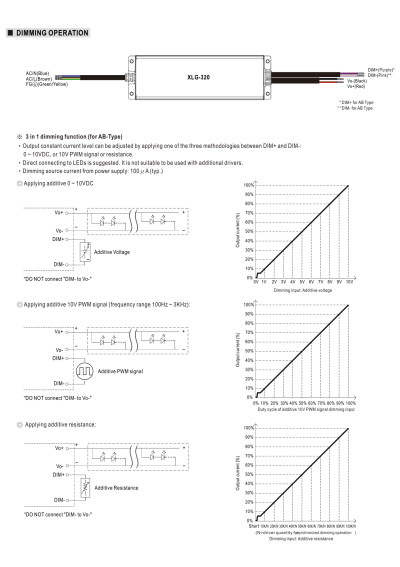

Mean Well XLG-320-M-A 310.8 W constant-power LED driver – dimming diagram

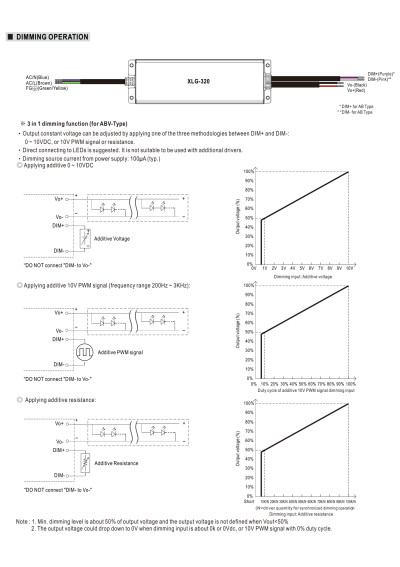

Mean Well XLG-320-M-A 310.8 W constant-power LED driver – dimming diagram

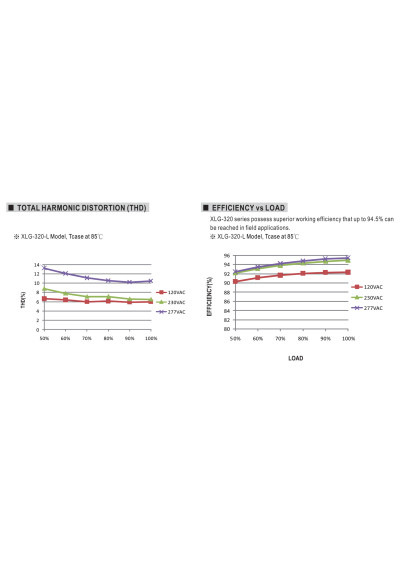

Mean Well XLG-320-M-A 310.8 W constant-power LED driver – efficiency versus load characteristic

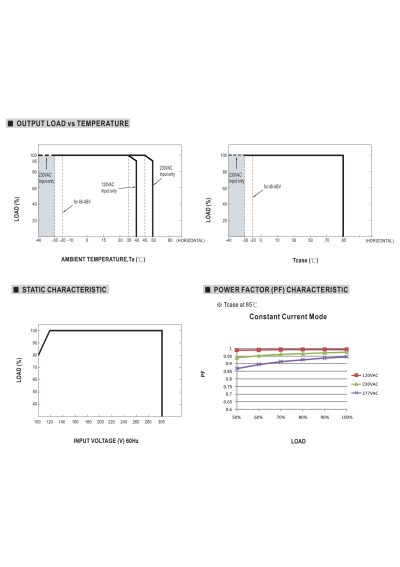

Mean Well XLG-320-M-A 310.8 W constant-power LED driver – load versus temperature characteristic

Mean Well XLG-320-M-A 310.8 W constant-power LED driver

Minimum order quantity: 1. Order in multiples of 1.
284.54 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_XLG-320-M-A

Mean Well XLG-320-M-A is a 310.8 W constant-power LED driver with a 2100 mA–2800 mA current-setting envelope.

Volume discounts

Quantity Discounted price
5+ 268.28 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

XLG-320-M-A – full product specification

Mean Well XLG-320-M-A is a XLG-320-series power supply rated at 310.8 W. The parameters below come from the exact official manufacturer datasheet.

Constant-power characteristic

Full power is available across a 2100 mA–2800 mA current envelope and 150 V–300 V DC voltage region.

Full technical specifications

3-in-1 dimmingYes
current_ripple_pct5 %
Dimensions246 × 77 × 39.5 mm
Document revisionXLG-320-SPEC 2026-02-04
Typical efficiency93.5 %
Input frequency47–63 Hz
Inrush current45 A
IP ratingIP67
Rated current2800 mA
Maximum adjustable current2800 mA
Minimum adjustable current2100 mA
Operating modeConstant voltage + constant current (CV+CC)
CC-region maximum voltage300 V
CC-region minimum voltage150 V
Output voltage52.8 V
Over-voltage protection range190–220 V
Constant-power characteristicYes
Over-voltage protectionYes
Short-circuit protectionYes
Rated power310.8 W
Manufacturer warranty5 years
Weight1.45 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_XLG-320-M-A

Data sheet

Power supply type
CV+CC
Rated power [W]
250-499
IP grade
67
Length [mm]
246
Width [mm]
77
Height/thickness [mm]
39.5
Warranty [years]
5
Min. current of CC driver [mA]
2100
Max. current of CC driver [mA]
2800

Specific References

EAN13
4711287482347
MPN
XLG-320-M-A
