Mean Well LCM-25DA 25.2W 350–1050mA Constant Current (CC) LED driver
Mean Well LCM-25DA is a 25.2 W constant-current LED driver with DIP-selectable output from 350 mA to 1050 mA; each setting has its own valid voltage range.
Mean Well LCM-25DA 25.2W 350–1050mA Constant Current (CC) LED driver
Minimum order quantity: 1. Order in multiples of 1.
138.20 PLN
Shipment in 1-2 business days
tm_LCM-25DA
Mean Well LCM-25DA is a 25.2 W constant-current LED driver with DIP-selectable output from 350 mA to 1050 mA; each setting has its own valid voltage range.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LCM-25DA – full product specification
Mean Well LCM-25DA is an LED power supply from the LCM-25DA series with a 25.2 W rated output. The verified manufacturer datasheet data below supports correct circuit and operating-condition selection.
Current selection and operating range
This constant-current driver provides DIP-selectable output from 350 mA to 1050 mA. Every setting has its own valid voltage range; the overall extremes are not one universal operating window.

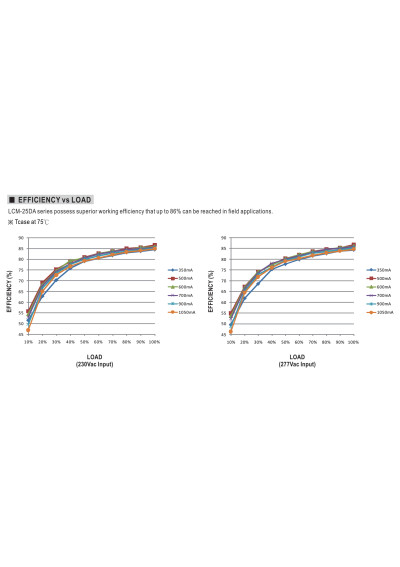

Input and efficiency
The specified input range is 180–277 VAC / 254–380 VDC. The input frequency range is 47–63 Hz.
DIP-switch output settings
| Output current | Operating voltage range | Power / power limit |
|---|---|---|
| 350 mA | 6–54 V DC | 18.9 W |
| 500 mA | 6–50 V DC | 25 W |
| 600 mA | 6–42 V DC | 25.2 W |
| 700 mA | 6–36 V DC | 25.2 W |
| 900 mA | 6–28 V DC | 25.2 W |
| 1050 mA | 6–24 V DC | 25.2 W |
Full technical specifications
| Manufacturer | Mean Well |
|---|---|
| Series | LCM-25DA |
| Model | LCM-25DA |
| Operating mode | Constant Current (CC) |
| Rated power | 25.2 W |
| Minimum output current | 350 mA |
| Maximum output current | 1050 mA |
| Input voltage range | 180–277 VAC / 254–380 VDC |
| Input frequency | 47–63 Hz |
| Current ripple | 5 % |
| Inrush current | 20 A |
| DALI control | Yes |
| PUSH dimming | Yes |
| Short-circuit protection | Yes |
| Dimensions (L × W × H) | 105 × 68 × 23 mm |
| Manufacturer warranty | 3 years |
Protection and construction
- Short-circuit protection: Yes
Operating conditions and mechanical data
Dimensions (L × W × H): 105 × 68 × 23 mm; Manufacturer warranty: 3 years.
Manufacturer datasheet
The complete source specification is available directly from the manufacturer: Official Mean Well datasheet — LCM-25DA-SPEC 2026-02-09.
Manufacturer lifecycle information: Mean Well lists LCM-25DA as EOL effective 2026.07 and names LCM-25DA2 as successor models or families; this does not imply automatic 1:1 electrical interchangeability.
tm_LCM-25DA
Data sheet
- Power supply type
- Constant Current (CC)
- Rated power [W]
- 20,1-30
- Dimming / Control
- DALI
- Dimensions (L x W x H) [mm]
- IP grade
- 20
- Case type of power supply
- Isolated / secured
- Case material
- Plastic
- Length [mm]
- 105
- Width [mm]
- 68
- Height/thickness [mm]
- 23
- Warranty [years]
- 3
- Input voltage [V]
- 180-277
- Interface
- Protected / closed screw terminals
- Working temperature
- - 30°C + 60°C
- Min. current of CC driver [mA]
- 350
- Max. current of CC driver [mA]
- 1050
Specific References
- MPN
- LCM-25DA
