Mean Well XLG-200-12-A 192 W 12 V DC adjustable CV+CC LED driver IP67
Mean Well XLG-200-12-A is a 192 W, 12 V DC CV+CC LED driver with 8000 mA–16000 mA current adjustment by an internal potentiometer and an IP67 enclosure.
Mean Well XLG-200-12-A 192 W 12 V DC adjustable CV+CC LED driver IP67
Minimum order quantity: 1. Order in multiples of 1.
170.72 PLN
Shipment in 8-10 working days
tm_XLG-200-12-A
Mean Well XLG-200-12-A is a 192 W, 12 V DC CV+CC LED driver with 8000 mA–16000 mA current adjustment by an internal potentiometer and an IP67 enclosure.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
XLG-200-12-A – full product specification
Mean Well XLG-200-12-A is a XLG-200-series power supply rated at 192 W. The parameters below come from the exact official manufacturer datasheet.
CV+CC operation and adjustment
The A-type variant adjusts the current level across 8000 mA–16000 mA with an internal potentiometer. Its constant-current region is 8.4 V–12 V DC; the output is not one fixed-current value.
Full technical specifications
| Adjustment method | internal potentiometers |
|---|---|
| Enclosure material | metal |
| Cooling | free-air convection |
| Dimensions | 199 × 63 × 35.5 mm |
| Document revision | XLG-200-SPEC 2026-02-04 |

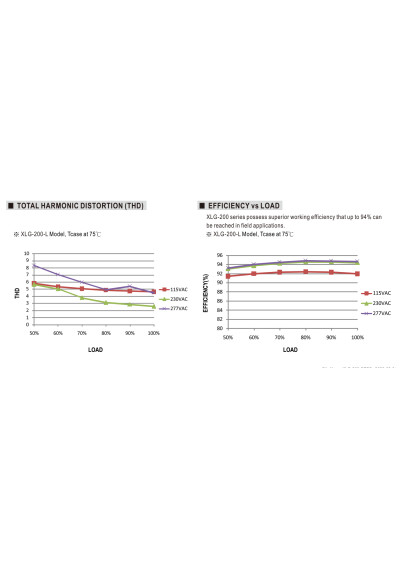

| Typical efficiency | 92 % |
| Input frequency | 47–63 Hz |
| Input range | 100–305 VAC / 142–431 VDC |
| Inrush current | 65 A |
| IP rating | IP67 |
| Leakage current | 0.75 mA |
| Operating temperature | -40–90 °C |
| Rated current | 16000 mA |
| Maximum adjustable current | 16000 mA |
| Minimum adjustable current | 8000 mA |
| Operating mode | Constant voltage + constant current (CV+CC) |
| CC-region maximum voltage | 12 V |
| CC-region minimum voltage | 8.4 V |
| Output voltage | 12 V |
| Power factor | PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load |
| Over-temperature protection | Yes |
| Over-voltage protection | Yes |
| Short-circuit protection | Yes |
| Rated power | 192 W |
| THD | THD< 10%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) |
| Manufacturer warranty | 5 years |
| Weight | 0.85 kg |
Manufacturer datasheet
Complete source specification: official Mean Well datasheet.
tm_XLG-200-12-A
Data sheet
- Power supply type
- CV+CC
- Rated power [W]
- 100,1-249
- IP grade
- 67
- Length [mm]
- 199
- Width [mm]
- 63
- Height/thickness [mm]
- 35.5
- Warranty [years]
- 5
- Input voltage [V]
- 100-305
- Min. current of CC driver [mA]
- 8000
- Max. current of CC driver [mA]
- 16000
Specific References
- EAN13
- 4711287457284
- MPN
- XLG-200-12-A
