Mean Well HLG-320H-24B 320.16 W CV+CC LED driver
Mean Well HLG-320H-24B 320.16 W CV+CC LED driver – dimensions

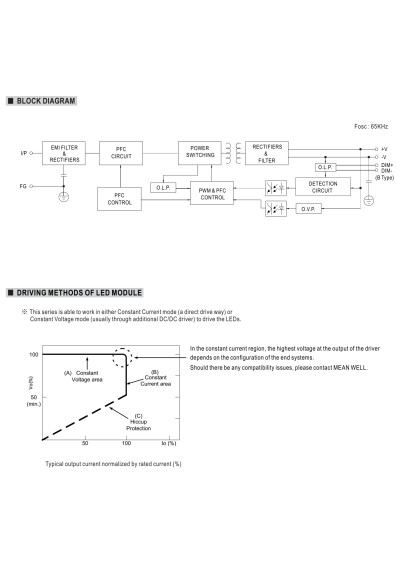

Mean Well HLG-320H-24B 320.16 W CV+CC LED driver – block diagram

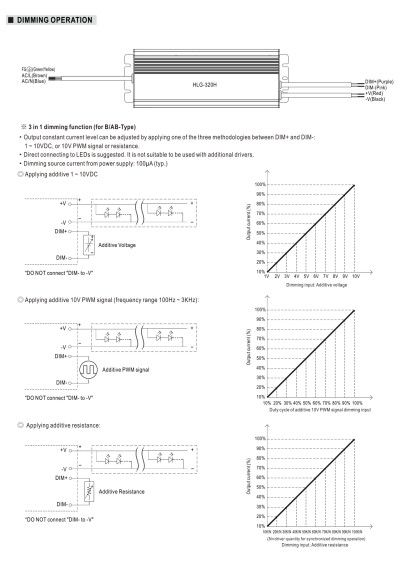

Mean Well HLG-320H-24B 320.16 W CV+CC LED driver – dimming diagram

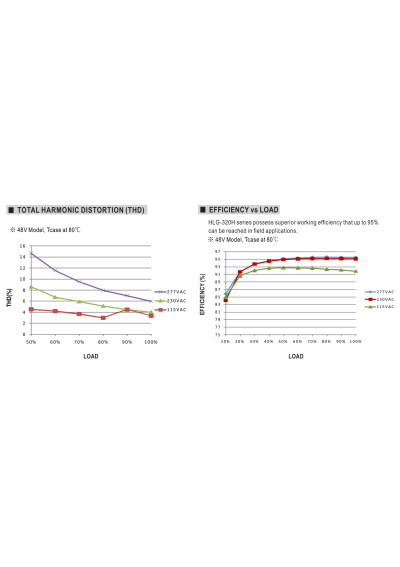

Mean Well HLG-320H-24B 320.16 W CV+CC LED driver – efficiency versus load characteristic

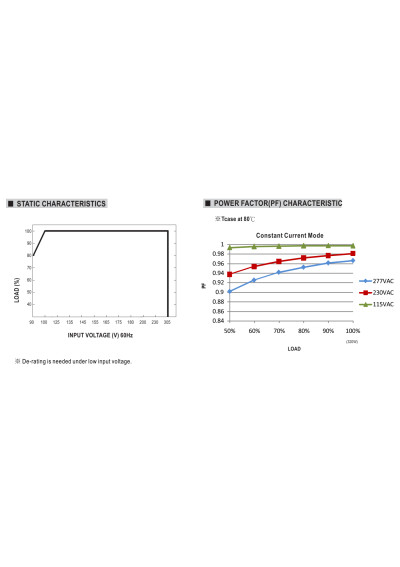

Mean Well HLG-320H-24B 320.16 W CV+CC LED driver – static characteristic

Mean Well HLG-320H-24B 320.16 W CV+CC LED driver

Minimum order quantity: 1. Order in multiples of 1.
447.15 PLN
Shipment in 1-2 business days
Constant Current (CC)
tm_HLG-320H-24B

Mean Well HLG-320H-24B is a 320.16 W CV+CC LED driver with a 12 V–24 V constant-current region.

Volume discounts

Quantity Discounted price
5+ 422.76 PLN
10+ 406.50 PLN
20+ 382.11 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

HLG-320H-24B – full product specification

Mean Well HLG-320H-24B is a HLG-320H-series power supply rated at 320.16 W. The parameters below come from the exact official manufacturer datasheet.

CV+CC operation

The driver combines voltage regulation and current limiting; its constant-current region is 12 V–24 V DC.

Full technical specifications

3-in-1 dimmingYes
Dimensions252 × 90 × 43.8 mm
Document revisionHLG-320H-SPEC 2026-02-04
Typical efficiency94 %
Input frequency47–63 Hz
Input range90–305 VAC / 127–431 VDC
Inrush current70 A
IP ratingIP65
Rated current13340 mA
Operating modeConstant voltage + constant current (CV+CC)
CC-region maximum voltage24 V
CC-region minimum voltage12 V
Output voltage24 V
Over-voltage protection range27–33 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power320.16 W
Manufacturer warranty7 years
Weight1.88 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_HLG-320H-24B

Data sheet

Power supply type
CV+CC
Rated power [W]
250-499
Output Current of CC power supply [mA]
13340
CC operating window
12-24
Min. output voltage of led driver (CC)
12
Max. output voltage of led driver (CC)
24
IP grade
65
Length [mm]
252
Width [mm]
90
Height/thickness [mm]
43.8
Warranty [years]
7
Input voltage [V]
90-305

Specific References

EAN13
4711287451022
MPN
HLG-320H-24B
