Mean Well NPF-60D-54 60.48 W CV+CC LED driver
Mean Well NPF-60D-54 60.48 W CV+CC LED driver – dimensions

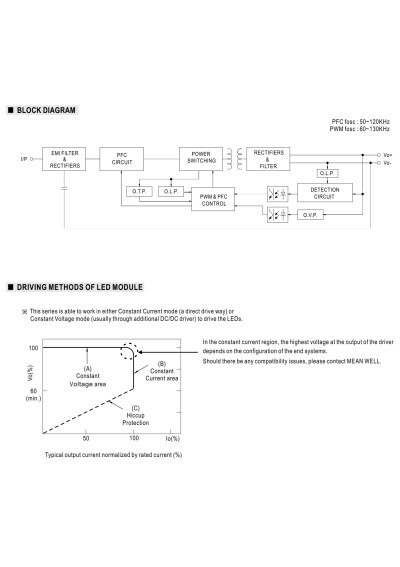

Mean Well NPF-60D-54 60.48 W CV+CC LED driver – block diagram

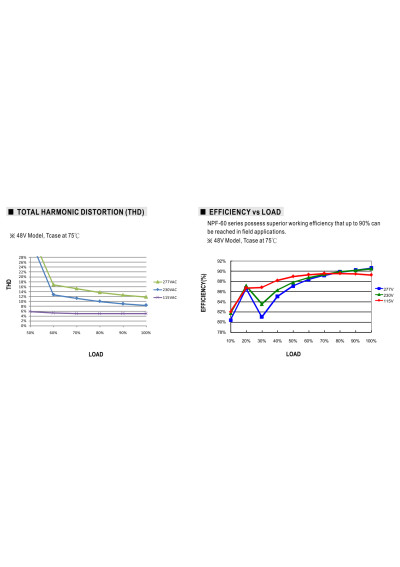

Mean Well NPF-60D-54 60.48 W CV+CC LED driver – efficiency versus load characteristic

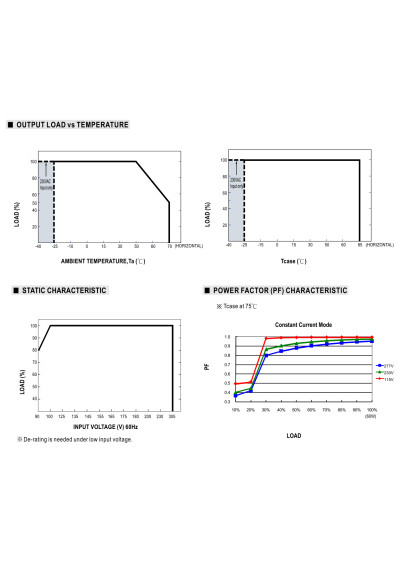

Mean Well NPF-60D-54 60.48 W CV+CC LED driver – load versus temperature characteristic

Mean Well NPF-60D-54 60.48 W CV+CC LED driver

Minimum order quantity: 1. Order in multiples of 1.
130.07 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_NPF-60D-54

Mean Well NPF-60D-54 is a 60.48 W CV+CC LED driver with a 32.4 V–54 V constant-current region.

Volume discounts

Quantity Discounted price
5+ 121.94 PLN
20+ 113.81 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

NPF-60D-54 – full product specification

Mean Well NPF-60D-54 is a NPF-60-series power supply rated at 60.48 W. The parameters below come from the exact official manufacturer datasheet.

CV+CC operation

The driver combines voltage regulation and current limiting; its constant-current region is 32.4 V–54 V DC.

Full technical specifications

Dimensions150 × 53 × 35 mm
Document revisionNPF-60-SPEC 2026-02-09
Typical efficiency90 %
hold_up_time230 vac ms: 16; 115 vac ms: 16
Input frequency47–63 Hz
Input range90–305 VAC / 127–431 VDC
Inrush current50 A
IP ratingIP67
Rated current1120 mA
Operating modeConstant voltage + constant current (CV+CC)
CC-region maximum voltage54 V
CC-region minimum voltage32.4 V
Output voltage54 V
Over-voltage protection range59–66 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power60.48 W
Manufacturer warranty5 years
Weight0.49 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_NPF-60D-54

Data sheet

Power supply type
CV+CC
Rated power [W]
30,1-60
Output Current of CC power supply [mA]
1120
CC operating window
32.4-54
Min. output voltage of led driver (CC)
32.4
Max. output voltage of led driver (CC)
54
IP grade
67
Length [mm]
150
Width [mm]
53
Height/thickness [mm]
35
Warranty [years]
5
Input voltage [V]
90-305

Specific References

EAN13
4711287459646
MPN
NPF-60D-54
