Mean Well LPF-16D-30 16.2 W CV+CC LED driver Mean Well LPF-16D-30 16.2 W CV+CC LED driver – dimensions Mean Well LPF-16D-30 16.2 W CV+CC LED driver – block diagram Mean Well LPF-16D-30 16.2 W CV+CC LED driver – dimming diagram Mean Well LPF-16D-30 16.2 W CV+CC LED driver – efficiency versus load characteristic Mean Well LPF-16D-30 16.2 W CV+CC LED driver – load versus temperature characteristic
Mean Well LPF-16D-30 16.2 W CV+CC LED driver
Mean Well LPF-16D-30 16.2 W CV+CC LED driver – dimensions

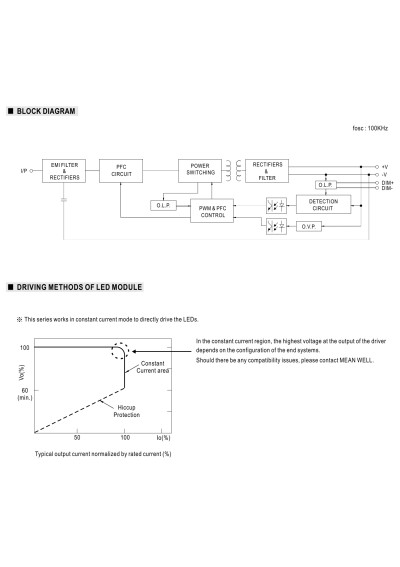

Mean Well LPF-16D-30 16.2 W CV+CC LED driver – block diagram

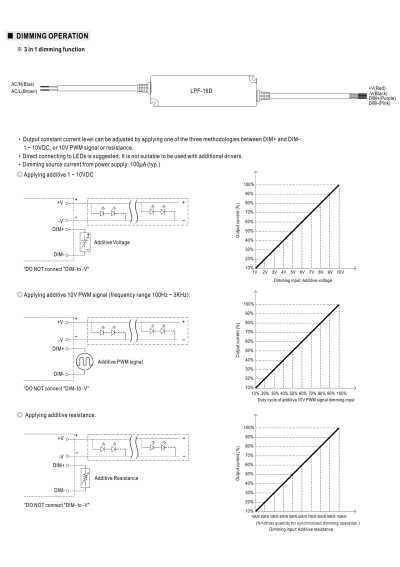

Mean Well LPF-16D-30 16.2 W CV+CC LED driver – dimming diagram

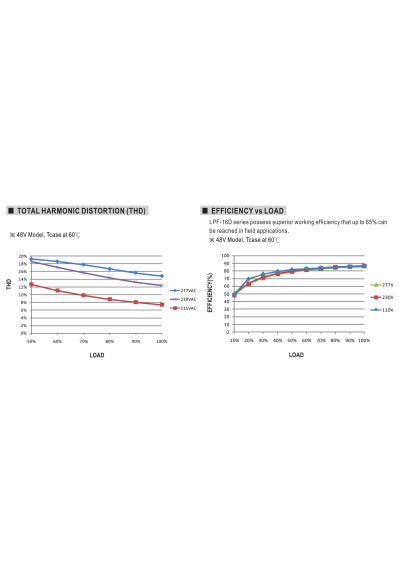

Mean Well LPF-16D-30 16.2 W CV+CC LED driver – efficiency versus load characteristic

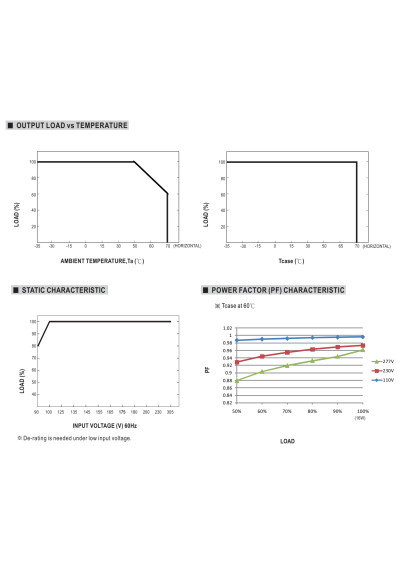

Mean Well LPF-16D-30 16.2 W CV+CC LED driver – load versus temperature characteristic

Mean Well LPF-16D-30 16.2 W CV+CC LED driver

Minimum order quantity: 1. Order in multiples of 1.
97.55 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_LPF-16D-30

Mean Well LPF-16D-30 is a 16.2 W CV+CC LED driver with a 16.5 V–30 V constant-current region.

Volume discounts

Quantity Discounted price
10+ 89.42 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

LPF-16D-30 – full product specification

Mean Well LPF-16D-30 is a LPF-16D-series power supply rated at 16.2 W. The parameters below come from the exact official manufacturer datasheet.

CV+CC operation

The driver combines voltage regulation and current limiting; its constant-current region is 16.5 V–30 V DC.

Full technical specifications

3-in-1 dimmingYes
current_ripple_pct5 %
Dimensions148 × 40 × 32 mm
Document revisionLPF-16D-SPEC 2026-02-09
Typical efficiency84.5 %
hold_up_time230 vac ms: 16; 115 vac ms: 16
Input frequency47–63 Hz
Input range90–305 VAC / 127–431 VDC
Inrush current45 A
IP ratingIP30
Rated current540 mA
Operating modeConstant voltage + constant current (CV+CC)
CC-region maximum voltage30 V
CC-region minimum voltage16.5 V
Output voltage30 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power16.2 W
Manufacturer warranty5 years
Weight0.21 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_LPF-16D-30

Data sheet

Power supply type
CV+CC
Rated power [W]
15,1-20
Output Current of CC power supply [mA]
540
CC operating window
16.5-30
Min. output voltage of led driver (CC)
16.5
Max. output voltage of led driver (CC)
30
IP grade
30
Length [mm]
148
Width [mm]
40
Height/thickness [mm]
32
Warranty [years]
5
Input voltage [V]
90-305

Specific References

EAN13
4711287440750
MPN
LPF-16D-30
