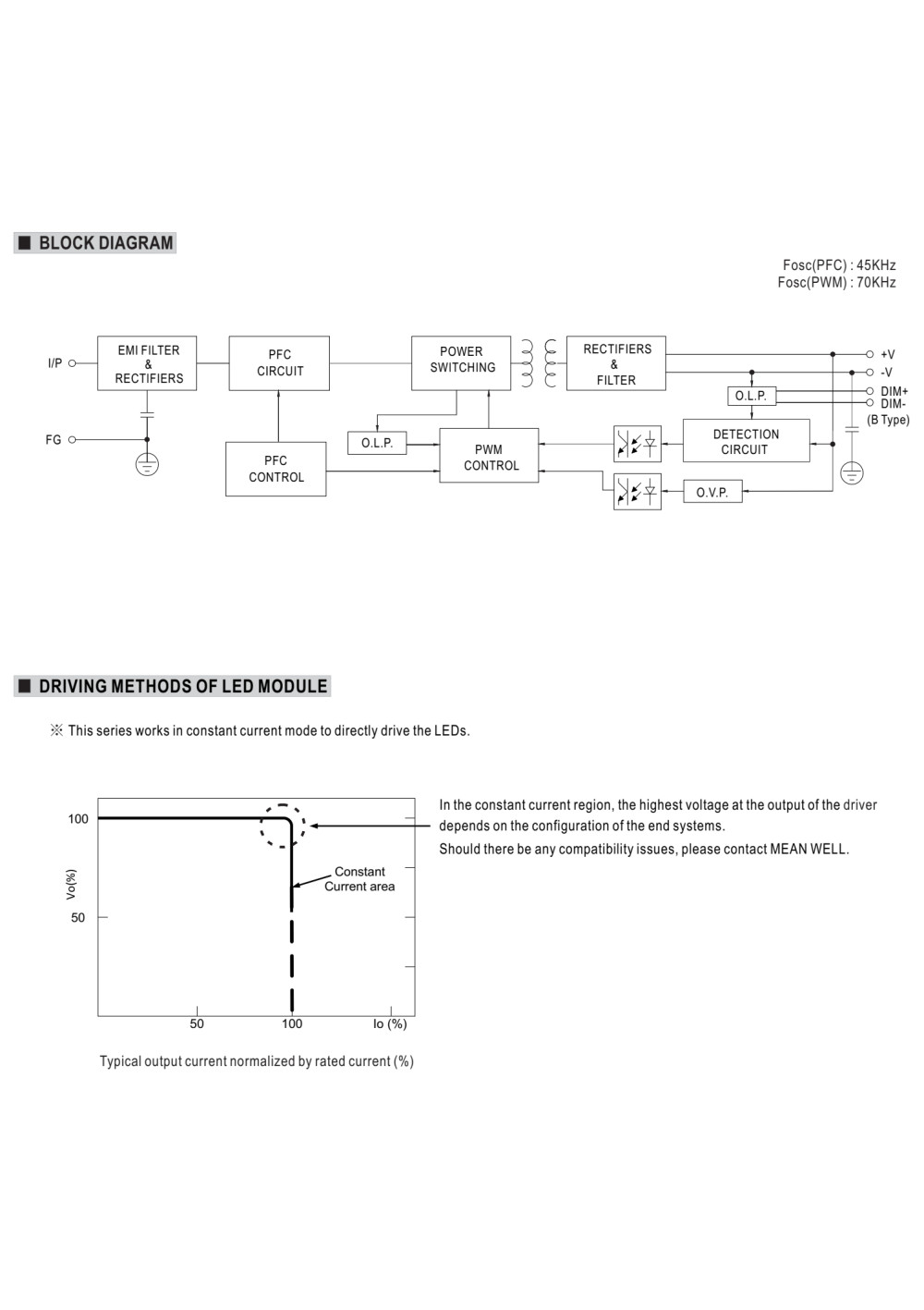

Mean Well SLD-80-56 78.4 W constant-power LED driver – block diagram
Mean Well SLD-80-56 78.4 W constant-power LED driver – efficiency versus load characteristic

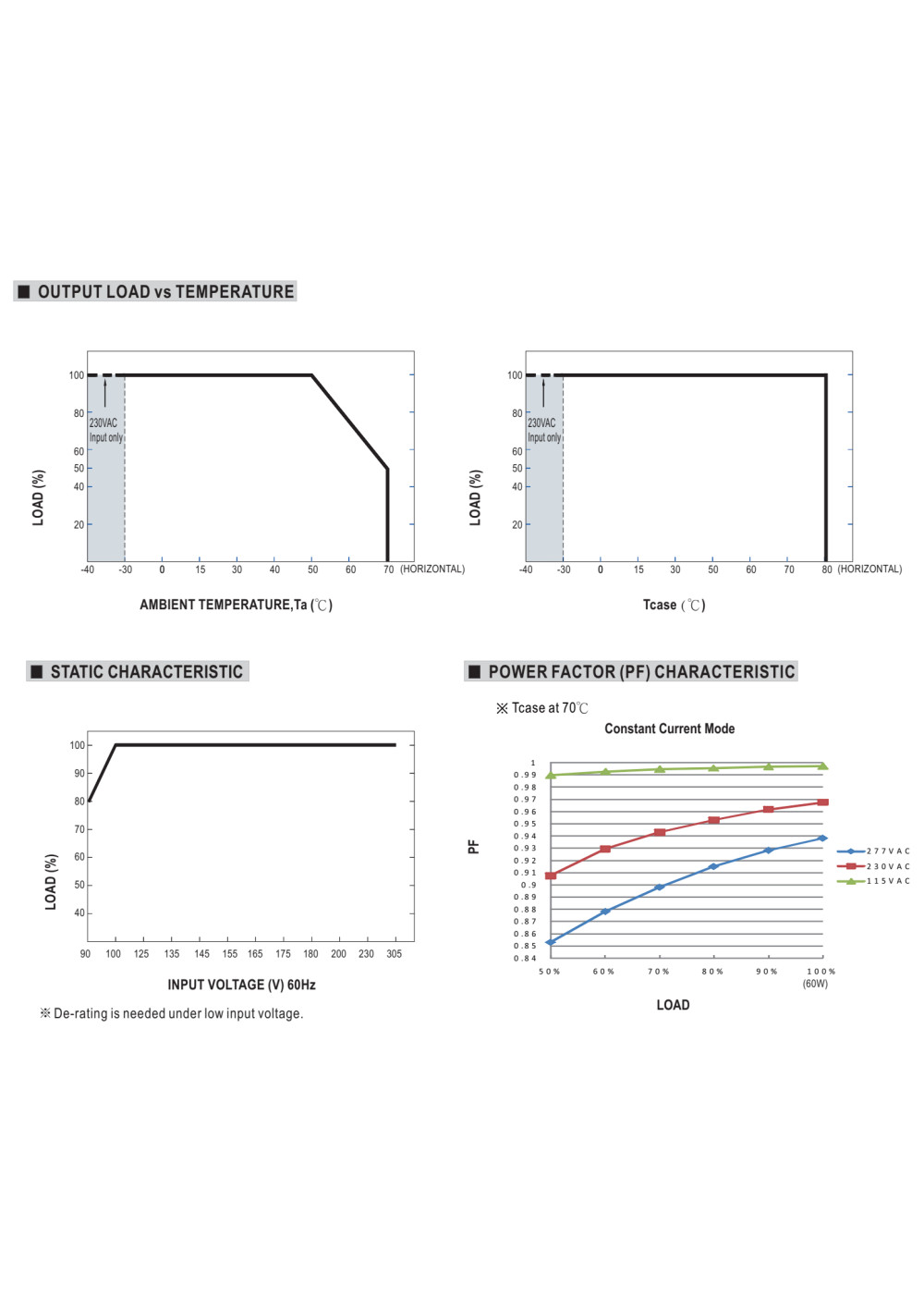

Mean Well SLD-80-56 78.4 W constant-power LED driver – load versus temperature characteristic

Mean Well SLD-80-56 78.4 W constant-power LED driver

Minimum order quantity: 1. Order in multiples of 1.
113.81 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_SLD-80-56

Mean Well SLD-80-56 is a 78.4 W constant-power LED driver with a 1400 mA–2100 mA current-setting envelope.

Volume discounts

Quantity Discounted price
10+ 105.68 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

SLD-80-56 – full product specification

Mean Well SLD-80-56 is a SLD-80-series power supply rated at 78.4 W. The parameters below come from the exact official manufacturer datasheet.

Constant-power characteristic

Full power is available across a 1400 mA–2100 mA current envelope and 30 V–56 V DC voltage region.

Full technical specifications

current_ripple_pct5 %
Dimensions320 × 30 × 16.8 mm
Document revisionSLD-80-SPEC 2026-02-09
Typical efficiency92 %
hold_up_time230 vac ms: 10; 115 vac ms: 10
Input frequency47–63 Hz
Input range110–305 VAC / 155–431 VDC
Inrush current50 A
Rated current1400 mA
Maximum adjustable current2100 mA
Minimum adjustable current1400 mA
Operating modeConstant voltage + constant current (CV+CC)
CC-region maximum voltage56 V
CC-region minimum voltage30 V
Output voltage12 V
Over-voltage protection range60–70 V
Constant-power characteristicYes
Over-voltage protectionYes
Short-circuit protectionYes
Rated power78.4 W
Manufacturer warranty3 years

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_SLD-80-56

Data sheet

Power supply type
CV+CC
Rated power [W]
60,1-100
Length [mm]
320
Width [mm]
30
Height/thickness [mm]
16.8
Warranty [years]
3
Input voltage [V]
110-305
Min. current of CC driver [mA]
1400
Max. current of CC driver [mA]
2100

Specific References

EAN13
4711287457628
MPN
SLD-80-56
