Mean Well HLG-240H-15B 225 W CV+CC LED driver Mean Well HLG-240H-15B 225 W CV+CC LED driver – dimensions Mean Well HLG-240H-15B 225 W CV+CC LED driver – block diagram Mean Well HLG-240H-15B 225 W CV+CC LED driver – dimming diagram Mean Well HLG-240H-15B 225 W CV+CC LED driver – efficiency versus load characteristic Mean Well HLG-240H-15B 225 W CV+CC LED driver – static characteristic
Mean Well HLG-240H-15B 225 W CV+CC LED driver
Mean Well HLG-240H-15B 225 W CV+CC LED driver – dimensions

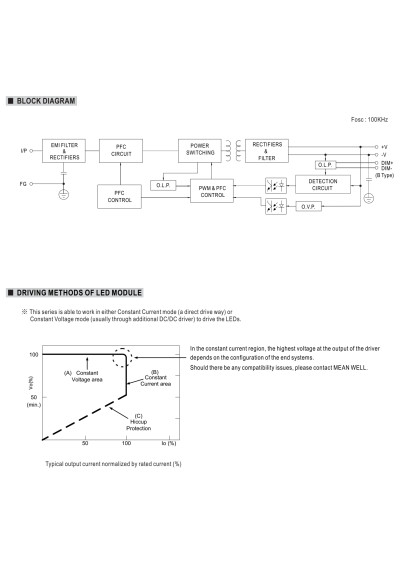

Mean Well HLG-240H-15B 225 W CV+CC LED driver – block diagram

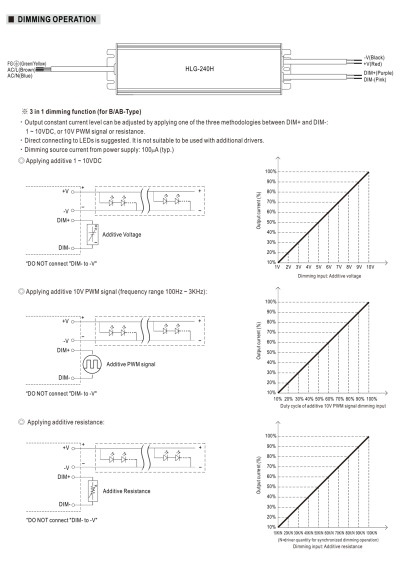

Mean Well HLG-240H-15B 225 W CV+CC LED driver – dimming diagram

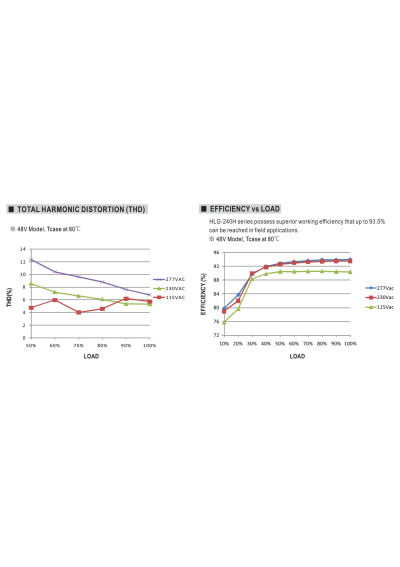

Mean Well HLG-240H-15B 225 W CV+CC LED driver – efficiency versus load characteristic

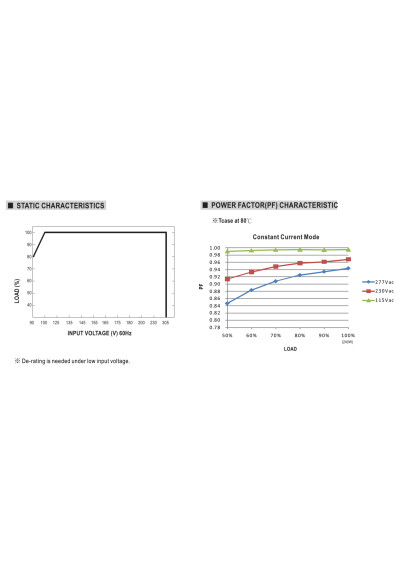

Mean Well HLG-240H-15B 225 W CV+CC LED driver – static characteristic

Mean Well HLG-240H-15B 225 W CV+CC LED driver

Minimum order quantity: 1. Order in multiples of 1.
325.20 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_HLG-240H-15B

Mean Well HLG-240H-15B is a 225 W CV+CC LED driver with a 7.5 V–15 V constant-current region.

Volume discounts

Quantity Discounted price
5+ 317.07 PLN
10+ 300.80 PLN
20+ 284.54 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

HLG-240H-15B – full product specification

Mean Well HLG-240H-15B is a HLG-240H-series power supply rated at 225 W. The parameters below come from the exact official manufacturer datasheet.

CV+CC operation

The driver combines voltage regulation and current limiting; its constant-current region is 7.5 V–15 V DC.

Full technical specifications

3-in-1 dimmingYes
Dimensions244.2 × 68 × 38.8 mm
Document revisionHLG-240H-SPEC 2026-02-04
Typical efficiency90 %
Input frequency47–63 Hz
Input range90–305 VAC / 127–431 VDC
Inrush current75 A
IP ratingIP65
Rated current15000 mA
Operating modeConstant voltage + constant current (CV+CC)
CC-region maximum voltage15 V
CC-region minimum voltage7.5 V
Output voltage15 V
Over-voltage protection range17.5–21.5 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power225 W
Manufacturer warranty7 years
Weight1.3 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_HLG-240H-15B

Data sheet

Power supply type
CV+CC
Rated power [W]
100,1-249
Output Current of CC power supply [mA]
15000
CC operating window
7.5-15
Min. output voltage of led driver (CC)
7.5
Max. output voltage of led driver (CC)
15
IP grade
65
Length [mm]
244.2
Width [mm]
68
Height/thickness [mm]
38.8
Warranty [years]
7
Input voltage [V]
90-305

Specific References

EAN13
4711287450445
MPN
HLG-240H-15B
