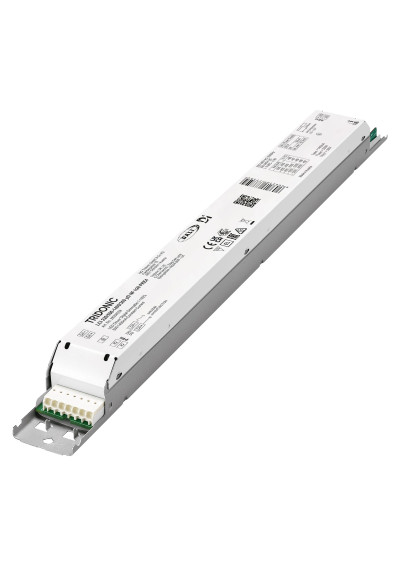

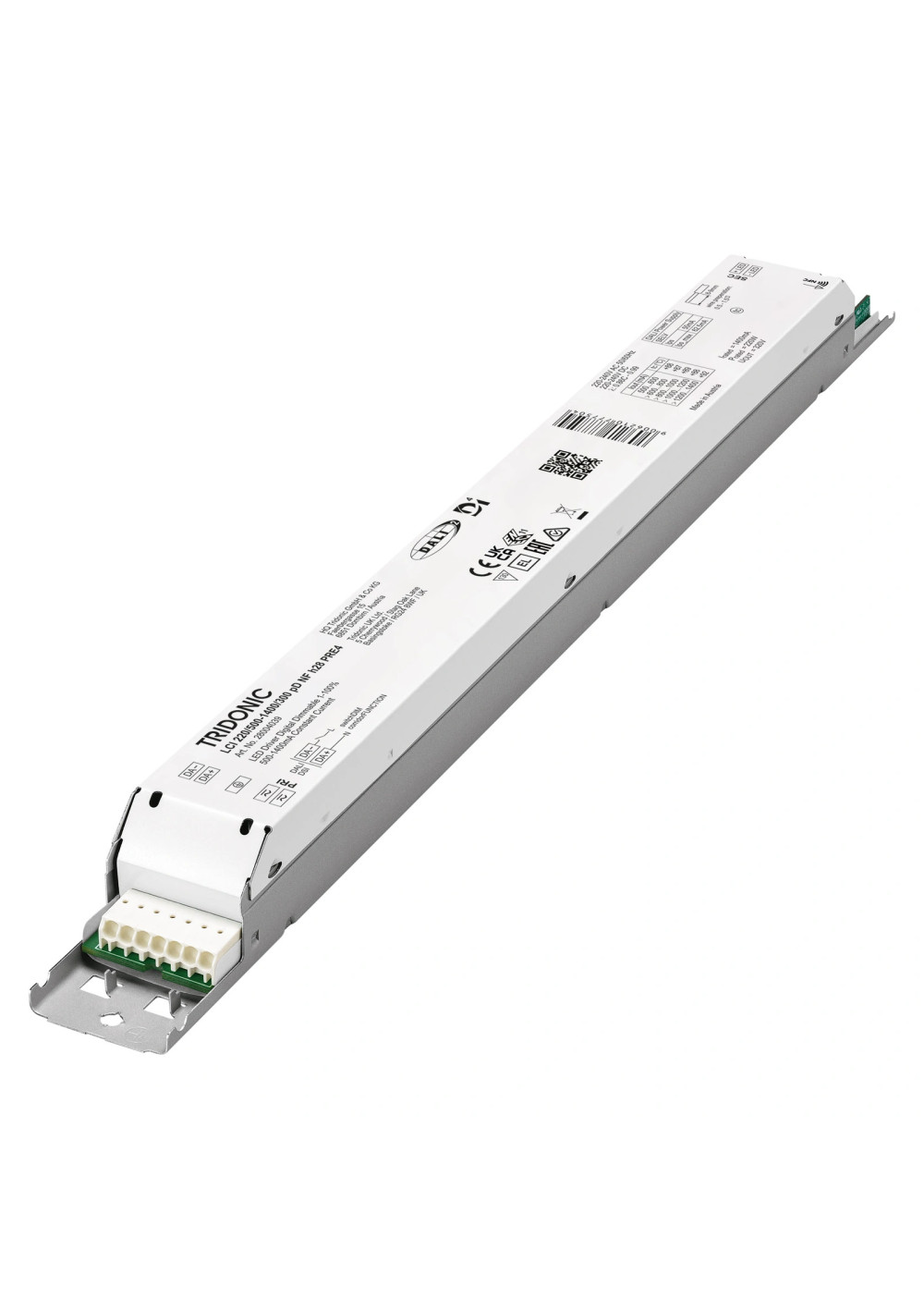

LED power supply Tridonic LCI 220/500-1400/300 pD NF h28 PRE4
LED power supply Tridonic LCI 220W 500-1400mA 300V pD NF h28 PRE4 is a constant current LED driver rated up to 220 W. Values for individual settings are shown in the operating-point table. Documented interfaces and configuration methods: DALI, NFC, switchDIM.
LED power supply Tridonic LCI 220/500-1400/300 pD NF h28 PRE4
562.00 PLN
Shipment in 1-2 business days
zas_tridonic_28004039
LED power supply Tridonic LCI 220W 500-1400mA 300V pD NF h28 PRE4 is a constant current LED driver rated up to 220 W. Values for individual settings are shown in the operating-point table. Documented interfaces and configuration methods: DALI, NFC, switchDIM.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LED power supply Tridonic LCI 220W 500-1400mA 300V pD NF h28 PRE4 is a constant current LED driver in the Driver LCI 220W 500-1400mA pD NF h28 PRE4 (INDUSTRY) family. Official article number 28004039 identifies this physical version.
Key properties
Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.
Technical specifications
| Manufacturer article number | 28004039 |
|---|---|
| Manufacturer family | Driver LCI 220W 500-1400mA pD NF h28 PRE4 (INDUSTRY) |
| Manufacturer product group | Linear drivers |
| Supply voltage | 220 – 240 V |
| AC voltage range | 198 – 264 V |
| DC voltage range | 176 – 280 V |
| Mains frequency | 0 / 50 / 60 Hz |
| Overvoltage protection | 320 V AC, 48 h |
| Typ. current (at 230 V, 50 Hz, full load) | 1011 mA |
| Typ. current (220 V, 0 Hz, full load, XX % dimming level) | 174 mA |
| Leakage current | <0.3 mA |
| Typ. input current in no-load operation | <84 mA |
| Power Consumption | 230 W |
| Typ. power input on stand-by 230 V | <0.14 W |
| Typ. input power in no-load operation | <0.35 W |
| Output power range | 40–220 W |
| Typ. efficiency at 230 V | 97 % |
| λ over full operating range (max.) | 0.99–0.99; 0.99 |
| λ over full operating range (min.) | 0.86C |
| THD at 230V, full load | <5 % |
| Starting time | <0.7 s; <0.7 s |
| Switchover time (AC/DC) | <0.3 s |
| Turn off time | <0.01 s |
| Output current tolerance, min./full load | ±3 % |
| Max. output current peak (non-repetitive) + max. peak output current | ≤ output current +40 % |
| Output LF current ripple (< 120 Hz) / Current ripple at full load | ±1 % |
| Output P_ST_LM (at full load) | ≤1 |
| Output SVM (at full load) | ≤0.4 |
| Max. output voltage | 320 V |
| Dimming range | 1–100 % |
| Mains surge capability (between L - N) | 4 kV |
| Mains surge capability (between L/N - PE) | 4 kV |
| Surge voltage at output side (against PE) | 4 kV |
| Type of protection | IP20 |
| Length | 360 mm |
| Width | 30 mm |
| Height | 28 mm |
| Lifetime | up to 100000 h |
| Guarantee | 8 years |
| Output mode | CC |
| Maximum output power [W] | 220 |
| Input voltage | 220 – 240 V |
| IP grade | IP20 |
| Warranty [years] | 8 |
| THD | <5 % |
| Typ. efficiency at 230 V | 97 % |

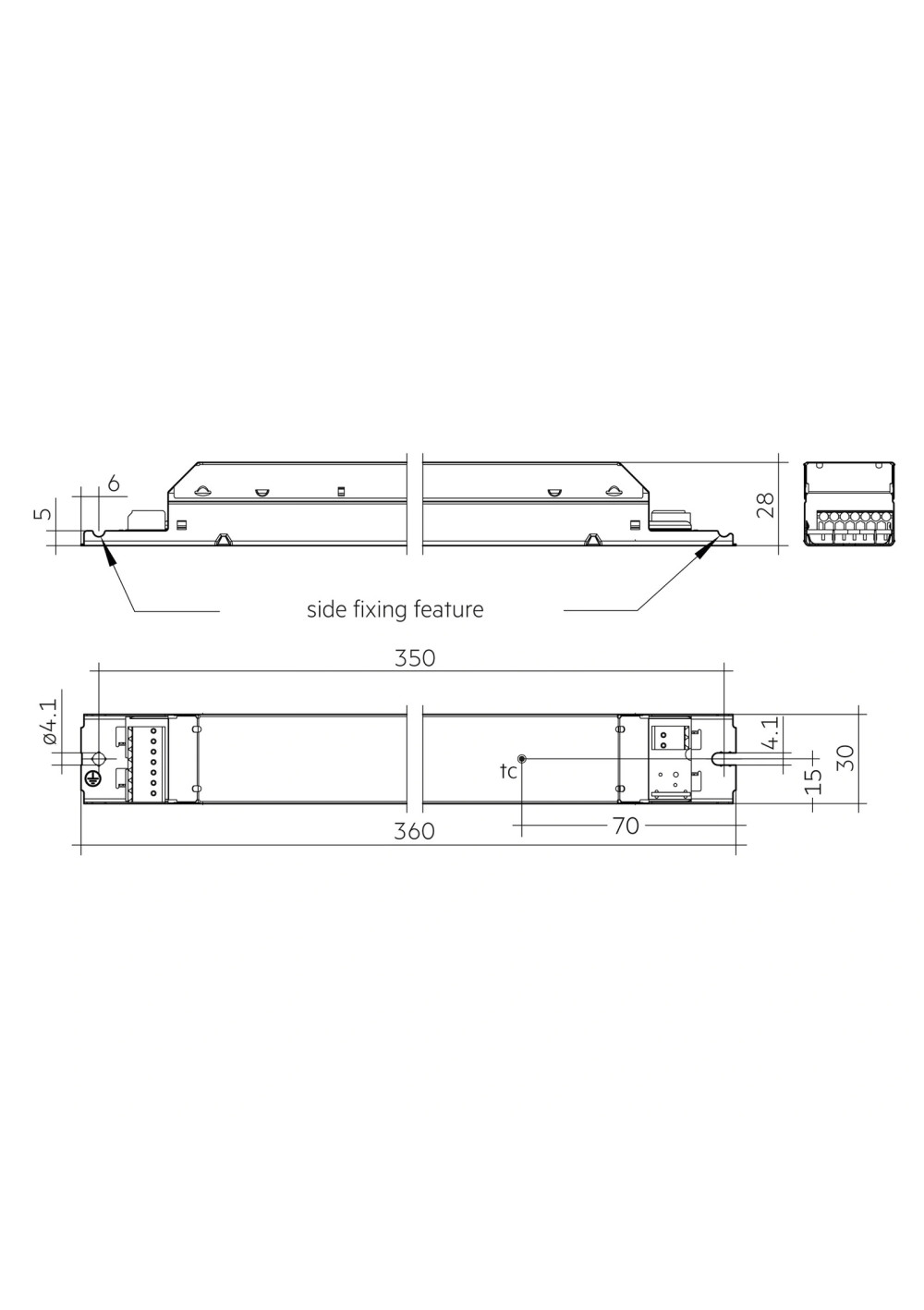

| Dimensions L×W×H | 360 × 30 × 28 mm |
| Lifetime [h] | up to 100000 h |
| Product net weight | 0.355 kg |
| Interfaces and configuration | DALI, NFC, switchDIM |
| Dimming / control | DALI, switchDIM |
| Configuration method | NFC |
| short_circuit_protection | Yes |
| overload_protection | Yes |
| no_load_protection | Yes |
| Manufacturer note: Product description | Constant current built-in Driver for LED, particularly suitable for industrial applications in tough environments with elevated ambient temperatures such as warehouses or factories |
| Manufacturer note: Product description | Certified D4i product |
| Manufacturer note: Product description | Dimming range 1 to 100 % (min. 14.0 mA) |
| Manufacturer note: Product description | For luminaires of protection class I and protection class II |
| Manufacturer note: Product description | Output current adjustable between 500 – 1,400 mA |
| Manufacturer note: Product description | Max. output power 220 W |
| Manufacturer note: Product description | Suitable for mains voltage peaks (burst/surge) up to 4 kV |
| Manufacturer note: Product description | Expanded temperature range of -40 ... +75 °C |
| Manufacturer note: Product description | Nominal lifetime up to 100,000 h |
| Manufacturer note: Product description | 8 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) |
| Manufacturer note: Housing properties | White slim metal casing |
| Manufacturer note: Housing properties | Type of protection IP20 |
| Manufacturer note: Interfaces | Near field communication (NFC) |
| Manufacturer note: Interfaces | one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) |
| Manufacturer note: Interfaces | Terminal blocks: 0° push terminals |
| Manufacturer note: Functions | Adjustable output current in 1-mA-steps (NFC, DALI) |
| Manufacturer note: Functions | Fulfills DALI-2 parts: 250 (Integrated bus power supply), 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) |
| Manufacturer note: Functions | Constant light output function (eCLO) |
| Manufacturer note: Functions | Intelligent Temperature Guard (overtemperature protection) |
| Manufacturer note: Functions | Intelligent Voltage Guard (overvoltage and undervoltage monitoring) |
| Manufacturer note: Functions | Protective features (overtemperature, short-circuit, overload, no-load, input voltage range) |
| Manufacturer note: Functions | Suitable for emergency escape lighting systems acc. to EN 50172 |
| Manufacturer note: Functions | LTI (Lifetime Indicator) |
| Manufacturer note: Benefits | Flexible configuration via companionSUITE (NFC, DALI) |
| Manufacturer note: Benefits | Application-oriented operating window for maximum compatibility |
| Manufacturer note: Benefits | Extended vibration damping |
| Manufacturer note: Benefits | Increased safety through robust design and advanced testing under extreme test conditions |
| Manufacturer note: Benefits | High reliability through the selection of exclusive components |
| Manufacturer note: Typical applications | For linear/area lighting in industry applications |
Operating points
| Point | Output current | Min./Max. forward voltage | Typ. current consumption | Output power | Typ. power consumption | Ambient temperature ta | tc point max |
|---|---|---|---|---|---|---|---|
| 1 | 500.0 mA | 80 V; 300 V | 692 mA | 150 W | 155.5 W | -40–75 °C | 88.0 °C |
| 2 | 600.0 mA | 80 V; 300 V | 825 mA | 180 W | 186.4 W | -40–75 °C | 88.0 °C |
| 3 | 700.0 mA | 80 V; 300 V | 958 mA | 210 W | 217.4 W | -40–70 °C | 87.0 °C |
| 4 | 800.0 mA | 80 V; 275 V | 1003 mA | 220 W | 227.9 W | -40–70 °C | 87.0 °C |
| 5 | 900.0 mA | 80 V; 244.4 V | 1005 mA | 220 W | 228.1 W | -40–70 °C | 89.0 °C |
| 6 | 1000.0 mA | 80 V; 220 V | 1006 mA | 220 W | 228.5 W | -40–70 °C | 89.0 °C |
| 7 | 1100.0 mA | 80 V; 200 V | 1007 mA | 220 W | 228.7 W | -40–65 °C | 88.0 °C |
| 8 | 1200.0 mA | 80 V; 183.3 V | 1009 mA | 220 W | 229 W | -40–65 °C | 88.0 °C |
| 9 | 1300.0 mA | 80 V; 169.2 V | 1010 mA | 220 W | 229.3 W | -40–65 °C | 92.0 °C |
| 10 | 1400.0 mA | 80 V; 157.1 V | 1011 mA | 220 W | 229.7 W | -40–65 °C | 92.0 °C |
The Vmin/Vmax and CC operating-window filter features represent the global envelope of all documented settings. The complete operating-point table defines the permitted voltage at each current setting.
Installation / application
Select LED modules by comparing their forward voltage and current with the operating window at the chosen setting. Maximum tc and permissible ambient temperature apply under the conditions stated for each operating point.
Additional information
Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.
Main source of information: www.tridonic.com
We make every effort to ensure that the information presented in this product description is complete, up to date and consistent with source documentation. However, product ranges and specifications may evolve and be updated, and some changes may not yet be reflected in our description. Inaccuracies or errors may also occur in the source documentation itself. If you have any doubts or notice an error, please contact us at bok@ledownia.pl.
zas_tridonic_28004039
Data sheet
- Power supply type
- Constant Current (CC)
- Rated power [W]
- 220
- Output Current of CC power supply [mA]
- 500-1400
- CC operating window
- 80-300
- Min. output voltage of led driver (CC)
- 80
- Max. output voltage of led driver (CC)
- 300
- Dimming / Control
- DALI, switchDIM
- Dimensions (L x W x H) [mm]
- 360 × 30 × 28 mm
- IP grade
- 20
- Length [mm]
- 360
- Width [mm]
- 30
- Height/thickness [mm]
- 28
- Warranty [years]
- 8
- Input voltage [V]
- 220-240
- Min. current of CC driver [mA]
- 500
- Max. current of CC driver [mA]
- 1400
