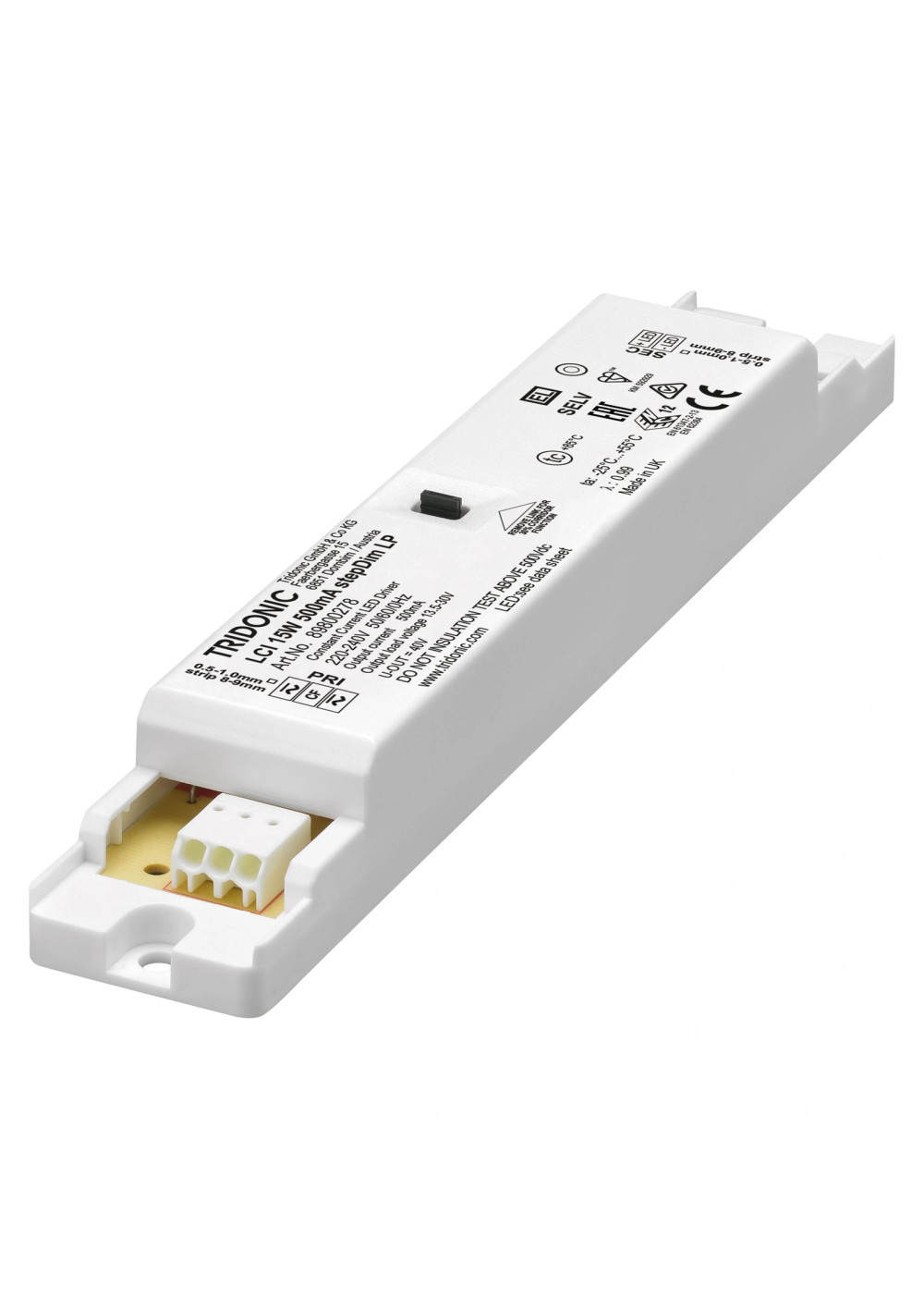

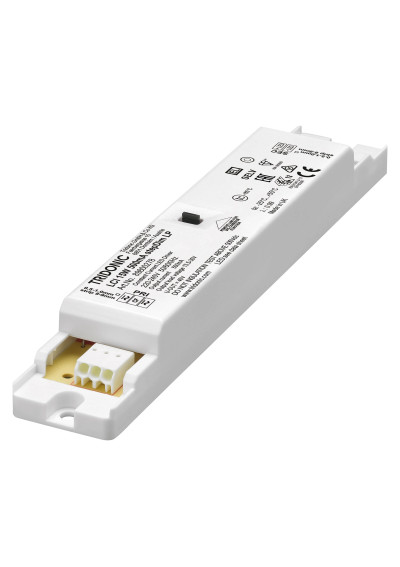

LED power supply Tridonic LCI 15W 500mA stepDim lp
LED power supply Tridonic LCI 15W 500mA stepDim lp is a constant current LED driver. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.
LED power supply Tridonic LCI 15W 500mA stepDim lp
157.50 PLN
Shipment in 8-10 working days
zas_tridonic_89800278
LED power supply Tridonic LCI 15W 500mA stepDim lp is a constant current LED driver. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LED power supply Tridonic LCI 15W 500mA stepDim lp is a constant current LED driver in the Driver LCI 15W 350/500/700mA stepDIM lp family. Official article number 89800278 identifies this physical version.
Key properties
Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.
Technical specifications
| Manufacturer article number | 89800278 |
|---|---|
| Manufacturer family | Driver LCI 15W 350/500/700mA stepDIM lp |
| Manufacturer product group | Compact drivers |
| Supply voltage | 220 – 240 V |
| AC voltage range | 198 – 264 V |
| DC voltage range | 176 – 280 V |
| Mains frequency | 0 / 50 / 60 Hz |
| λ over full operating range (max.) | 0.99 |
| λ over full operating range (min.) | 0.97 |
| Starting time | ≤0.1 s |
| Turn off time | ≤0.1 s |
| Hold on time | 0 s |
| Max. repetitive output peak current | ≤ output current +24 % |
| Max. output current peak (non-repetitive) + max. peak output current | ≤ output current +24 % |
| Output LF current ripple (< 120 Hz) / Current ripple at full load | ±15 % |
| Max. output voltage | 60 V |
| Storage temperature ts | -40–85 °C |
| Type of protection | IP20 |

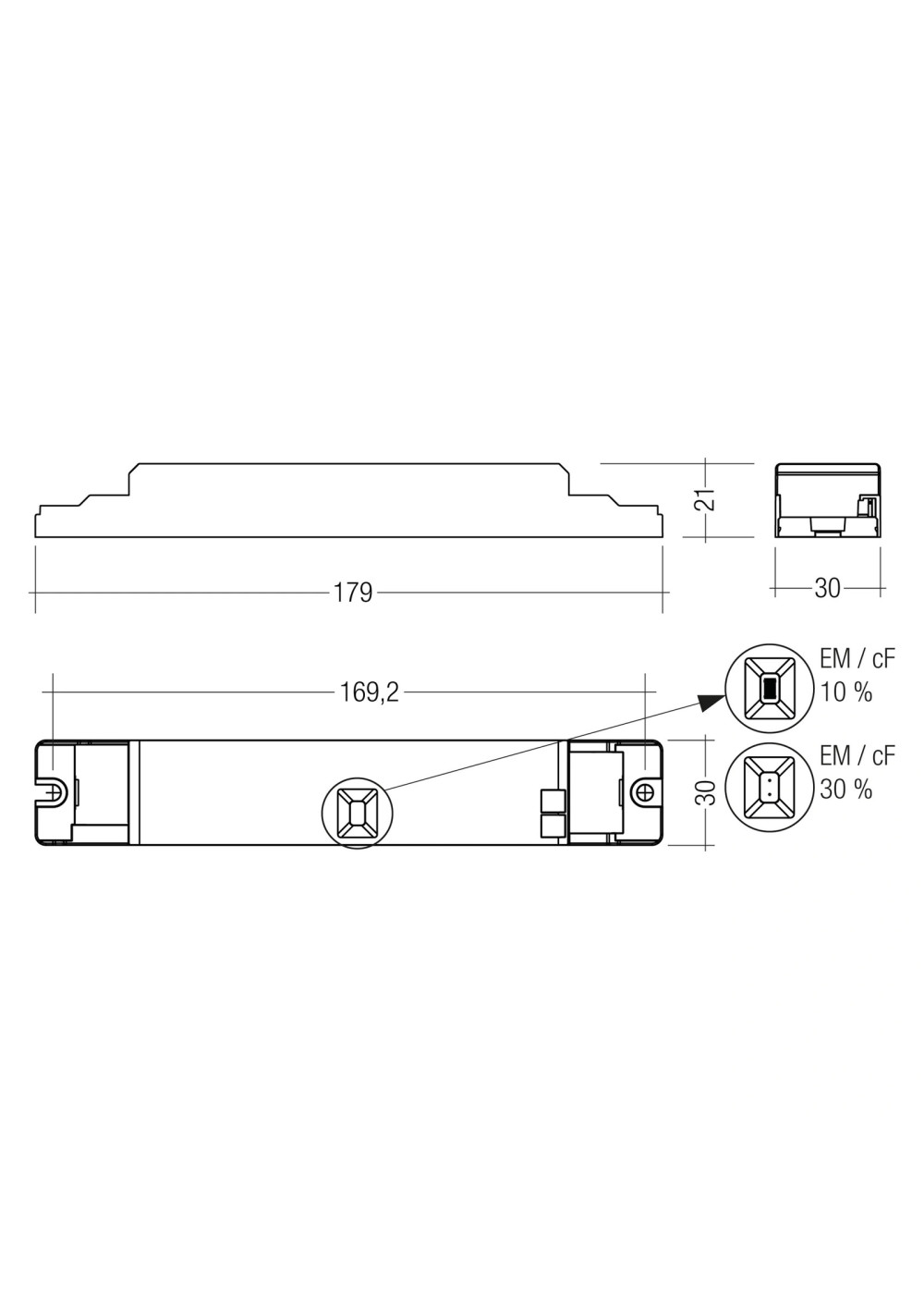

| Length | 179 mm |
| Width | 30 mm |
| Height | 21 mm |
| Lifetime | up to 50000 h |
| Guarantee | 5 years |
| Output mode | CC |
| Input voltage | 220 – 240 V |
| IP grade | IP20 |
| Warranty [years] | 5 |
| Storage temperature | -40–85 °C |
| λ over full operating range (max.) | 0.99 |
| Dimensions L×W×H | 179 × 30 × 21 mm |
| Lifetime [h] | up to 50000 h |
| Product net weight | 0.066 kg |
| SELV | Yes |
| short_circuit_protection | Yes |
| overload_protection | Yes |
| no_load_protection | Yes |
| Manufacturer note: Product description | Constant current LED driver for luminaire installation |
| Manufacturer note: Product description | Implemented stepDIM function |
| Manufacturer note: Product description | 10 or 30 % dimming level settable |
| Manufacturer note: Product description | Output dimmed analogue (current amplitude) |
| Manufacturer note: Product description | Can be used with a standard motion detector (Simple CORRIDOR FUNCTION) |
| Manufacturer note: Product description | Type of protection IP20 |
| Manufacturer note: Product description | Push-in terminals |
| Manufacturer note: Product description | Connecting cable, wire cross-section 0.5 – 1.5 mm² |
| Manufacturer note: Product description | SELV |
| Manufacturer note: Product description | 350, 500 or 700 mA output current |
| Manufacturer note: Product description | Output power 15/16/16.5 W |
| Manufacturer note: Product description | Nominal lifetime of 50,000 h (at ta max. with a failure rate ≤ 0.2 % per 1,000 h) |
| Manufacturer note: Product description | 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) |
| Manufacturer note: Properties | Casing: polycarbonate, white |
| Manufacturer note: Properties | Compact dimensions |
| Manufacturer note: Properties | Overload protection |
| Manufacturer note: Properties | Short-circuit protection |
| Manufacturer note: Properties | No-load protection |
Operating points
| Point | Output current | Output current tolerance | Min./Max. forward voltage | Typ. current consumption | Output power | Typ. power consumption | Ambient temperature ta | tc point max | Operating modes / Grouping |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 500.0 mA | ±7.5 % | 13.5 V; 33.5 V | 86 mA | 16.5 W; 16.5 W | 20.5 W | -25–55 °C | 85.0 °C | Normal operation 100 % (LCI 15W 500mA) |
| 2 | 150.0 mA | ±25 % | 13.5 V; 33.5 V | 57 mA | 4.9 W; 4.9 W | 6.3 W | -25–55 °C | 85.0 °C | Operation cF / EM 30 % (LCI 15W 500mA) |
| 3 | 50.0 mA | ±25 % | 13.5 V; 33.5 V | 20 mA | 1.7 W; 1.7 W | 3 W | -25–55 °C | 85.0 °C | Operation cF / EM 10 % (LCI 15W 500mA) |
The Vmin/Vmax and CC operating-window filter features represent the global envelope of all documented settings. The complete operating-point table defines the permitted voltage at each current setting.
Installation / application
Select LED modules by comparing their forward voltage and current with the operating window at the chosen setting. Maximum tc and permissible ambient temperature apply under the conditions stated for each operating point.
Additional information
Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.
Main source of information: www.tridonic.com
