Mean Well HVGC-240-1750A 240 W CC LED driver 1750 mA
Mean Well HVGC-240-1750A 240 W CC LED driver 1750 mA – dimensions

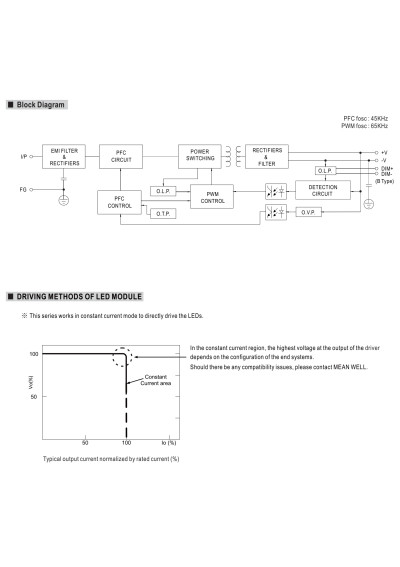

Mean Well HVGC-240-1750A 240 W CC LED driver 1750 mA – block diagram

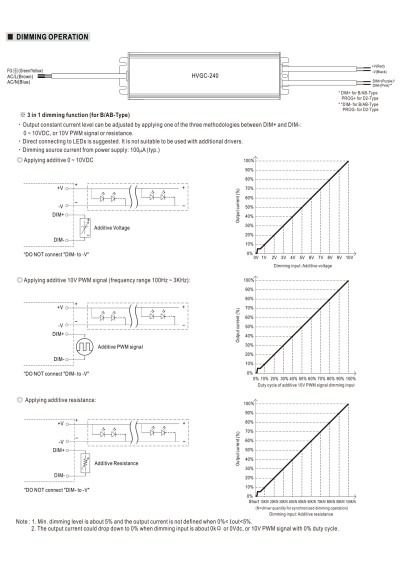

Mean Well HVGC-240-1750A 240 W CC LED driver 1750 mA – dimming diagram

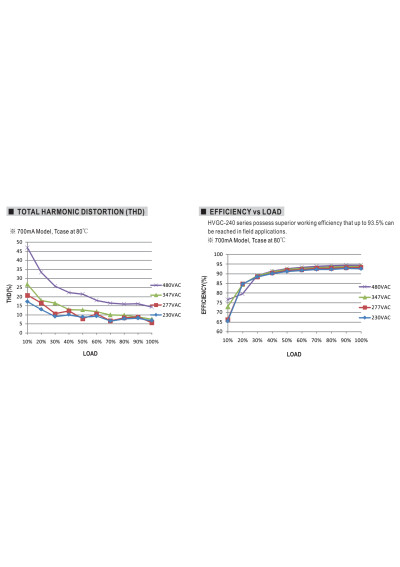

Mean Well HVGC-240-1750A 240 W CC LED driver 1750 mA – efficiency versus load characteristic

Mean Well HVGC-240-1750A 240W 1750mA 68.5–137.1V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
398.37 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_HVGC-240-1750A

Mean Well HVGC-240-1750A is a 240 W constant-current LED driver rated at 1750 mA, with a 68.5 V–137.1 V output-voltage region.

Volume discounts

Quantity Discounted price
5+ 382.11 PLN
10+ 365.85 PLN
20+ 341.46 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

HVGC-240-1750A – full product specification

Mean Well HVGC-240-1750A is a HVGC-240-series power supply rated at 240 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 1750 mA across a 68.5 V–137.1 V DC voltage region.

Full technical specifications

3-in-1 dimmingYes
current_ripple_pct5 %
Dimensions254.2 × 68 × 38.8 mm
Document revisionHVGC-240-SPEC 2025-10-10
Typical efficiency93 %
Input frequency47–63 Hz
IP ratingIP65
Rated current1750 mA
Operating modeConstant Current (CC)
CC-region maximum voltage137.1 V
CC-region minimum voltage68.5 V
Over-voltage protection range144–158 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power240 W
Manufacturer warranty5 years
Weight1.35 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_HVGC-240-1750A

Data sheet

Power supply type
Constant Current (CC)
Rated power [W]
100,1-249
Output Current of CC power supply [mA]
1750
CC operating window
68.5-137.1
Min. output voltage of led driver (CC)
68.5
Max. output voltage of led driver (CC)
137.1
IP grade
65
Length [mm]
254.2
Width [mm]
68
Height/thickness [mm]
38.8
Warranty [years]
5

Specific References

EAN13
4711287454665
MPN
HVGC-240-1750A
New
