Mean Well XLG-320-H-AB 312 W constant-power LED driver
Mean Well XLG-320-H-AB 312 W constant-power LED driver – block diagram

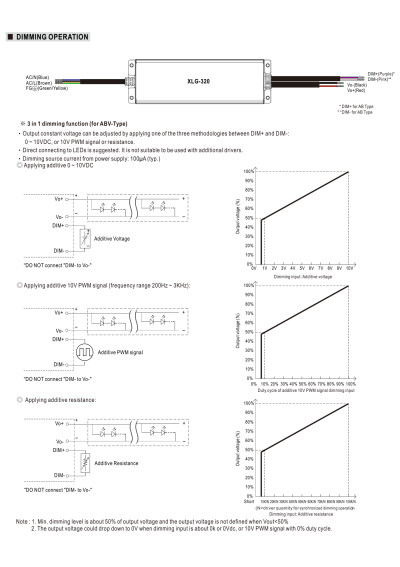

Mean Well XLG-320-H-AB 312 W constant-power LED driver – dimming diagram

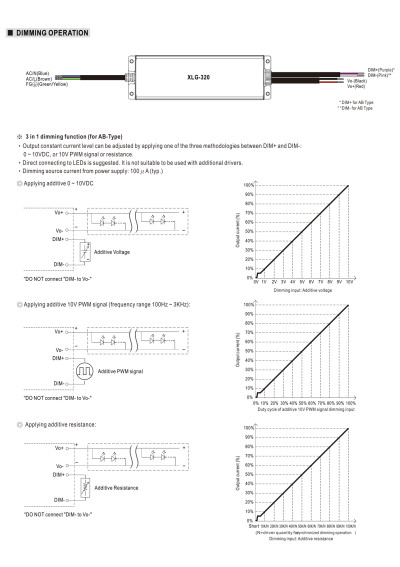

Mean Well XLG-320-H-AB 312 W constant-power LED driver – dimming diagram

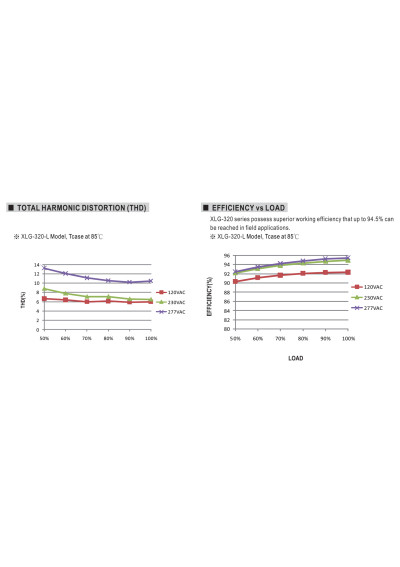

Mean Well XLG-320-H-AB 312 W constant-power LED driver – efficiency versus load characteristic

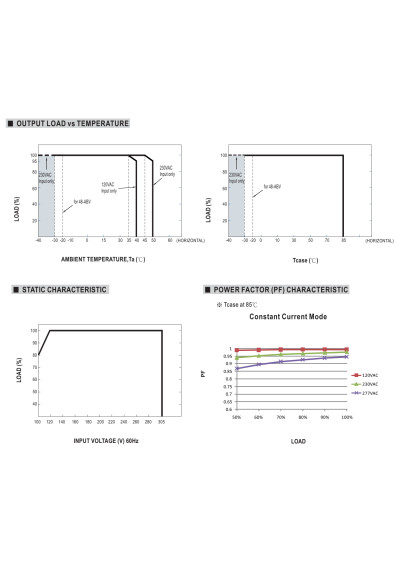

Mean Well XLG-320-H-AB 312 W constant-power LED driver – load versus temperature characteristic

Mean Well XLG-320-H-AB 312 W constant-power LED driver

Minimum order quantity: 1. Order in multiples of 1.
300.80 PLN
Shipment in 1-2 business days
Constant Current (CC)
tm_XLG-320-H-AB

Mean Well XLG-320-H-AB is a 312 W constant-power LED driver with a 5570 mA–7420 mA current-setting envelope.

Volume discounts

Quantity Discounted price
5+ 284.54 PLN
10+ 276.41 PLN
20+ 268.28 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

XLG-320-H-AB – full product specification

Mean Well XLG-320-H-AB is a XLG-320-series power supply rated at 312 W. The parameters below come from the exact official manufacturer datasheet.

Constant-power characteristic

Full power is available across a 5570 mA–7420 mA current envelope and 150 V–300 V DC voltage region.

Full technical specifications

3-in-1 dimmingYes
current_ripple_pct5 %
Dimensions246 × 77 × 39.5 mm
Document revisionXLG-320-SPEC 2026-02-04
Typical efficiency92.5 %
Input frequency47–63 Hz
Inrush current45 A
IP ratingIP67
Rated current5600 mA
Maximum adjustable current7420 mA
Minimum adjustable current5570 mA
Operating modeConstant voltage + constant current (CV+CC)
CC-region maximum voltage300 V
CC-region minimum voltage150 V
Over-voltage protection range63–78 V
Constant-power characteristicYes
Over-voltage protectionYes
Short-circuit protectionYes
Rated power312 W
Manufacturer warranty5 years
Weight1.45 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_XLG-320-H-AB

Data sheet

Power supply type
CV+CC
Rated power [W]
250-499
IP grade
67
Length [mm]
246
Width [mm]
77
Height/thickness [mm]
39.5
Warranty [years]
5
Min. current of CC driver [mA]
5570
Max. current of CC driver [mA]
7420

Specific References

EAN13
4711287482316
MPN
XLG-320-H-AB
