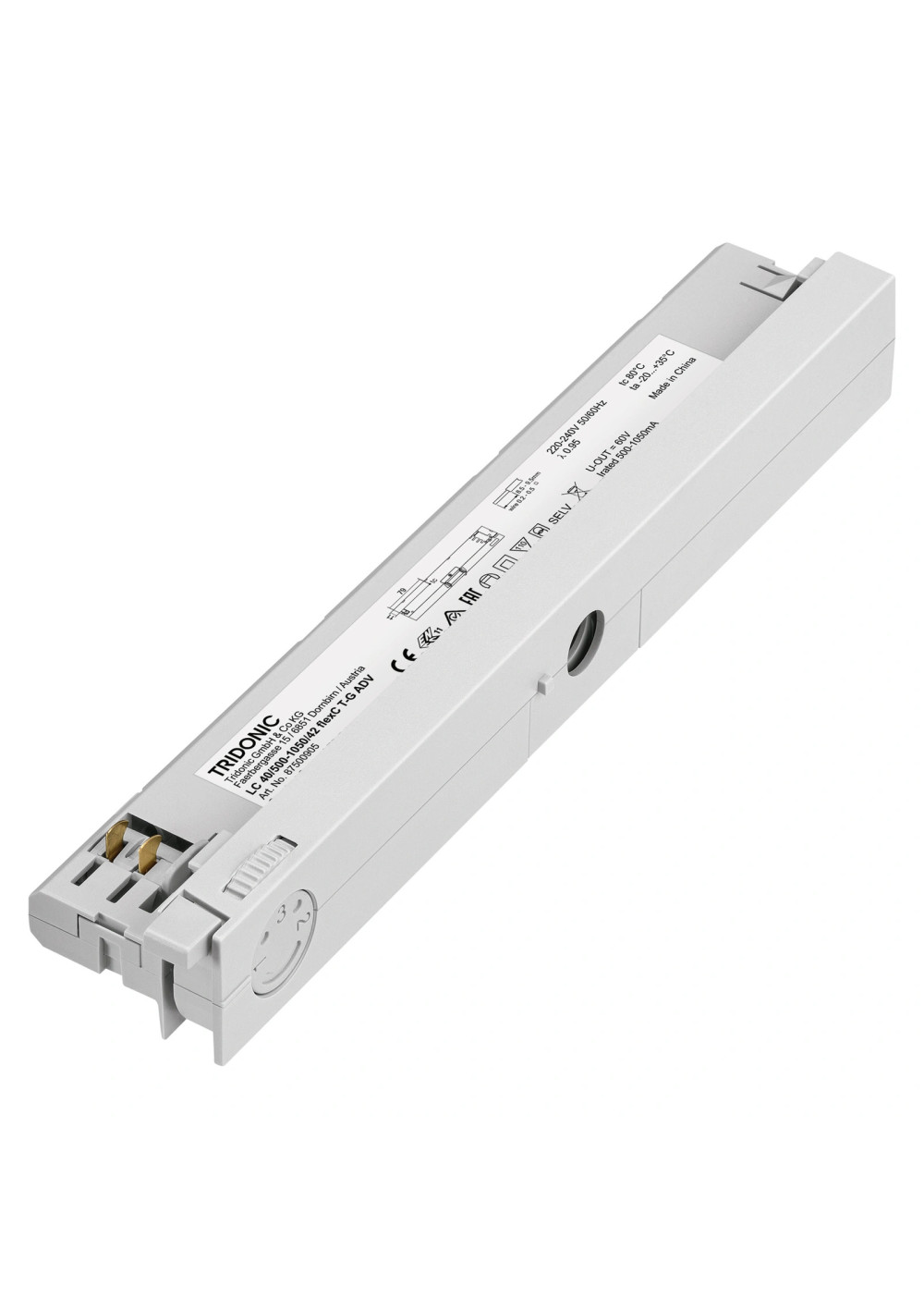

LED power supply Tridonic LC 40/500-1050/42 flexC T-G ADV
LED power supply Tridonic LC 40W 500-1050mA 42V flexC T-G ADV is a constant current LED driver rated up to 40 W. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.
LED power supply Tridonic LC 40/500-1050/42 flexC T-G ADV
215.00 PLN
Shipment in 1-2 business days
zas_tridonic_87500905
LED power supply Tridonic LC 40W 500-1050mA 42V flexC T-G ADV is a constant current LED driver rated up to 40 W. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LED power supply Tridonic LC 40W 500-1050mA 42V flexC T-G ADV is a constant current LED driver in the Driver LC 40W 500-1050mA 42V flexC T ADV family. Official article number 87500905 identifies this physical version.
Key properties
Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.
Technical specifications
| Manufacturer article number | 87500905 |
|---|---|
| Manufacturer family | Driver LC 40W 500-1050mA 42V flexC T ADV |
| Manufacturer product group | in-track drivers |
| Supply voltage | 220 – 240 V |
| AC voltage range | 198 – 264 V |
| Mains frequency | 50 / 60 Hz |
| Overvoltage protection | 320 V AC, 1 h |
| Leakage current | <0.45 mA |
| Input current | 212 mA |
| Power Consumption | 47 W; 47.2 W |
| Min. output power | 6.0 W |
| Typ. efficiency at 230 V | 85 % |
| λ over full operating range (max.) | 0.95 |
| THD at 230V, full load | <6 % |
| Starting time | <0.5 s |
| Turn off time | ≤0.01 s |
| Hold on time | 0 s |
| Output current tolerance, min./full load | ±5 % |
| Max. output peak current | ≤ output current +10 % |
| Output LF current ripple (< 120 Hz) / Current ripple at full load | ±3 % |
| Output P_ST_LM (at full load) | ≤1 |
| Output SVM (at full load) | ≤0.4 |
| Max. output voltage | 60 V |
| Mains surge capability (between L - N) | 1 kV |
| Ambient temperature ta | 35 °C |
| Storage temperature ts | -40–80 °C |
| Type of protection | IP20 |

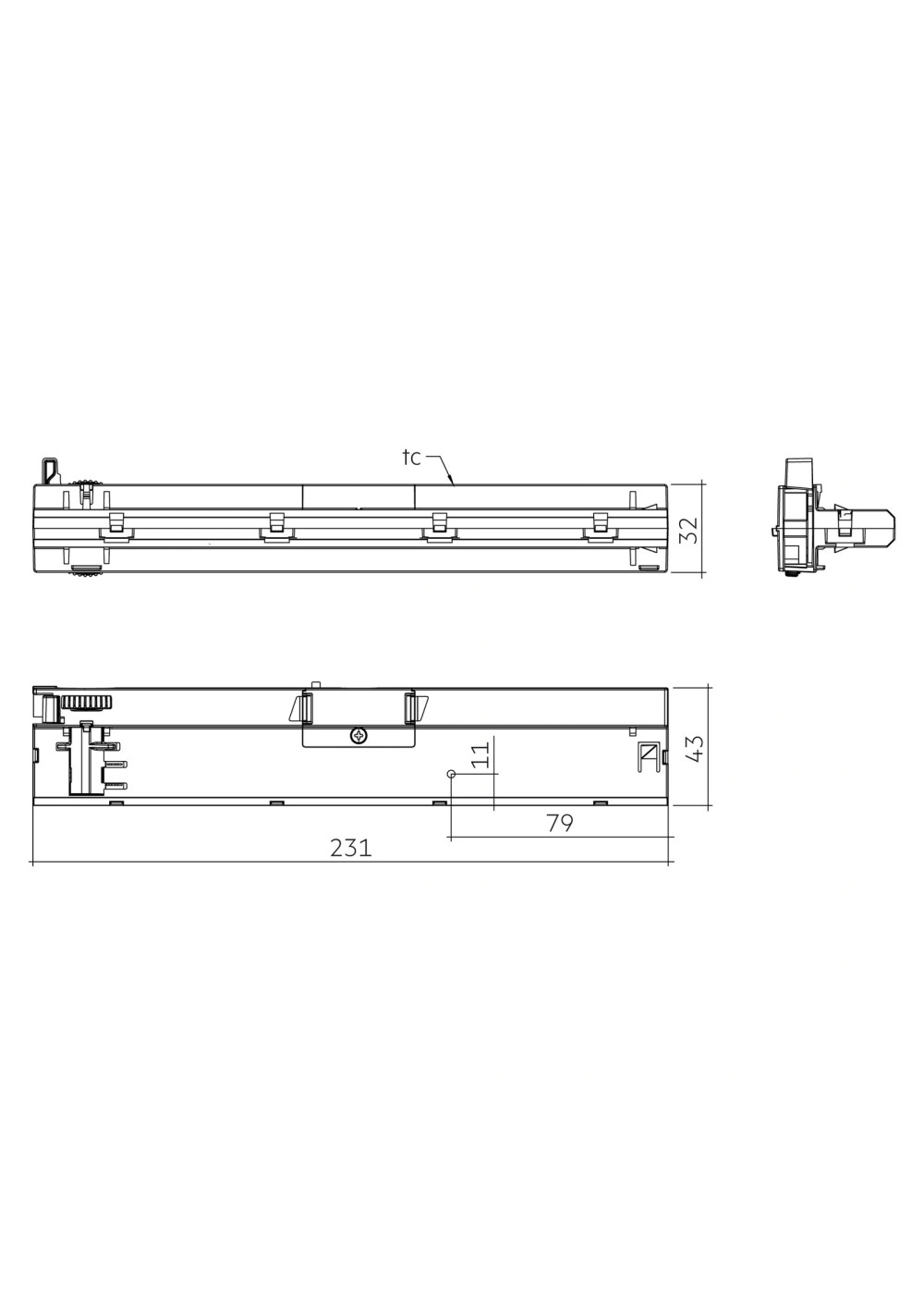

| Length | 230 mm |
| Width | 32 mm |
| Height | 43.3 mm |
| Lifetime | up to 100000 h |
| Guarantee | 5 years |
| Output mode | CC |
| Maximum output power [W] | 40 |
| Input voltage | 220 – 240 V |
| IP grade | IP20 |
| Warranty [years] | 5 |
| Storage temperature | -40–80 °C |
| THD | <6 % |
| Typ. efficiency at 230 V | 85 % |
| λ over full operating range (max.) | 0.95 |
| Dimensions L×W×H | 230 × 32 × 43.3 mm |
| Lifetime [h] | up to 100000 h |
| Product net weight | 0.153 kg |
| short_circuit_protection | Yes |
| overload_protection | Yes |
| no_load_protection | Yes |
| Manufacturer note: Product description | Constant current / in-track LED driver |
| Manufacturer note: Product description | Optional accessory ACU ALU NIPPLE M10x1 for mounting the luminaire head |
| Manufacturer note: Product description | Compatible 3-phase system in-tracks, see data sheet chapter 3.8 |
| Manufacturer note: Product description | For luminaires of protection class II |
| Manufacturer note: Product description | Temperature protection as per EN 61347-2-13 C5e |
| Manufacturer note: Product description | Adjustable output current between 500 and 1,050 mA via I-SELECT 2 plugs |
| Manufacturer note: Product description | Max. output power 40 W |
| Manufacturer note: Product description | Up to 87 % efficiency |
| Manufacturer note: Product description | Nominal lifetime up to 100,000 h |
| Manufacturer note: Product description | 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) |
| Manufacturer note: Housing properties | Casing: polycarbonate, black, white or grey |
| Manufacturer note: Housing properties | Type of protection IP20 |
| Manufacturer note: Functions | Overtemperature protection |
| Manufacturer note: Functions | Overload protection |
| Manufacturer note: Functions | Short-circuit protection |
| Manufacturer note: Functions | No-load protection |
| Manufacturer note: Functions | Burst protection voltage 1 kV |
| Manufacturer note: Functions | Surge protection voltage 1 kV (L to N) |
| Manufacturer note: Typical applications | For spot light in retail and hospitality application |
Installation / application
Select LED modules by comparing their forward voltage and current with the operating window at the chosen setting. Maximum tc and permissible ambient temperature apply under the conditions stated for each operating point.
Additional information
Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.
Main source of information: www.tridonic.com
We make every effort to ensure that the information presented in this product description is complete, up to date and consistent with source documentation. However, product ranges and specifications may evolve and be updated, and some changes may not yet be reflected in our description. Inaccuracies or errors may also occur in the source documentation itself. If you have any doubts or notice an error, please contact us at bok@ledownia.pl.
zas_tridonic_87500905
Data sheet
- Power supply type
- Constant Current (CC)
- Rated power [W]
- 40
- Dimensions (L x W x H) [mm]
- 230 × 32 × 43.3 mm
- IP grade
- 20
- Length [mm]
- 230
- Width [mm]
- 32
- Height/thickness [mm]
- 43.3
- Warranty [years]
- 5
- Input voltage [V]
- 220-240
- Power factor
- 0.95
