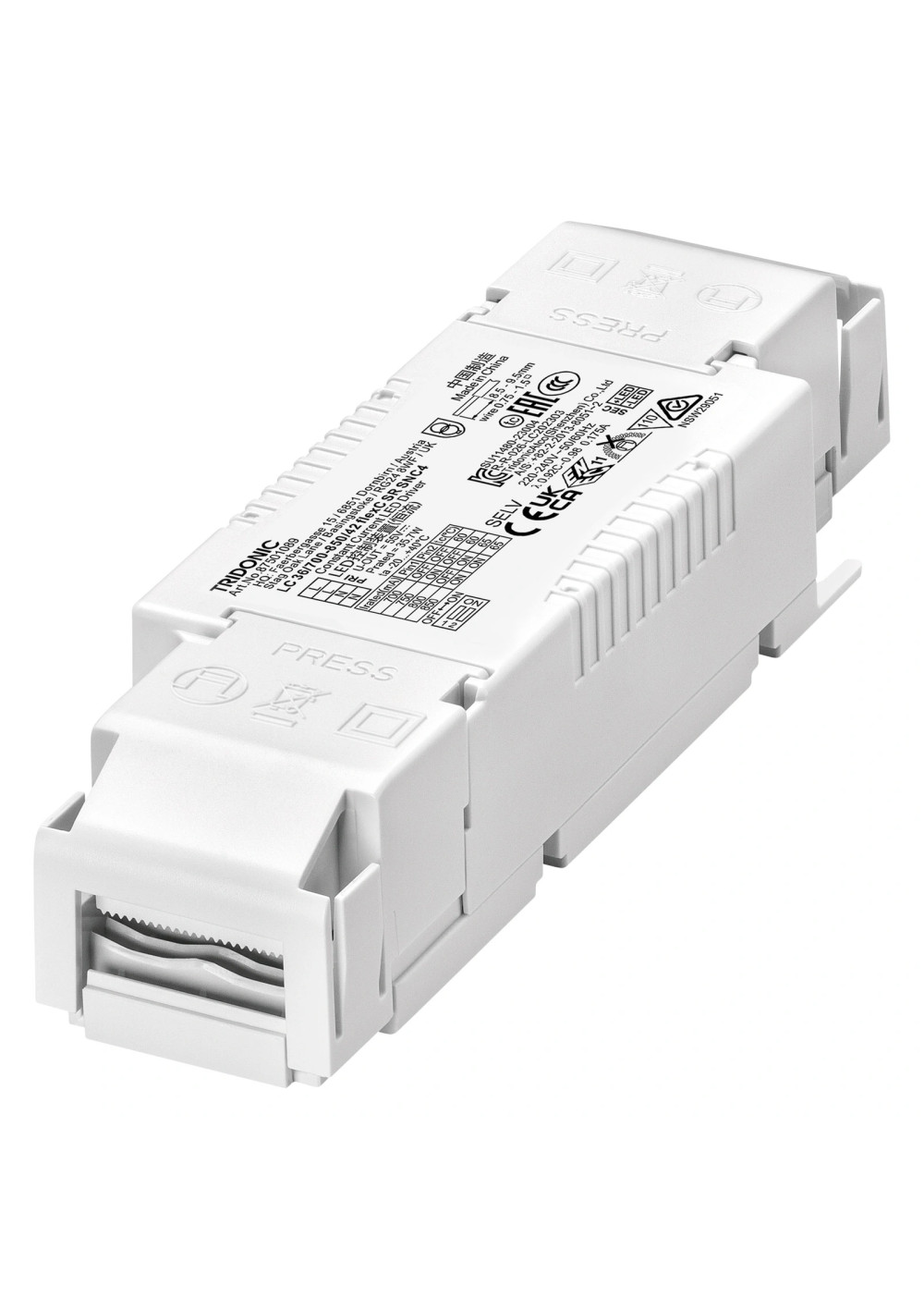

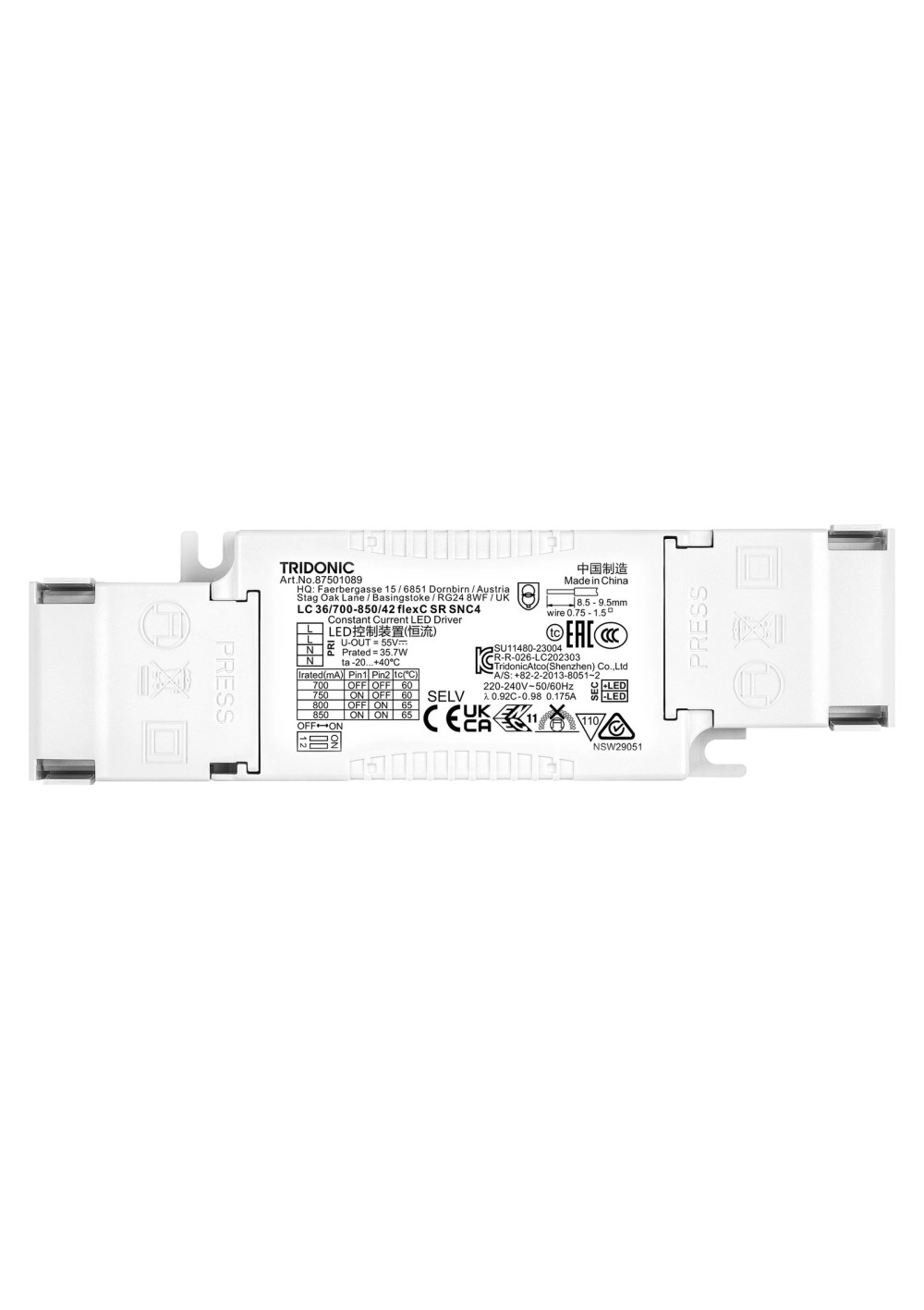

LED power supply Tridonic LC 36/700-850/42 flexC SR SNC4
LED power supply Tridonic LC 36W 700-850mA 42V flexC SR SNC4 is a LED power supply rated up to 35.7 W. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.
LED power supply Tridonic LC 36/700-850/42 flexC SR SNC4
87.00 PLN
Shipment in 1-2 business days
zas_tridonic_87501089
LED power supply Tridonic LC 36W 700-850mA 42V flexC SR SNC4 is a LED power supply rated up to 35.7 W. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LED power supply Tridonic LC 36W 700-850mA 42V flexC SR SNC4 is a LED power supply in the Driver LC 36W 700-850mA flexC SR SNC4 family. Official article number 87501089 identifies this physical version.
Key properties
Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.
Technical specifications
| Manufacturer article number | 87501089 |
|---|---|
| Manufacturer family | Driver LC 36W 700-850mA flexC SR SNC4 |
| Manufacturer product group | Compact drivers |
| Supply voltage | 220 – 240 V |
| AC voltage range | 198 – 264 V |
| Mains frequency | 50 / 60 Hz |
| Overvoltage protection | 320 V AC, 2 h |
| Input current | 175 mA |
| Power Consumption | 39.5 W |
| Min. output power | 16.8 W |
| Typ. efficiency at 230 V | 90.5 % |
| λ over full operating range (max.) | 0.98 |
| λ over full operating range (min.) | 0.92C |
| THD at 230V, full load | <15 % |
| Starting time | ≤0.5 s |
| Turn off time | ≤0.5 s |
| Hold on time | 0 s |
| Output current tolerance, min./full load | ±7.5 % |
| Max. output peak current | ≤ output current +12 % |
| Output LF current ripple (< 120 Hz) / Current ripple at full load | ±5 % |
| Output P_ST_LM (at full load) | ≤1 |
| Output SVM (at full load) | ≤0.4 |
| Max. output voltage | 55 V |
| Mains surge capability (between L - N) | 1 kV |
| Mains surge capability (between L/N - PE) | 2 kV |
| (Mains) burst capability | 1 kV |
| Surge voltage at output side (against PE) | 3 kV |
| Ambient temperature ta | 40 °C |
| Storage temperature ts | -40–80 °C |
| Type of protection | IP20 |
| Length | 147 mm |
| Width | 43 mm |
| Height | 30 mm |
| Lifetime | up to 100000 h |
| Guarantee | 5 years |
| Maximum output power [W] | 35.7 |
| Input voltage | 220 – 240 V |
| IP grade | IP20 |
| Warranty [years] | 5 |
| Storage temperature | -40–80 °C |
| THD | <15 % |
| Typ. efficiency at 230 V | 90.5 % |
| λ over full operating range (max.) | 0.98 |

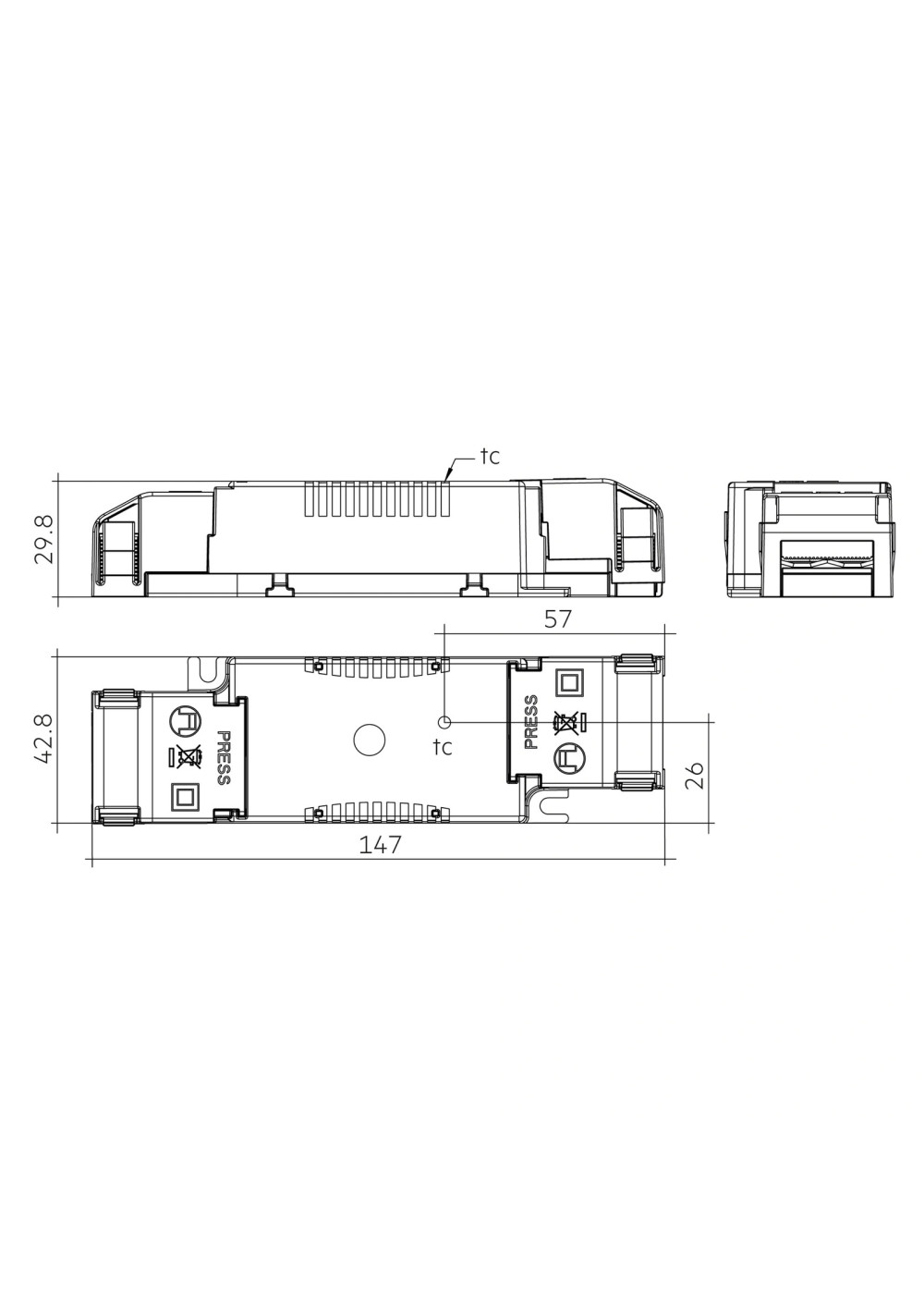

| Dimensions L×W×H | 147 × 43 × 30 mm |
| Lifetime [h] | up to 100000 h |
| Product net weight | 0.113 kg |
| short_circuit_protection | Yes |
| overload_protection | Yes |
| no_load_protection | Yes |
| Manufacturer note: Product description | Independent fixed output LED driver |
| Manufacturer note: Product description | For luminaires of protection class II |
| Manufacturer note: Product description | For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711 |
| Manufacturer note: Product description | Temperature protection as per EN 61347-2-13 C5e |
| Manufacturer note: Product description | Selectable fixed output current via DIP switch 700, 750, 800 and 850 mA (pre-selected current 700 mA) |
| Manufacturer note: Product description | Max. output power 35.7 W |
| Manufacturer note: Product description | Up to 90.5 % efficiency |
| Manufacturer note: Product description | Nominal lifetime up to 100,000 h |
| Manufacturer note: Product description | 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) |
| Manufacturer note: Housing properties | Casing: polycarbonate, white |
| Manufacturer note: Housing properties | Type of protection IP20 |
| Manufacturer note: Interfaces | Terminal blocks: 45° push terminals |
| Manufacturer note: Functions | Overload protection |
| Manufacturer note: Functions | Short-circuit protection |
| Manufacturer note: Functions | No-load protection |
| Manufacturer note: Functions | Overtemperature protection |
| Manufacturer note: Functions | Burst protection voltage 1 kV |
| Manufacturer note: Functions | Burst protection voltage 1 kV (L to N) |
| Manufacturer note: Functions | Surge protection voltage 2 kV (L/N to earth) |
| Manufacturer note: Typical applications | For spot light and downlight in retail and hospitality applications |
| Manufacturer note: Typical applications | For panel light and area light in office and education application |
Operating points
| Point | Output current | Min./Max. forward voltage | Typ. current consumption | Output power | Typ. power consumption | Efficiency (230V, min./full load) | Ambient temperature ta | tc point max | Resistor / I-out select |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 700.0 mA | 24 V; 42 V | 145 mA | 29.4 W | 32.9 W | 89.5 % | -20–40 °C | 60.0 °C | 1=off / 2=off |
| 2 | 750.0 mA | 24 V; 42 V | 155 mA | 31.5 W | 35.3 W | 90 % | -20–40 °C | 60.0 °C | 1=on / 2=off |
| 3 | 800.0 mA | 24 V; 42 V | 165 mA | 33.6 W | 37.6 W | 90 % | -20–40 °C | 65.0 °C | 1=off / 2=on |
| 4 | 850.0 mA | 24 V; 42 V | 175 mA | 35.7 W | 39.5 W | 90.5 % | -20–40 °C | 65.0 °C | 1=on / 2=on |
Installation / application
Select the load for the documented voltage and permissible power. Dimming and installation details apply only to interfaces documented for this article.
Additional information
Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.
Main source of information: www.tridonic.com
We make every effort to ensure that the information presented in this product description is complete, up to date and consistent with source documentation. However, product ranges and specifications may evolve and be updated, and some changes may not yet be reflected in our description. Inaccuracies or errors may also occur in the source documentation itself. If you have any doubts or notice an error, please contact us at bok@ledownia.pl.
zas_tridonic_87501089
Data sheet
- Rated power [W]
- 35.7
- Dimensions (L x W x H) [mm]
- 147 × 43 × 30 mm
- IP grade
- 20
- Length [mm]
- 147
- Width [mm]
- 43
- Height/thickness [mm]
- 30
- Warranty [years]
- 5
- Input voltage [V]
- 220-240
- Power factor
- 0.98
