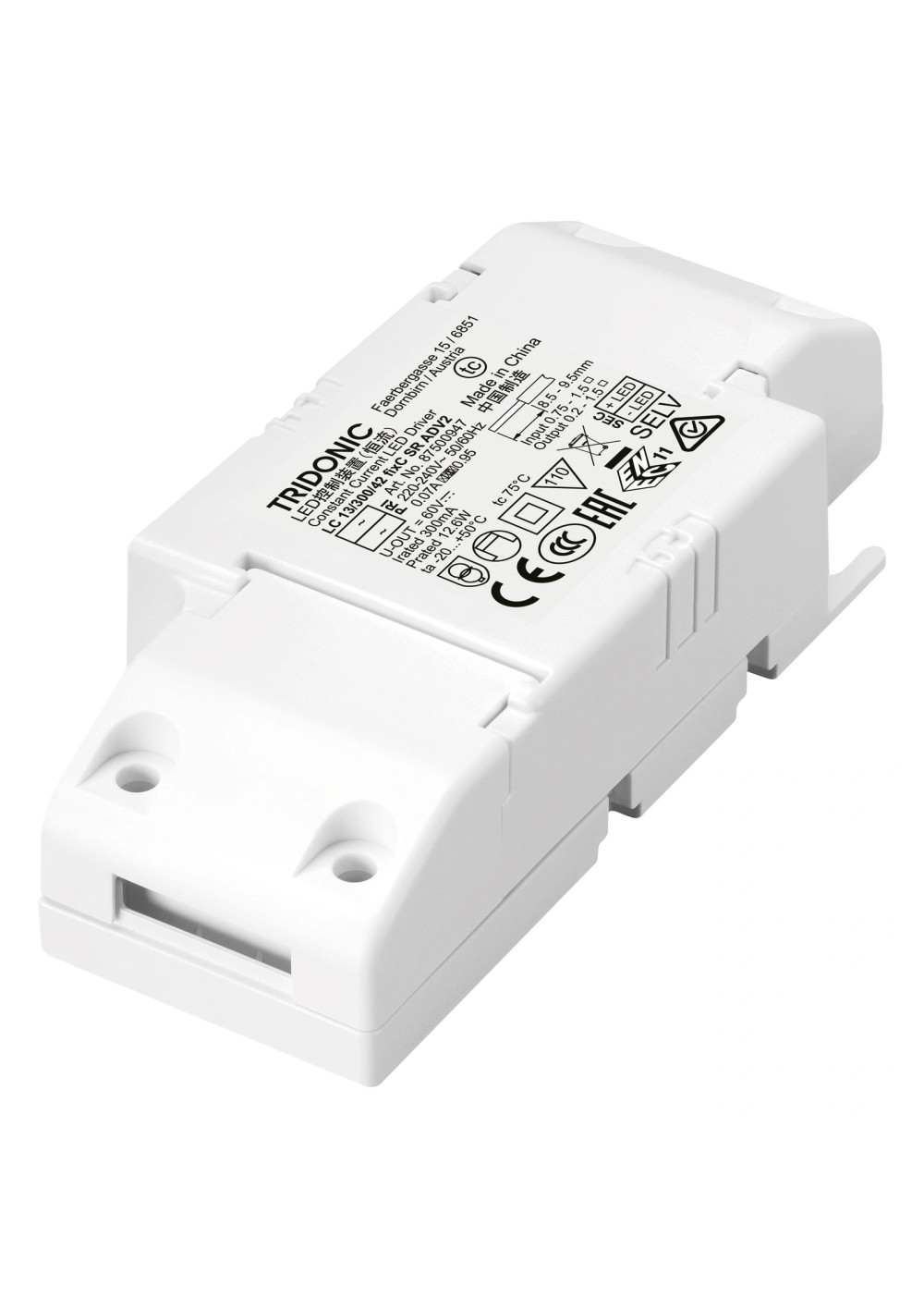

LED power supply Tridonic LC 13/300/42 fixC SR ADV2
LED power supply Tridonic LC 13W 300mA 42V fixC SR ADV2 is a LED power supply rated up to 12.6 W. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.
LED power supply Tridonic LC 13/300/42 fixC SR ADV2
87.00 PLN
Shipment in 8-10 working days
zas_tridonic_87500947
LED power supply Tridonic LC 13W 300mA 42V fixC SR ADV2 is a LED power supply rated up to 12.6 W. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LED power supply Tridonic LC 13W 300mA 42V fixC SR ADV2 is a LED power supply in the Driver LC 13W 300mA fixC SR ADV2 family. Official article number 87500947 identifies this physical version.
Key properties
Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.
Technical specifications
| Manufacturer article number | 87500947 |
|---|---|
| Manufacturer family | Driver LC 13W 300mA fixC SR ADV2 |
| Manufacturer product group | Compact drivers |
| Supply voltage | 220 – 240 V |
| AC voltage range | 198 – 264 V |
| Mains frequency | 50 / 60 Hz |
| Overvoltage protection | 320 V AC, 1 h |
| THD at 230V, full load | ≤15 % |
| Starting time | ≤0.5 s |
| Turn off time | ≤0.5 s |
| Hold on time | 0 s |
| Output LF current ripple (< 120 Hz) / Current ripple at full load | ±3 % |
| Output P_ST_LM (at full load) | ≤1 |
| Output SVM (at full load) | ≤0.4 |
| Surge voltage at output side (against PE) | 3 kV |
| Storage temperature ts | -40–80 °C |
| Guarantee | 5 years |
| Output current | 300 mA |
| Typ. current (at 230 V, 50 Hz, full load) | 70 mA |
| Min./Max. forward voltage | 30 V; 42 V |
| Max. output voltage | 60 V |
| Typ. output power | 13 W |
| Output power range | 9–12.6 W |
| Power Consumption | 15 W; 15.5 W |
| Efficiency at min./full load | 83.4 %; 86.6 % |
| λ over full operating range (max.) | 0.95 |
| λ over full operating range (min.) | 0.9C |
| Output current tolerance, min./full load | ±7.5 % |
| Max. repetitive output peak current | 338 mA |
| Output current ripple | ±3 % |
| Ambient temperature ta | 50 °C; -20–50 °C |
| Max. casing temperature tc | 75 °C |
| Lifetime | up to 50000 h |
| Length | 100 mm |
| Width | 43 mm |
| Height | 22.5 mm |
| Maximum output power [W] | 12.6 |
| Input voltage | 220 – 240 V |
| Warranty [years] | 5 |
| Maximum casing temperature tc | 75 °C |
| Storage temperature | -40–80 °C |
| THD | ≤15 % |
| λ over full operating range (max.) | 0.95 |

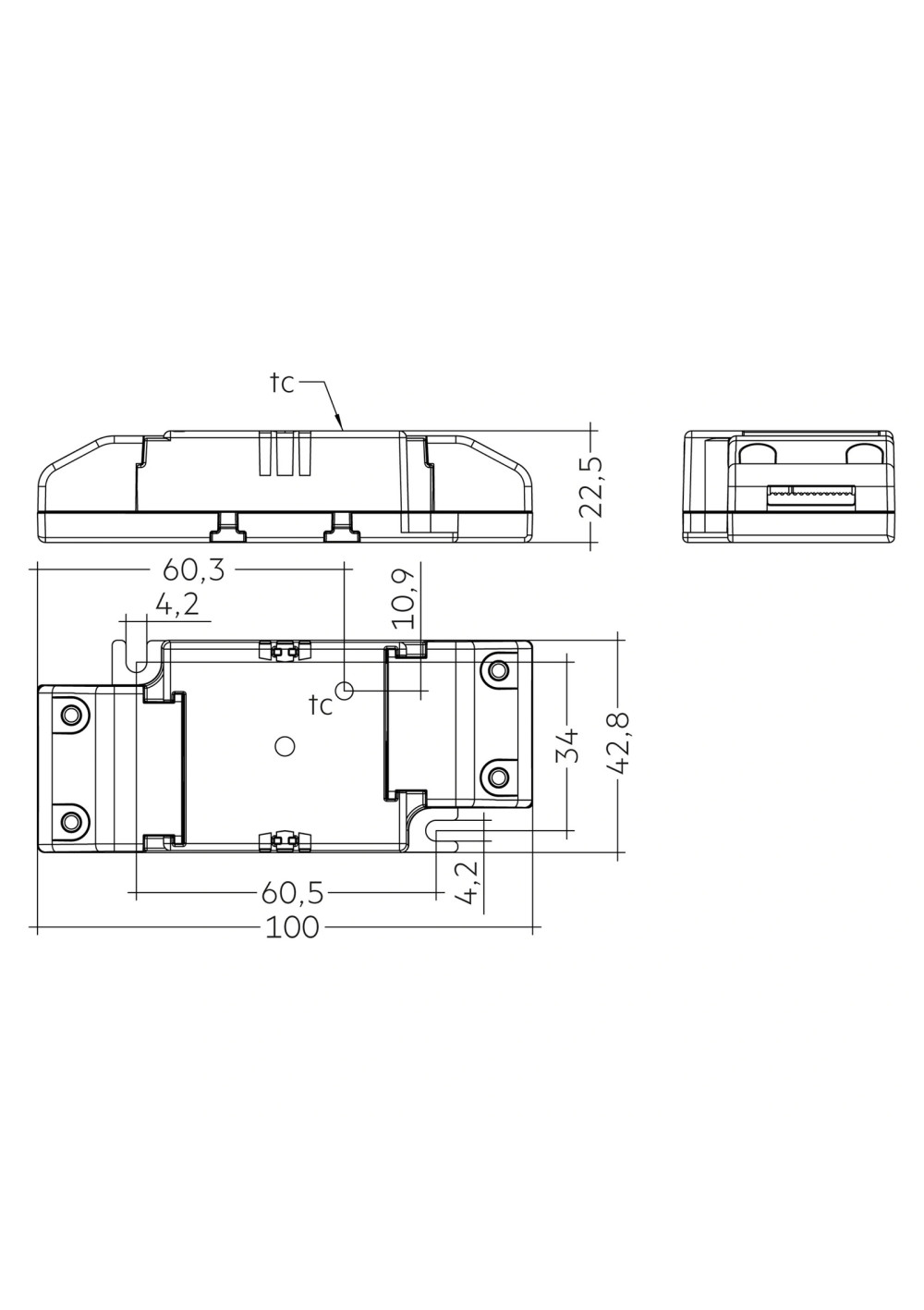

| Dimensions L×W×H | 100 × 43 × 22.5 mm |
| Lifetime [h] | up to 50000 h |
| Product net weight | 0.061 kg |
| short_circuit_protection | Yes |
| overload_protection | Yes |
| no_load_protection | Yes |
| Manufacturer note: Product description | Independent driver with strain-relief housing |
| Manufacturer note: Product description | Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids) |
| Manufacturer note: Product description | For luminaires of protection class I and protection class II |
| Manufacturer note: Product description | Temperature protection as per EN 61347-2-13 C5e |
| Manufacturer note: Product description | Output current 300 mA |
| Manufacturer note: Product description | Nominal lifetime up to 50,000 h |
| Manufacturer note: Product description | 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) |
| Manufacturer note: Housing properties | Casing: polycarbonate, white |
| Manufacturer note: Housing properties | Type of protection IP20 |
| Manufacturer note: Housing properties | Push-in terminals |
| Manufacturer note: Housing properties | 2 separate strain relief parts for input and output cables with highly robust clamps |
| Manufacturer note: Functions | Overload protection |
| Manufacturer note: Functions | Short-circuit protection |
| Manufacturer note: Functions | No-load protection |
| Manufacturer note: Functions | No output current overshoot at mains on/off |
| Manufacturer note: Functions | Burst protection voltage 1 kV |
| Manufacturer note: Functions | Burst protection voltage 1 kV (L to N) |
| Manufacturer note: Functions | Surge protection voltage 2 kV (L/N to earth) |
| Manufacturer note: Typical applications | For spot light and downlight in retail and hospitality applications |
| Manufacturer note: Typical applications | For panel light and area light in office and education application |
Operating points
| Point | Output current | Typ. current (at 230 V, 50 Hz, full load) | Min./Max. forward voltage | Max. output voltage | Typ. output power | Output power range | Power Consumption | Efficiency at min./full load | λ over full operating range (max.) | λ over full operating range (min.) | Output current tolerance, min./full load | Max. repetitive output peak current | Output current ripple | Ambient temperature ta | Max. casing temperature tc | Lifetime | Length | Width | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 300 mA | 70 mA | 30 V; 42 V | 60 V | 13 W | 9–12.6 W | 15 W; 15.5 W | 83.4 %; 86.6 % | 0.95 | 0.9C | ±7.5 % | 338 mA | ±3 % | 50 °C; -20–50 °C | 75 °C | up to 50000 h | 100 mm | 43 mm | 22.5 mm |
Installation / application
Select the load for the documented voltage and permissible power. Dimming and installation details apply only to interfaces documented for this article.
Additional information
Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.
Main source of information: www.tridonic.com
We make every effort to ensure that the information presented in this product description is complete, up to date and consistent with source documentation. However, product ranges and specifications may evolve and be updated, and some changes may not yet be reflected in our description. Inaccuracies or errors may also occur in the source documentation itself. If you have any doubts or notice an error, please contact us at bok@ledownia.pl.
zas_tridonic_87500947
Data sheet
- Rated power [W]
- 12.6
- Dimensions (L x W x H) [mm]
- 100 × 43 × 22.5 mm
- Length [mm]
- 100
- Width [mm]
- 43
- Height/thickness [mm]
- 22.5
- Warranty [years]
- 5
- Input voltage [V]
- 220-240
- Power factor
- 0.95
