Mean Well APC-35-700 35W 700mA 15–50V Constant Current (CC) LED driver
Mean Well APC-35-700 is a 35 W constant-current LED driver rated at 700 mA, with a 15 V–50 V output-voltage region.
Mean Well APC-35-700 35W 700mA 15–50V Constant Current (CC) LED driver
Minimum order quantity: 1. Order in multiples of 1.
53.65 PLN
Shipment in 1-2 business days
tm_APC-35-700
Mean Well APC-35-700 is a 35 W constant-current LED driver rated at 700 mA, with a 15 V–50 V output-voltage region.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
APC-35-700 – full product specification
Mean Well APC-35-700 is a APC-35-series power supply rated at 35 W. The parameters below come from the exact official manufacturer datasheet.
Constant-current output
The model regulates 700 mA across a 15 V–50 V DC voltage region.
Full technical specifications
| ac_input_current | 230 vac a: 0.5; 115 vac a: 0.75 |
|---|---|
| Fully isolated enclosure | Yes |
| Enclosure material | plastic |
| Cooling | free-air convection |
| current_accuracy_pct | 8 % |
| current_ripple_pct | 5 % |
| Dimensions | 84 × 57 × 29.5 mm |
| Document revision | APC-35-SPEC 2025-12-12 |
| Typical efficiency | 84 % |
| hold_up_time | 230 vac ms: 20; 115 vac ms: 12 |
| Input frequency | 47–63 Hz |
| Input range | 90–264 VAC / 127–370 VDC |
| Inrush current | 45 A |
| Insulation resistance | 100 MΩ |
| IP rating | IP42 |
| leads | standard: UL1569; gauge: 18AWG; length mm: 150; tolerance mm: 10 |
| Leakage current | 0.25 mA |
| Operating temperature | -30–70 °C |
| Rated current | 700 mA |
| Operating mode | Constant Current (CC) |
| CC-region maximum voltage | 50 V |
| CC-region minimum voltage | 15 V |
| Over-voltage protection range | 55–65 V |
| Over-voltage protection | Yes |
| Short-circuit protection | Yes |
| Rated power | 35 W |
| Manufacturer warranty | 2 years |
| Weight | 0.18 kg |
| Withstand voltage | 3 kVAC |

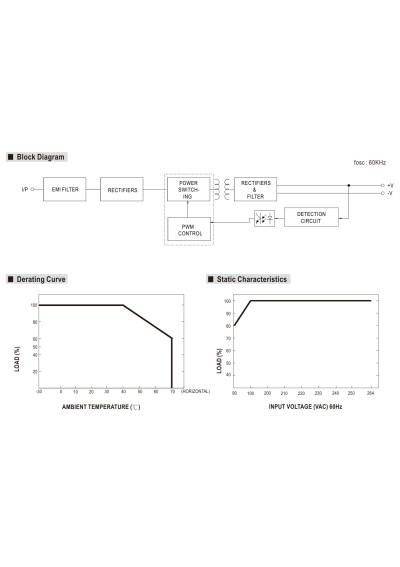

Manufacturer datasheet
Complete source specification: official Mean Well datasheet.
Manufacturer information: Mean Well states that the APC-35 series is not intended for LED lighting luminaire applications in the EU and China; the manufacturer recommends the LPF, NPF, XLG, XLC or XLN series.
tm_APC-35-700
Data sheet
- Power supply type
- Constant Current (CC)
- Rated power [W]
- 30,1-60
- Output Current of CC power supply [mA]
- 700
- CC operating window
- 15-50
- Min. output voltage of led driver (CC)
- 15
- Max. output voltage of led driver (CC)
- 50
- IP grade
- 42
- Length [mm]
- 84
- Width [mm]
- 57
- Height/thickness [mm]
- 29.5
- Warranty [years]
- 2
- Input voltage [V]
- 90-264
Specific References
- EAN13
- 4711287438665
- MPN
- APC-35-700
