Mean Well HLN-60H-36A 60 W CV+CC LED driver
Mean Well HLN-60H-36A 60 W CV+CC LED driver – dimensions

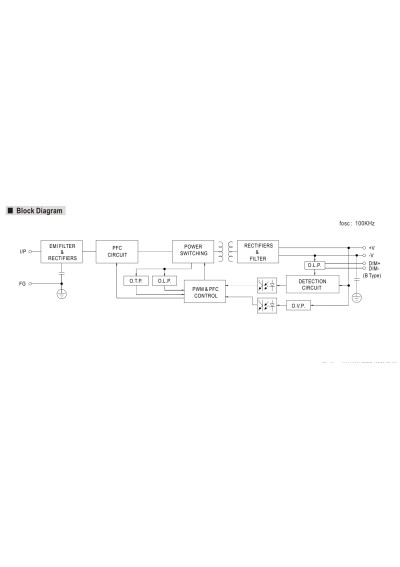

Mean Well HLN-60H-36A 60 W CV+CC LED driver – block diagram

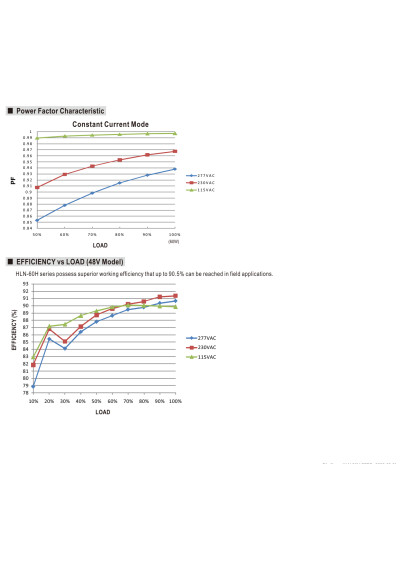

Mean Well HLN-60H-36A 60 W CV+CC LED driver – power factor characteristic

Mean Well HLN-60H-36A 60 W CV+CC LED driver

Minimum order quantity: 1. Order in multiples of 1.
146.33 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_HLN-60H-36A

Mean Well HLN-60H-36A is a 60 W CV+CC LED driver with a 12 V–20 V constant-current region.

Volume discounts

Quantity Discounted price
20+ 138.20 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

HLN-60H-36A – full product specification

Mean Well HLN-60H-36A is a HLN-60H-series power supply rated at 60 W. The parameters below come from the exact official manufacturer datasheet.

CV+CC operation

The driver combines voltage regulation and current limiting; its constant-current region is 12 V–20 V DC.

Full technical specifications

Fully isolated enclosureYes
Enclosure materialplastic
3-in-1 dimmingYes
Coolingfree-air convection
Dimensions161 × 61.5 × 35 mm
Document revisionHLN-60H-SPEC 2026-02-09
Typical efficiency88.5 %
hold_up_time230 vac ms: 16; 115 vac ms: 16
Input frequency47–63 Hz
Input range90–305 VAC / 127–431 VDC
Inrush current55 A
IP ratingIP64
Operating temperature-40–50 °C
Rated current4000 mA
Operating modeConstant voltage + constant current (CV+CC)
CC-region maximum voltage20 V
CC-region minimum voltage12 V
Output voltage20 V
Over-voltage protection range18–24 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power60 W
Manufacturer warranty3 years
Weight0.46 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

Manufacturer information: Mean Well states that the HLN-60H series is not intended for LED applications in the EU and China; the manufacturer recommends the LPF, NPF, XLG, XLC or XLN series.

tm_HLN-60H-36A

Data sheet

Power supply type
CV+CC
Rated power [W]
30,1-60
Output Current of CC power supply [mA]
4000
CC operating window
12-20
Min. output voltage of led driver (CC)
12
Max. output voltage of led driver (CC)
20
IP grade
64
Length [mm]
161
Width [mm]
61.5
Height/thickness [mm]
35
Warranty [years]
3
Input voltage [V]
90-305

Specific References

EAN13
4711287461045
MPN
HLN-60H-36A
