Mean Well LCM-60DA 60.3W 500–1400mA Constant Current (CC) LED driver
Mean Well LCM-60DA is a 60.3 W constant-current LED driver with DIP-selectable output from 500 mA to 1400 mA; each setting has its own valid voltage range.
Mean Well LCM-60DA 60.3W 500–1400mA Constant Current (CC) LED driver
271.08 PLN
Shipment in 1-2 business days
zas_MW_LCM-60DA
Mean Well LCM-60DA is a 60.3 W constant-current LED driver with DIP-selectable output from 500 mA to 1400 mA; each setting has its own valid voltage range.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LCM-60DA – full product specification
Mean Well LCM-60DA is an LED power supply from the LCM-60DA series with a 60.3 W rated output. The verified manufacturer datasheet data below supports correct circuit and operating-condition selection.
Current selection and operating range
This constant-current driver provides DIP-selectable output from 500 mA to 1400 mA. Every setting has its own valid voltage range; the overall extremes are not one universal operating window.

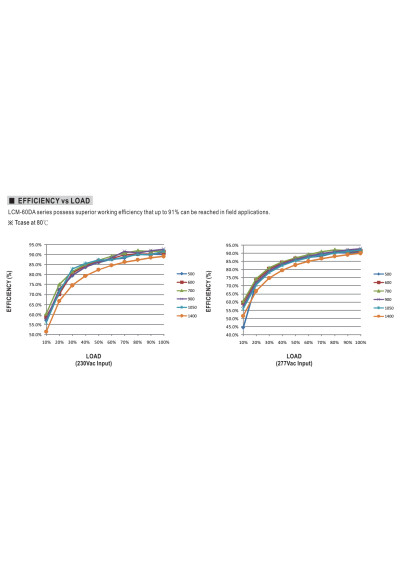

Input and efficiency
The specified input range is 180–295 VAC / 254–392 VDC. The input frequency range is 47–63 Hz.
DIP-switch output settings
| Output current | Operating voltage range | Power / power limit |
|---|---|---|
| 500 mA | 2–90 V DC | 45 W |
| 600 mA | 2–90 V DC | 54 W |
| 700 mA | 2–86 V DC | 60.2 W |
| 900 mA | 2–67 V DC | 60.3 W |
| 1050 mA | 2–57 V DC | 59.85 W |
| 1400 mA | 2–42 V DC | 58.8 W |
Full technical specifications
| Manufacturer | Mean Well |
|---|---|
| Series | LCM-60DA |
| Model | LCM-60DA |
| Operating mode | Constant Current (CC) |
| Rated power | 60.3 W |
| Minimum output current | 500 mA |
| Maximum output current | 1400 mA |
| Input voltage range | 180–295 VAC / 254–392 VDC |
| Input frequency | 47–63 Hz |
| Inrush current | 20 A |
| DALI control | Yes |
| PUSH dimming | Yes |
| Short-circuit protection | Yes |
| Dimensions (L × W × H) | 123.5 × 81.5 × 23 mm |
| Manufacturer warranty | 3 years |
Protection and construction
- Short-circuit protection: Yes
Operating conditions and mechanical data
Dimensions (L × W × H): 123.5 × 81.5 × 23 mm; Manufacturer warranty: 3 years.
Manufacturer datasheet
The complete source specification is available directly from the manufacturer: Official Mean Well datasheet — LCM-60DA-SPEC 2026-02-09.
Manufacturer lifecycle information: Mean Well lists LCM-60DA as EOL effective 2026.07 and names LCM-60DA2 as successor models or families; this does not imply automatic 1:1 electrical interchangeability.
zas_MW_LCM-60DA
Data sheet
- Power supply type
- Constant Current (CC)
- Rated power [W]
- 60,1-100
- Dimming / Control
- DALI
- Dimensions (L x W x H) [mm]
- IP grade
- 20
- Case type of power supply
- Isolated / secured
- Case material
- Plastic
- Length [mm]
- 123.5
- Width [mm]
- 81.5
- Height/thickness [mm]
- 23
- Warranty [years]
- 3
- Input voltage [V]
- 180-295
- Interface
- Protected / closed screw terminals
- Working temperature
- - 30°C + 60°C
- Min. current of CC driver [mA]
- 500
- Max. current of CC driver [mA]
- 1400
Specific References
- MPN
- LCM-60DA
