LED power supply Tridonic LC 20W 200-350mA 67V flexCC lp SNC4

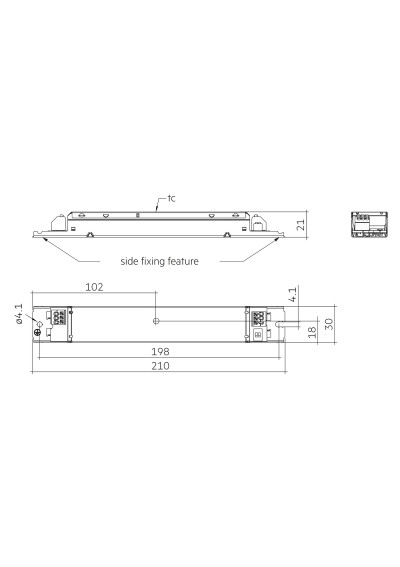

Dimensional drawing LC 20W 200-350mA 67V flexCC lp SNC4

LED power supply Tridonic LC 20/200-350/67 flexCC lp SNC4

Name: LED power supply Tridonic LC 20/200-350/67 flexCC lp SNC4
Brand: Tridonic
SKU: zas_tridonic_87501098
Price: 57.72 PLN
Availability: InStock

57.72 PLN

Shipment in 1-2 business days

Category: Constant Current (CC)

Reference: zas_tridonic_87501098

LED power supply Tridonic LC 20W 200-350mA 67V flexCC lp SNC4 is a constant current LED driver rated up to 20.3 W. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.

Delivery

1-3 dni (PL), 3-10 dni (non-PL)

Return Policy

14 days

Description
Product Details

LED power supply Tridonic LC 20W 200-350mA 67V flexCC lp SNC4 is a constant current LED driver in the Driver LC 20W 200-350mA 67V flexCC lp SNC4 family. Official article number 87501098 identifies this physical version.

Key properties

Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.

Technical specifications

Manufacturer article number	87501098
Manufacturer family	Driver LC 20W 200-350mA 67V flexCC lp SNC4
Manufacturer product group	Linear drivers
Supply voltage	220 – 240 V
AC voltage range	198 – 264 V
Mains frequency	50 / 60 Hz
Overvoltage protection	320 V AC, 48 h
Leakage current	<0.45 mA
Input current	120 mA
Output power range	5.4–20.3 W
Typ. efficiency at 230 V	86.2 %
λ over full operating range (max.)	0.96
λ over full operating range (min.)	0.6C
THD at 230V, full load	<20 %
Starting time	≤0.5 s
Turn off time	≤0.15 s
Hold on time	<0.3 s
Output current tolerance, min./full load	±7.5 %
Max. repetitive output peak current	395 mA
Output LF current ripple (< 120 Hz) / Current ripple at full load	±5 %
Output P_ST_LM (at full load)	≤1
Output SVM (at full load)	≤0.4
Max. output voltage	250 V
Mains surge capability (between L - N)	1 kV
Mains surge capability (between L/N - PE)	2 kV
(Mains) burst capability	1 kV
Surge voltage at output side (against PE)	2.5 kV
Ambient temperature ta	60 °C
Storage temperature ts	-40–80 °C
Type of protection	IP20
Length	210 mm
Width	30 mm
Height	21 mm
Hole spacing	198 mm
Lifetime	up to 50000 h
Guarantee	5 years
Output mode	CC
Maximum output power [W]	20.3
Input voltage	220 – 240 V
IP grade	IP20
Warranty [years]	5
Storage temperature	-40–80 °C
THD	<20 %
Typ. efficiency at 230 V	86.2 %
λ over full operating range (max.)	0.96
Dimensions L×W×H	210 × 30 × 21 mm
Lifetime [h]	up to 50000 h
Product net weight	0.107 kg
short_circuit_protection	Yes
overload_protection	Yes
no_load_protection	Yes
Manufacturer note: Product description	LED Constant current LED driver for luminaire installation
Manufacturer note: Product description	For class I luminaires
Manufacturer note: Product description	Temperature protection as per EN 61347-2-13 C5e
Manufacturer note: Product description	Selectable fixed output current 200, 250, 300 and 350 mA (pre-selected current 350 mA)
Manufacturer note: Product description	Max. output power 20.3 W
Manufacturer note: Product description	Up to 86.2 % efficiency
Manufacturer note: Product description	Nominal lifetime up to 50,000 h
Manufacturer note: Product description	5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
Manufacturer note: Housing properties	Casing: metal, white
Manufacturer note: Housing properties	Type of protection IP20
Manufacturer note: Functions	Overload protection
Manufacturer note: Functions	Short-circuit protection
Manufacturer note: Functions	No-load protection

Operating points

Point	Output current	Min./Max. forward voltage	Typ. current consumption	Output power	Typ. power consumption	Ambient temperature ta	tc point max	Resistor / I-out select
1	200.0 mA	27 V; 67 V	78 mA	13.4 W	16.1 W	-20–60 °C	75.0 °C	1=off / 2=off
2	250.0 mA	27 V; 67 V	93 mA	16.8 W	19.9 W	-20–60 °C	75.0 °C	1=on / 2=off
3	300.0 mA	27 V; 67 V	108 mA	20.1 W	23.4 W	-20–60 °C	80.0 °C	1=off / 2=on
4	350.0 mA	27 V; 58 V	110 mA	20.3 W	23.9 W	-20–60 °C	80.0 °C	1=on / 2=on

The Vmin/Vmax and CC operating-window filter features represent the global envelope of all documented settings. The complete operating-point table defines the permitted voltage at each current setting.

Installation / application

Select LED modules by comparing their forward voltage and current with the operating window at the chosen setting. Maximum tc and permissible ambient temperature apply under the conditions stated for each operating point.

Additional information

Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.
