Mean Well HLG-240H-42B 240.24 W CV+CC LED driver Mean Well HLG-240H-42B 240.24 W CV+CC LED driver – dimensions Mean Well HLG-240H-42B 240.24 W CV+CC LED driver – block diagram Mean Well HLG-240H-42B 240.24 W CV+CC LED driver – dimming diagram Mean Well HLG-240H-42B 240.24 W CV+CC LED driver – efficiency versus load characteristic Mean Well HLG-240H-42B 240.24 W CV+CC LED driver – static characteristic
Mean Well HLG-240H-42B 240.24 W CV+CC LED driver
Mean Well HLG-240H-42B 240.24 W CV+CC LED driver – dimensions

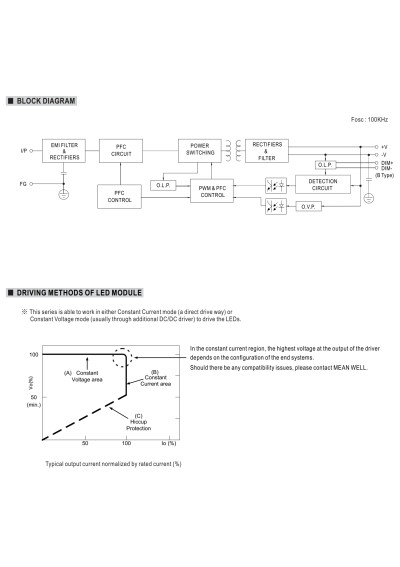

Mean Well HLG-240H-42B 240.24 W CV+CC LED driver – block diagram

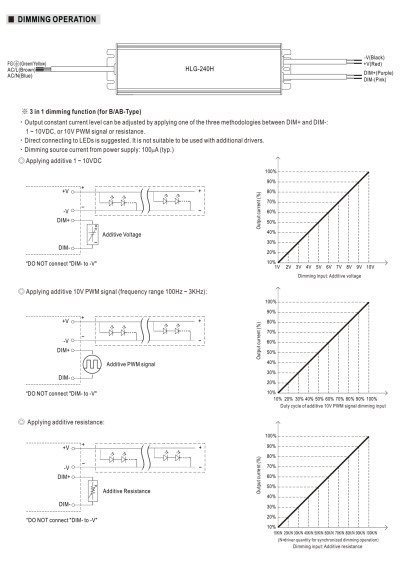

Mean Well HLG-240H-42B 240.24 W CV+CC LED driver – dimming diagram

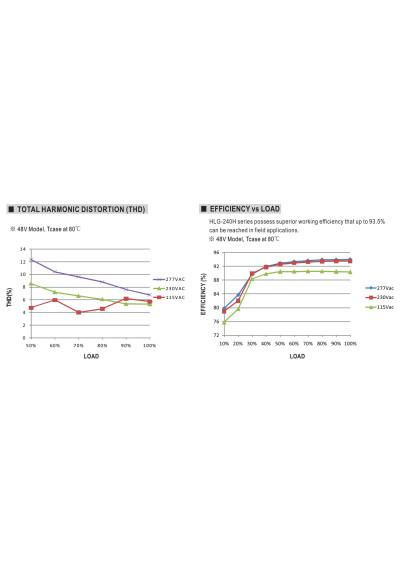

Mean Well HLG-240H-42B 240.24 W CV+CC LED driver – efficiency versus load characteristic

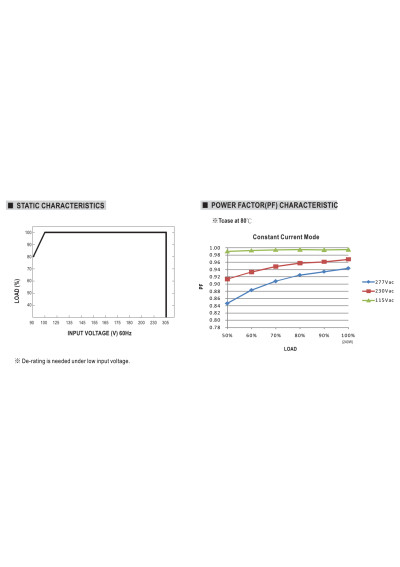

Mean Well HLG-240H-42B 240.24 W CV+CC LED driver – static characteristic

Mean Well HLG-240H-42B 240.24 W CV+CC LED driver

Minimum order quantity: 1. Order in multiples of 1.
325.20 PLN
Shipment in 1-2 business days
Constant Current (CC)
tm_HLG-240H-42B

Mean Well HLG-240H-42B is a 240.24 W CV+CC LED driver with a 21 V–42 V constant-current region.

Volume discounts

Quantity Discounted price
5+ 317.07 PLN
10+ 300.80 PLN
20+ 284.54 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

HLG-240H-42B – full product specification

Mean Well HLG-240H-42B is a HLG-240H-series power supply rated at 240.24 W. The parameters below come from the exact official manufacturer datasheet.

CV+CC operation

The driver combines voltage regulation and current limiting; its constant-current region is 21 V–42 V DC.

Full technical specifications

3-in-1 dimmingYes
Dimensions244.2 × 68 × 38.8 mm
Document revisionHLG-240H-SPEC 2026-02-04
Typical efficiency92.5 %
Input frequency47–63 Hz
Input range90–305 VAC / 127–431 VDC
Inrush current75 A
IP ratingIP65
Rated current5720 mA
Operating modeConstant voltage + constant current (CV+CC)
CC-region maximum voltage42 V
CC-region minimum voltage21 V
Output voltage42 V
Over-voltage protection range48–54 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power240.24 W
Manufacturer warranty7 years
Weight1.3 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_HLG-240H-42B

Data sheet

Power supply type
CV+CC
Rated power [W]
100,1-249
Output Current of CC power supply [mA]
5720
CC operating window
21-42
Min. output voltage of led driver (CC)
21
Max. output voltage of led driver (CC)
42
IP grade
65
Length [mm]
244.2
Width [mm]
68
Height/thickness [mm]
38.8
Warranty [years]
7
Input voltage [V]
90-305

Specific References

EAN13
4711287450698
MPN
HLG-240H-42B
