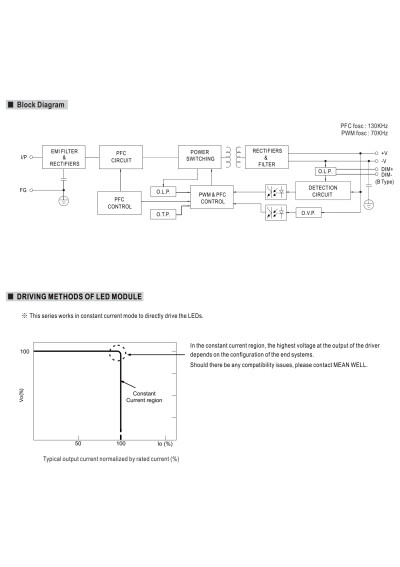

Mean Well HVGC-150-1400AB 149.8 W CC LED driver 1400 mA – block diagram

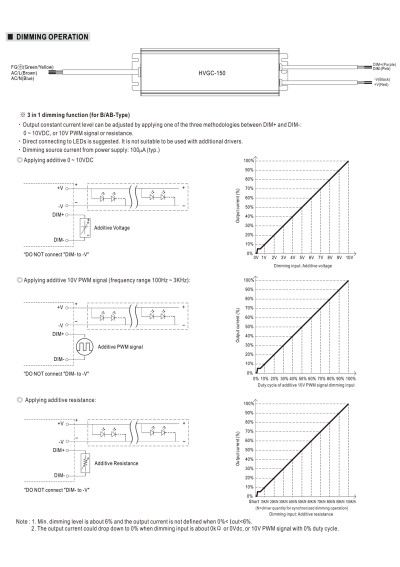

Mean Well HVGC-150-1400AB 149.8 W CC LED driver 1400 mA – dimming diagram

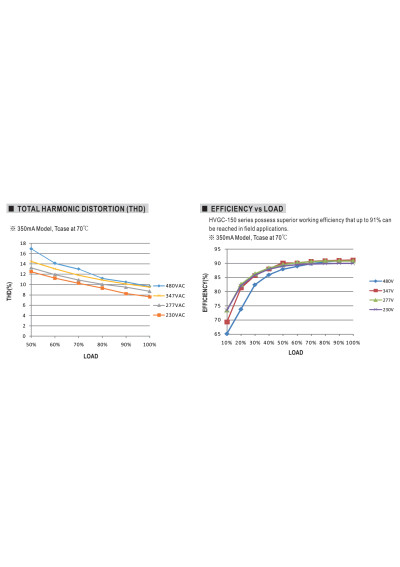

Mean Well HVGC-150-1400AB 149.8 W CC LED driver 1400 mA – efficiency versus load characteristic

Mean Well HVGC-150-1400AB 149.8W 1400mA 12–107V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
365.85 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_HVGC-150-1400AB

Mean Well HVGC-150-1400AB is a 149.8 W constant-current LED driver rated at 1400 mA, with a 12 V–107 V output-voltage region.

Volume discounts

Quantity Discounted price
5+ 349.59 PLN
10+ 333.33 PLN
20+ 308.93 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

HVGC-150-1400AB – full product specification

Mean Well HVGC-150-1400AB is a HVGC-150-series power supply rated at 149.8 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 1400 mA across a 12 V–107 V DC voltage region.

Full technical specifications

3-in-1 dimmingYes
current_ripple_pct8 %
Dimensions245 × 68 × 38.8 mm
Document revisionHVGC-150-SPEC 2025-10-10
Typical efficiency90 %
Input frequency47–63 Hz
IP ratingIP65
Rated current1400 mA
Operating modeConstant Current (CC)
CC-region maximum voltage107 V
CC-region minimum voltage12 V
Over-voltage protection range113–124 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power149.8 W
Manufacturer warranty5 years
Weight1.24 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_HVGC-150-1400AB

Data sheet

Power supply type
Constant Current (CC)
Rated power [W]
100,1-249
Output Current of CC power supply [mA]
1400
CC operating window
12-107
Min. output voltage of led driver (CC)
12
Max. output voltage of led driver (CC)
107
IP grade
65
Length [mm]
245
Width [mm]
68
Height/thickness [mm]
38.8
Warranty [years]
5

Specific References

EAN13
4711287482088
MPN
HVGC-150-1400AB
