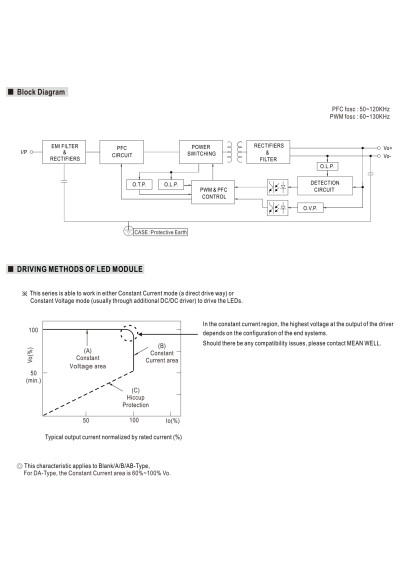

Mean Well ELG-100-48AB 96 W CV+CC LED driver – block diagram

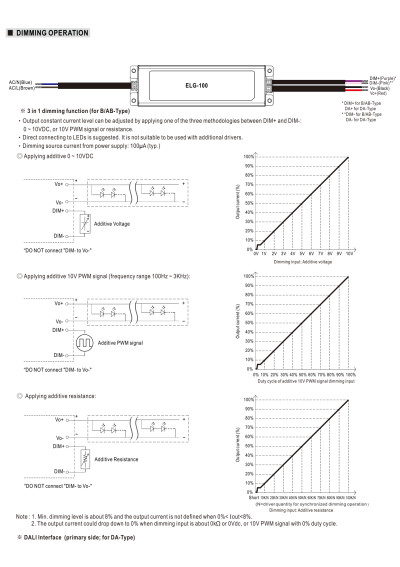

Mean Well ELG-100-48AB 96 W CV+CC LED driver – dimming diagram

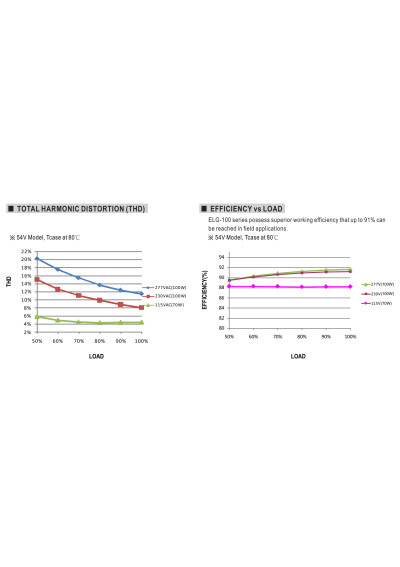

Mean Well ELG-100-48AB 96 W CV+CC LED driver – efficiency versus load characteristic

Mean Well ELG-100-48AB 96 W CV+CC LED driver

Minimum order quantity: 1. Order in multiples of 1.
186.98 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_ELG-100-48AB

Mean Well ELG-100-48AB is a 96 W CV+CC LED driver with a 24 V–48 V constant-current region.

Volume discounts

Quantity Discounted price
5+ 178.85 PLN
10+ 170.72 PLN
20+ 162.59 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

ELG-100-48AB – full product specification

Mean Well ELG-100-48AB is a ELG-100-series power supply rated at 96 W. The parameters below come from the exact official manufacturer datasheet.

CV+CC operation

The driver combines voltage regulation and current limiting; its constant-current region is 24 V–48 V DC.

Full technical specifications

DALI controlYes
3-in-1 dimmingYes
Dimensions199 × 63 × 35.5 mm
Document revisionELG-100-SPEC 2026-07-06
Typical efficiency90 %
Input frequency47–63 Hz
Input range100–305 VAC / 142–431 VDC
Inrush current60 A
IP ratingIP65
Rated current2000 mA
Operating modeConstant voltage + constant current (CV+CC)
CC-region maximum voltage48 V
CC-region minimum voltage24 V
Output voltage48 V
Over-voltage protection range54–62 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power96 W
Manufacturer warranty5 years
Weight0.85 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_ELG-100-48AB

Data sheet

Power supply type
CV+CC
Rated power [W]
60,1-100
Output Current of CC power supply [mA]
2000
CC operating window
24-48
Min. output voltage of led driver (CC)
24
Max. output voltage of led driver (CC)
48
IP grade
65
Length [mm]
199
Width [mm]
63
Height/thickness [mm]
35.5
Warranty [years]
5
Input voltage [V]
100-305

Specific References

EAN13
4711287440460
MPN
ELG-100-48AB
