• Online only
Mean Well ELG-200-C1050A 199.5 W CC LED driver 1050 mA Mean Well ELG-200-C1050A 199.5 W CC LED driver 1050 mA – dimensions Mean Well ELG-200-C1050A 199.5 W CC LED driver 1050 mA – block diagram Mean Well ELG-200-C1050A 199.5 W CC LED driver 1050 mA – dimming diagram Mean Well ELG-200-C1050A 199.5 W CC LED driver 1050 mA – efficiency versus load characteristic
Mean Well ELG-200-C1050A 199.5 W CC LED driver 1050 mA
Mean Well ELG-200-C1050A 199.5 W CC LED driver 1050 mA – dimensions

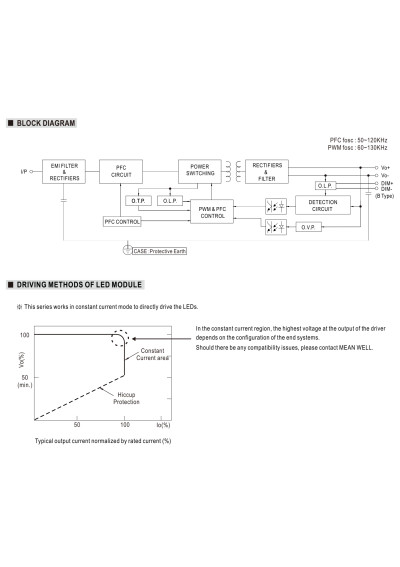

Mean Well ELG-200-C1050A 199.5 W CC LED driver 1050 mA – block diagram

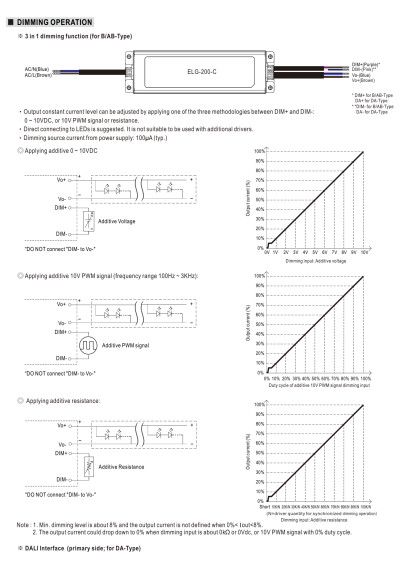

Mean Well ELG-200-C1050A 199.5 W CC LED driver 1050 mA – dimming diagram

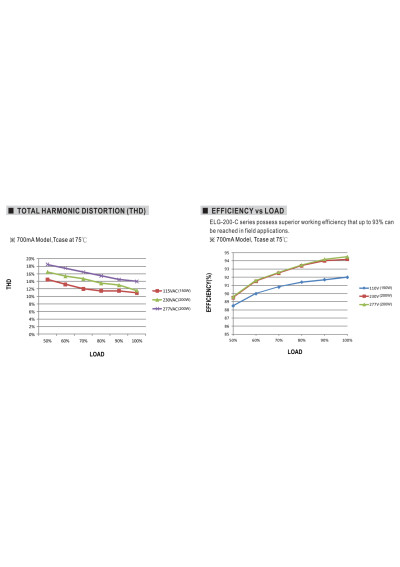

Mean Well ELG-200-C1050A 199.5 W CC LED driver 1050 mA – efficiency versus load characteristic

Mean Well ELG-200-C1050A 199.5W 1050mA 95–190V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
227.63 PLN
Shipment in 1-2 business days
Constant Current (CC)
tm_ELG-200-C1050A

Mean Well ELG-200-C1050A is a 199.5 W constant-current LED driver rated at 1050 mA, with a 95 V–190 V output-voltage region.

Volume discounts

Quantity Discounted price
5+ 219.50 PLN
10+ 211.37 PLN
20+ 195.11 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

ELG-200-C1050A – full product specification

Mean Well ELG-200-C1050A is a ELG-200-C-series power supply rated at 199.5 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 1050 mA across a 95 V–190 V DC voltage region.

Full technical specifications

DALI controlYes
3-in-1 dimmingYes
current_ripple_pct5 %
Dimensions244 × 71 × 37.5 mm
Document revisionELG-200-C-SPEC 2026-07-06
Typical efficiency93 %
Input frequency47–63 Hz
Input range100–305 VAC / 142–431 VDC
Inrush current65 A
IP ratingIP65
Rated current1050 mA
Operating modeConstant Current (CC)
CC-region maximum voltage190 V
CC-region minimum voltage95 V
Over-voltage protection range205–250 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power199.5 W
Manufacturer warranty5 years
Weight1.22 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_ELG-200-C1050A

Data sheet

Power supply type
Constant Current (CC)
Rated power [W]
100,1-249
Output Current of CC power supply [mA]
1050
CC operating window
95-190
Min. output voltage of led driver (CC)
95
Max. output voltage of led driver (CC)
190
IP grade
65
Length [mm]
244
Width [mm]
71
Height/thickness [mm]
37.5
Warranty [years]
5
Input voltage [V]
100-305

Specific References

EAN13
4711287445595
MPN
ELG-200-C1050A
