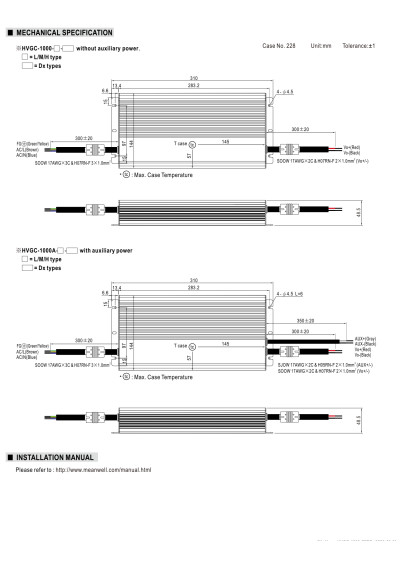

Mean Well HVGC-1000A-H-AB 1008 W CC LED driver 5600 mA – dimensions

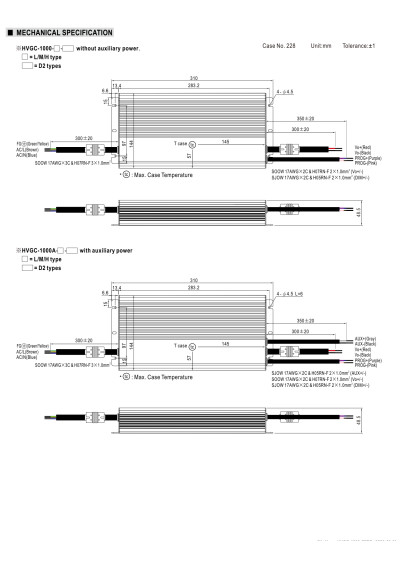

Mean Well HVGC-1000A-H-AB 1008 W CC LED driver 5600 mA – dimensions
Mean Well HVGC-1000A-H-AB 1008 W CC LED driver 5600 mA – dimensions
Mean Well HVGC-1000A-H-AB 1008 W CC LED driver 5600 mA – dimensions

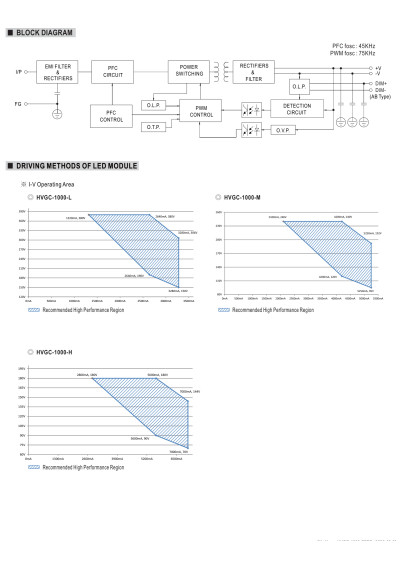

Mean Well HVGC-1000A-H-AB 1008 W CC LED driver 5600 mA – block diagram

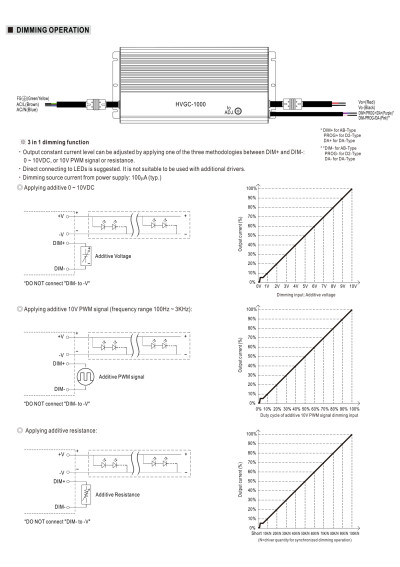

Mean Well HVGC-1000A-H-AB 1008 W CC LED driver 5600 mA – dimming diagram

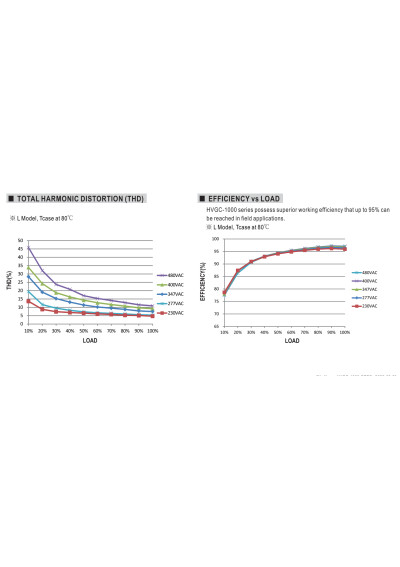

Mean Well HVGC-1000A-H-AB 1008 W CC LED driver 5600 mA – efficiency versus load characteristic

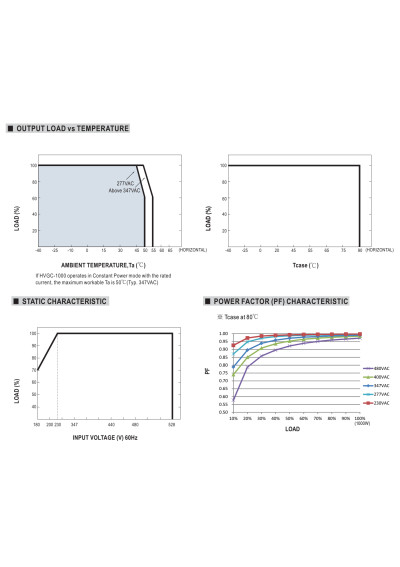

Mean Well HVGC-1000A-H-AB 1008 W CC LED driver 5600 mA – load versus temperature characteristic

Mean Well HVGC-1000A-H-AB 1008W 5600mA 70–180V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
1,707.31 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_HVGC-1000A-H-AB

Mean Well HVGC-1000A-H-AB is a 1008 W constant-current LED driver rated at 5600 mA, with a 70 V–180 V output-voltage region.

Volume discounts

Quantity Discounted price
5+ 1,626.01 PLN
10+ 1,544.71 PLN
20+ 1,463.41 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

HVGC-1000A-H-AB – full product specification

Mean Well HVGC-1000A-H-AB is a HVGC-1000-series power supply rated at 1008 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 5600 mA across a 70 V–180 V DC voltage region.

Full technical specifications

DALI controlYes
3-in-1 dimmingYes
current_ripple_pct3 %
Dimensions310 × 144 × 48.5 mm
Document revisionHVGC-1000-SPEC 2026-02-09
Typical efficiency96 %
Input frequency47–63 Hz
IP ratingIP67
Rated current5600 mA
Operating modeConstant Current (CC)
CC-region maximum voltage180 V
CC-region minimum voltage70 V
Over-voltage protection range190–205 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power1008 W
Manufacturer warranty5 years
Weight4.4 kg
Withstand voltage3 kVAC

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_HVGC-1000A-H-AB

Data sheet

Power supply type
Constant Current (CC)
Output Current of CC power supply [mA]
5600
CC operating window
70-180
Min. output voltage of led driver (CC)
70
Max. output voltage of led driver (CC)
180
IP grade
67
Length [mm]
310
Width [mm]
144
Height/thickness [mm]
48.5
Warranty [years]
5

Specific References

EAN13
4711287455051
MPN
HVGC-1000A-H-AB
New
