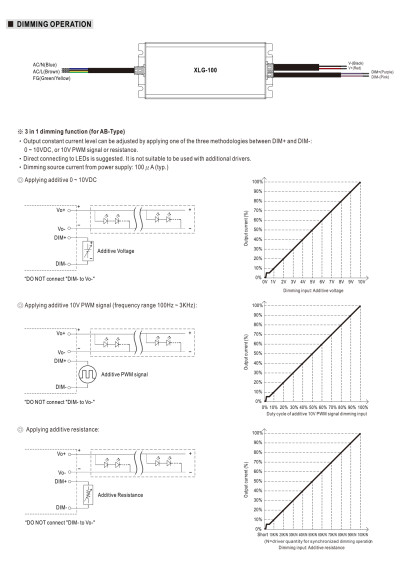

Mean Well XLG-100-H-A 100 W constant-power LED driver – dimming diagram

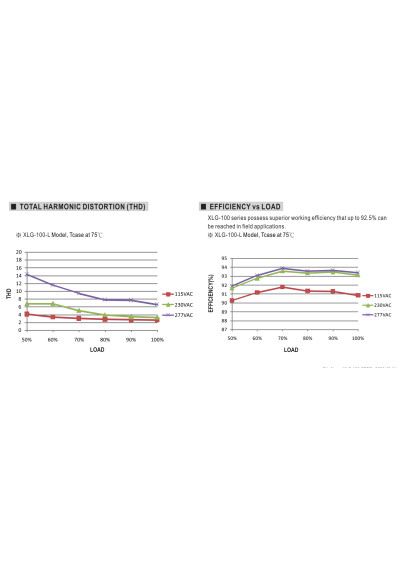

Mean Well XLG-100-H-A 100 W constant-power LED driver – efficiency versus load characteristic

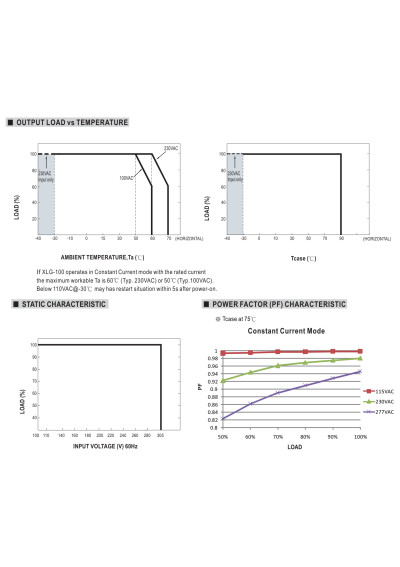

Mean Well XLG-100-H-A 100 W constant-power LED driver – load versus temperature characteristic

Mean Well XLG-100-H-A 100 W constant-power LED driver

Minimum order quantity: 1. Order in multiples of 1.
121.94 PLN
Shipment in 1-2 business days
Constant Current (CC)
tm_XLG-100-H-A

Mean Well XLG-100-H-A is a 100 W constant-power LED driver with a 1750 mA–2780 mA current-setting envelope.

Volume discounts

Quantity Discounted price
10+ 113.81 PLN
20+ 105.68 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

XLG-100-H-A – full product specification

Mean Well XLG-100-H-A is a XLG-100-series power supply rated at 100 W. The parameters below come from the exact official manufacturer datasheet.

Constant-power characteristic

Full power is available across a 1750 mA–2780 mA current envelope and 27 V–56 V DC voltage region.

Full technical specifications

3-in-1 dimmingYes
current_ripple_pct3 %
Dimensions140 × 63 × 32 mm
Document revisionXLG-100-SPEC 2026-02-04
Typical efficiency91 %
Input frequency47–63 Hz
Input range100–305 VAC / 142–431 VDC
Inrush current50 A
IP ratingIP67
Rated current2100 mA
Maximum adjustable current2780 mA
Minimum adjustable current1750 mA
Operating modeConstant voltage + constant current (CV+CC)
CC-region maximum voltage56 V
CC-region minimum voltage27 V
Output voltage24 V
Constant-power characteristicYes
Over-voltage protectionYes
Short-circuit protectionYes
Rated power100 W
Manufacturer warranty5 years
Weight0.58 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_XLG-100-H-A

Data sheet

Power supply type
CV+CC
Rated power [W]
60,1-100
IP grade
67
Length [mm]
140
Width [mm]
63
Height/thickness [mm]
32
Warranty [years]
5
Input voltage [V]
100-305
Min. current of CC driver [mA]
1750
Max. current of CC driver [mA]
2780

Specific References

EAN13
4711287456959
MPN
XLG-100-H-A
New
