Mean Well HLG-80H-48 81.6 W CV+CC LED driver
Mean Well HLG-80H-48 is a 81.6 W CV+CC LED driver with a 28.8 V–48 V constant-current region.
Mean Well HLG-80H-48 81.6 W CV+CC LED driver
Minimum order quantity: 1. Order in multiples of 1.
186.98 PLN
Shipment in 8-10 working days
tm_HLG-80H-48
Mean Well HLG-80H-48 is a 81.6 W CV+CC LED driver with a 28.8 V–48 V constant-current region.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
HLG-80H-48 – full product specification
Mean Well HLG-80H-48 is a HLG-80H-series power supply rated at 81.6 W. The parameters below come from the exact official manufacturer datasheet.
CV+CC operation
The driver combines voltage regulation and current limiting; its constant-current region is 28.8 V–48 V DC.
Full technical specifications
| 3-in-1 dimming | Yes |
|---|---|
| Dimensions | 195.6 × 61.5 × 38.8 mm |
| Document revision | HLG-80H-SPEC 20260-02-04 |

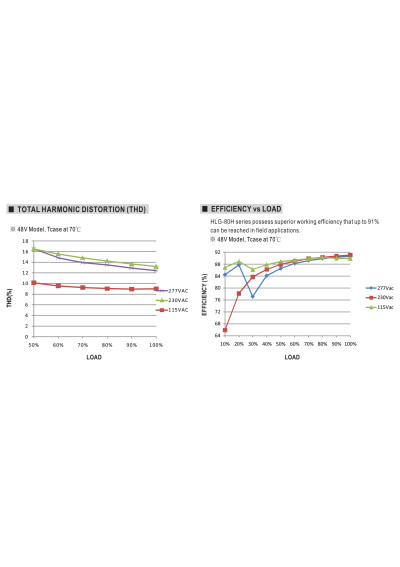

| Typical efficiency | 91 % |
| Input frequency | 47–63 Hz |
| Input range | 90–305 VAC / 127–431 VDC |
| Inrush current | 70 A |
| IP rating | IP65 |
| Rated current | 1700 mA |
| Operating mode | Constant voltage + constant current (CV+CC) |
| CC-region maximum voltage | 48 V |
| CC-region minimum voltage | 28.8 V |
| Output voltage | 48 V |
| Over-voltage protection range | 54–63 V |
| Over-voltage protection | Yes |
| Short-circuit protection | Yes |
| Rated power | 81.6 W |
| Manufacturer warranty | 7 years |
| Weight | 0.84 kg |
Manufacturer datasheet
Complete source specification: official Mean Well datasheet.
tm_HLG-80H-48
Data sheet
- Power supply type
- CV+CC
- Rated power [W]
- 60,1-100
- Output Current of CC power supply [mA]
- 1700
- CC operating window
- 28.8-48
- Min. output voltage of led driver (CC)
- 28.8
- Max. output voltage of led driver (CC)
- 48
- IP grade
- 65
- Length [mm]
- 195.6
- Width [mm]
- 61.5
- Height/thickness [mm]
- 38.8
- Warranty [years]
- 7
- Input voltage [V]
- 90-305
Specific References
- EAN13
- 4711287449012
- MPN
- HLG-80H-48
