• Online only
Mean Well HLG-320H-C1400DA 320.6 W CC LED driver 1400 mA Mean Well HLG-320H-C1400DA 320.6 W CC LED driver 1400 mA – dimensions Mean Well HLG-320H-C1400DA 320.6 W CC LED driver 1400 mA – block diagram Mean Well HLG-320H-C1400DA 320.6 W CC LED driver 1400 mA – dimming diagram Mean Well HLG-320H-C1400DA 320.6 W CC LED driver 1400 mA – efficiency versus load characteristic
Mean Well HLG-320H-C1400DA 320.6 W CC LED driver 1400 mA
Mean Well HLG-320H-C1400DA 320.6 W CC LED driver 1400 mA – dimensions

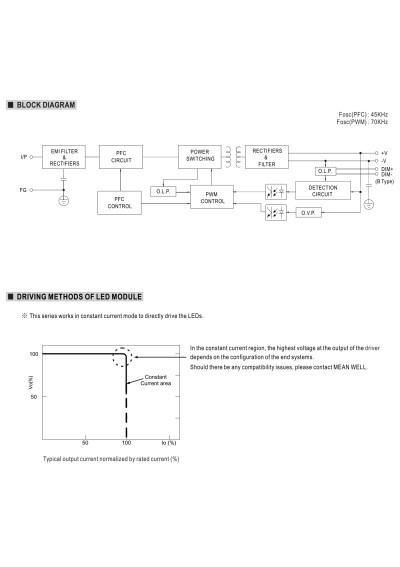

Mean Well HLG-320H-C1400DA 320.6 W CC LED driver 1400 mA – block diagram

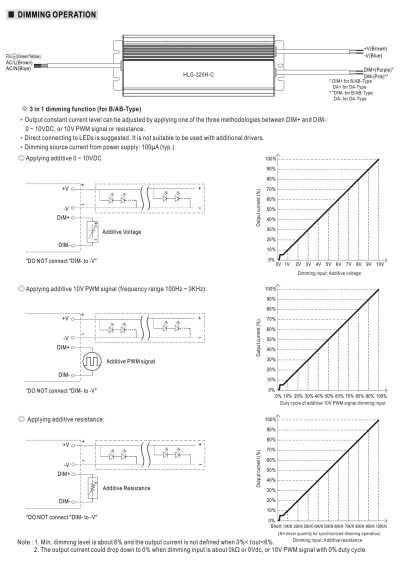

Mean Well HLG-320H-C1400DA 320.6 W CC LED driver 1400 mA – dimming diagram

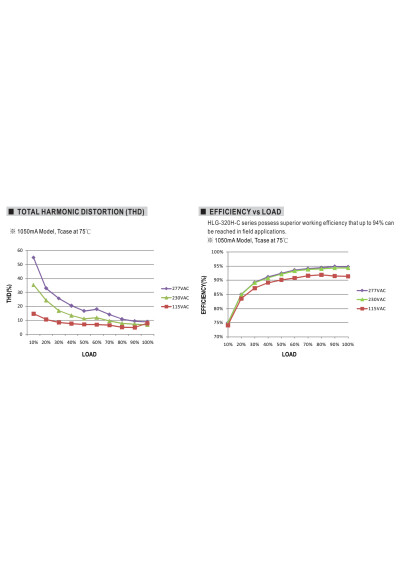

Mean Well HLG-320H-C1400DA 320.6 W CC LED driver 1400 mA – efficiency versus load characteristic

Mean Well HLG-320H-C1400DA 320.6W 1400mA 114–229V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
463.41 PLN
Shipment in 1-2 business days
Constant Current (CC)
tm_HLG-320H-C1400DA

Mean Well HLG-320H-C1400DA is a 320.6 W constant-current LED driver rated at 1400 mA, with a 114 V–229 V output-voltage region.

Volume discounts

Quantity Discounted price
5+ 439.02 PLN
10+ 422.76 PLN
20+ 390.24 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

HLG-320H-C1400DA – full product specification

Mean Well HLG-320H-C1400DA is a HLG-320H-C-series power supply rated at 320.6 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 1400 mA across a 114 V–229 V DC voltage region.

Full technical specifications

DALI controlYes
3-in-1 dimmingYes
current_ripple_pct5 %
Dimensions252 × 90 × 43.8 mm
Document revisionHLG-320H-C-SPEC 2026-02-04
Typical efficiency94 %
Input frequency47–63 Hz
Input range90–305 VAC / 127–417 VDC
Inrush current70 A
IP ratingIP65
Rated current1400 mA
Operating modeConstant Current (CC)
CC-region maximum voltage229 V
CC-region minimum voltage114 V
Over-voltage protection range235–252 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power320.6 W
Manufacturer warranty7 years
Weight1.88 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_HLG-320H-C1400DA

Data sheet

Power supply type
Constant Current (CC)
Rated power [W]
250-499
Output Current of CC power supply [mA]
1400
CC operating window
114-229
Min. output voltage of led driver (CC)
114
Max. output voltage of led driver (CC)
229
IP grade
65
Length [mm]
252
Width [mm]
90
Height/thickness [mm]
43.8
Warranty [years]
7
Input voltage [V]
90-305

Specific References

EAN13
4711287452654
MPN
HLG-320H-C1400DA
