Mean Well HLG-80H-24AB 81.6 W CV+CC LED driver Mean Well HLG-80H-24AB 81.6 W CV+CC LED driver – dimensions Mean Well HLG-80H-24AB 81.6 W CV+CC LED driver – block diagram Mean Well HLG-80H-24AB 81.6 W CV+CC LED driver – dimming diagram Mean Well HLG-80H-24AB 81.6 W CV+CC LED driver – efficiency versus load characteristic Mean Well HLG-80H-24AB 81.6 W CV+CC LED driver – static characteristic
Mean Well HLG-80H-24AB 81.6 W CV+CC LED driver
Mean Well HLG-80H-24AB 81.6 W CV+CC LED driver – dimensions

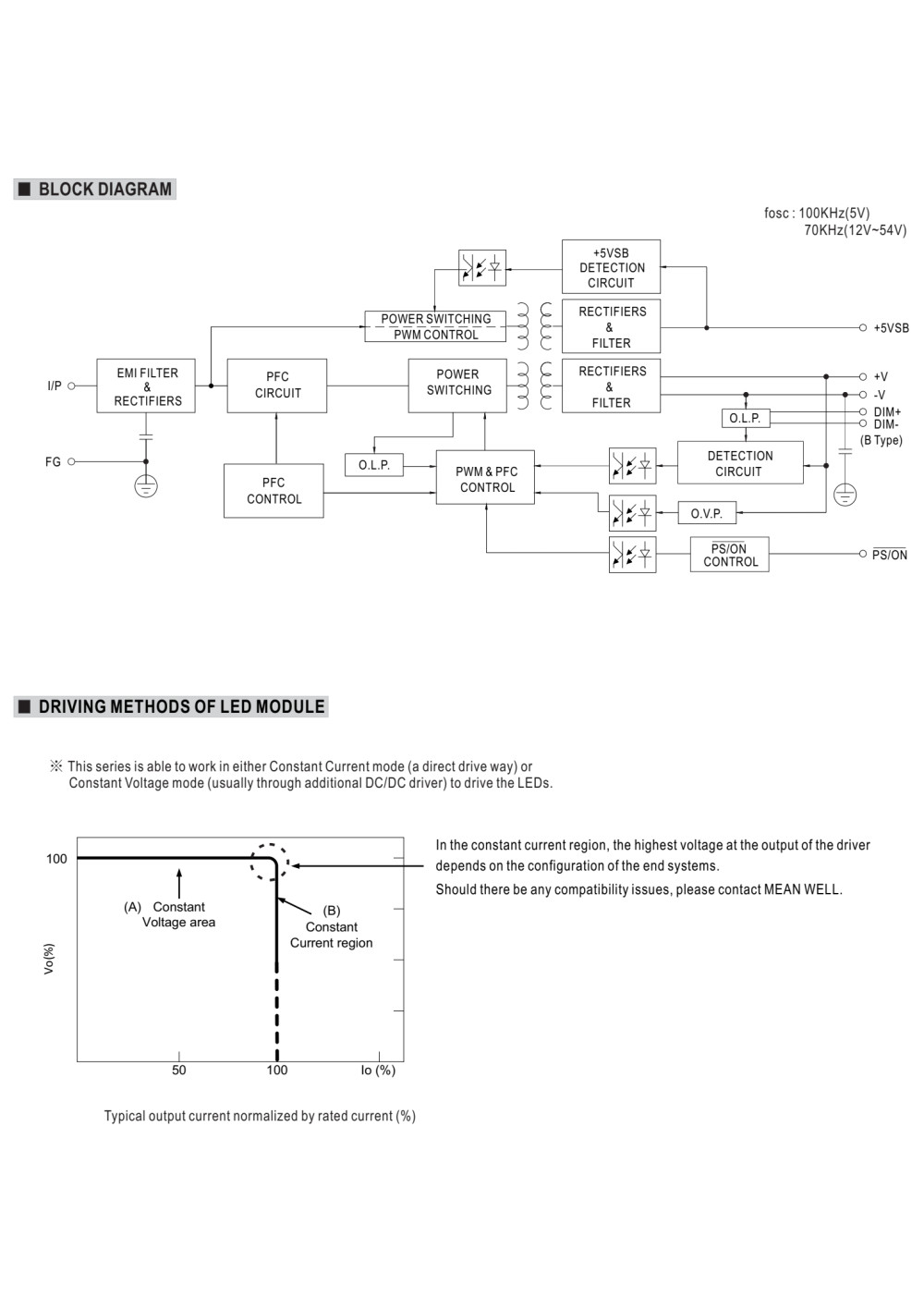

Mean Well HLG-80H-24AB 81.6 W CV+CC LED driver – block diagram

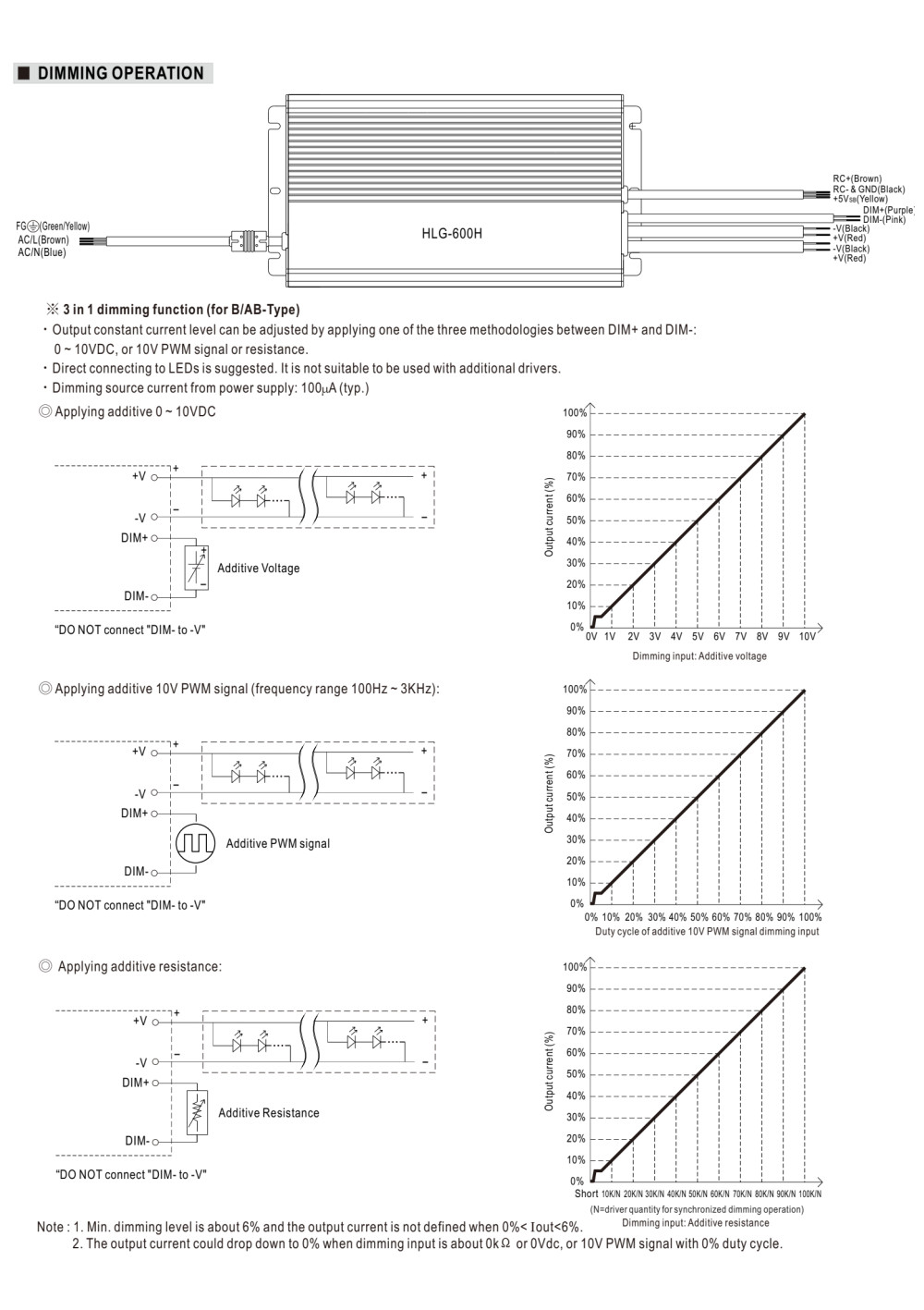

Mean Well HLG-80H-24AB 81.6 W CV+CC LED driver – dimming diagram

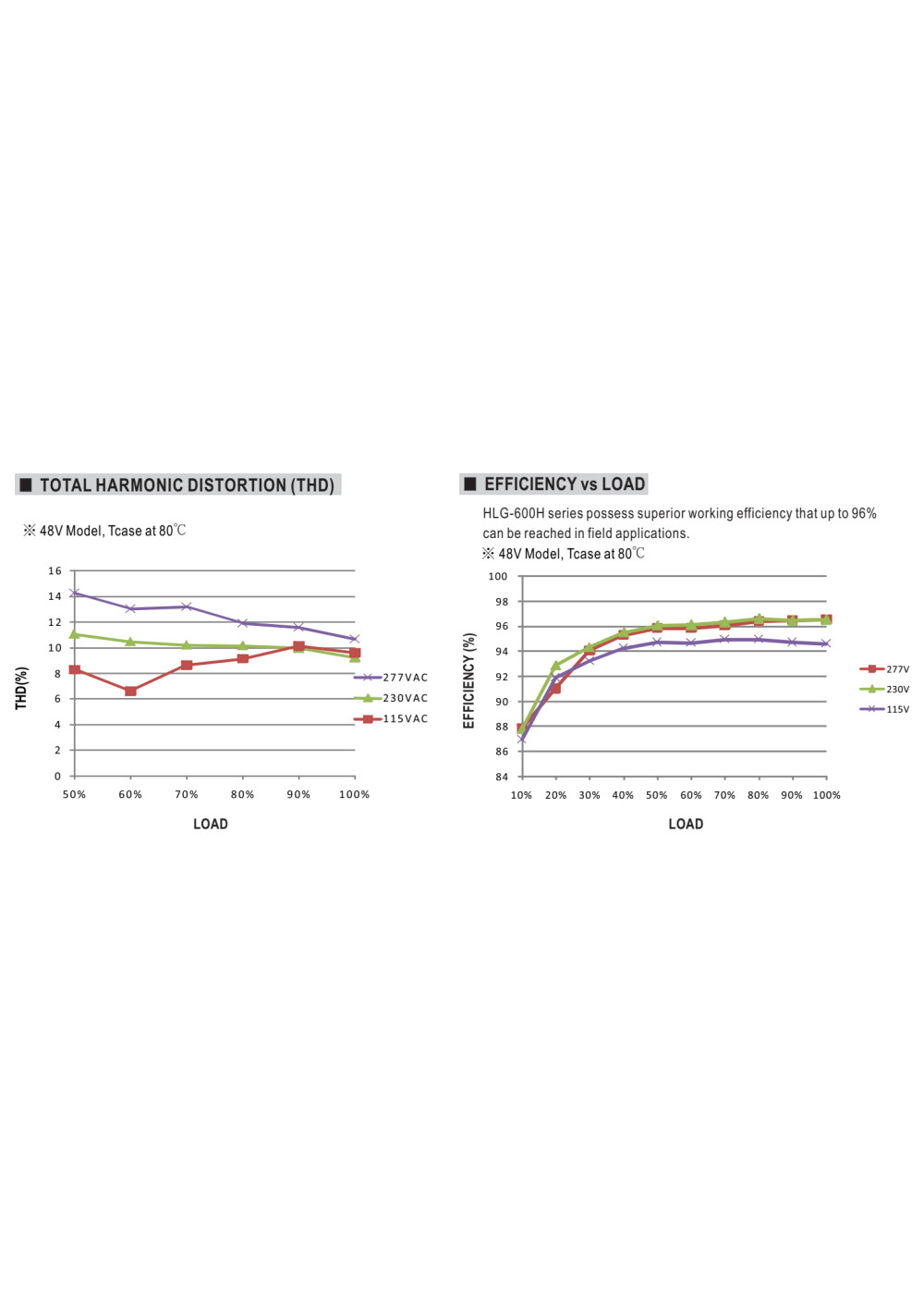

Mean Well HLG-80H-24AB 81.6 W CV+CC LED driver – efficiency versus load characteristic

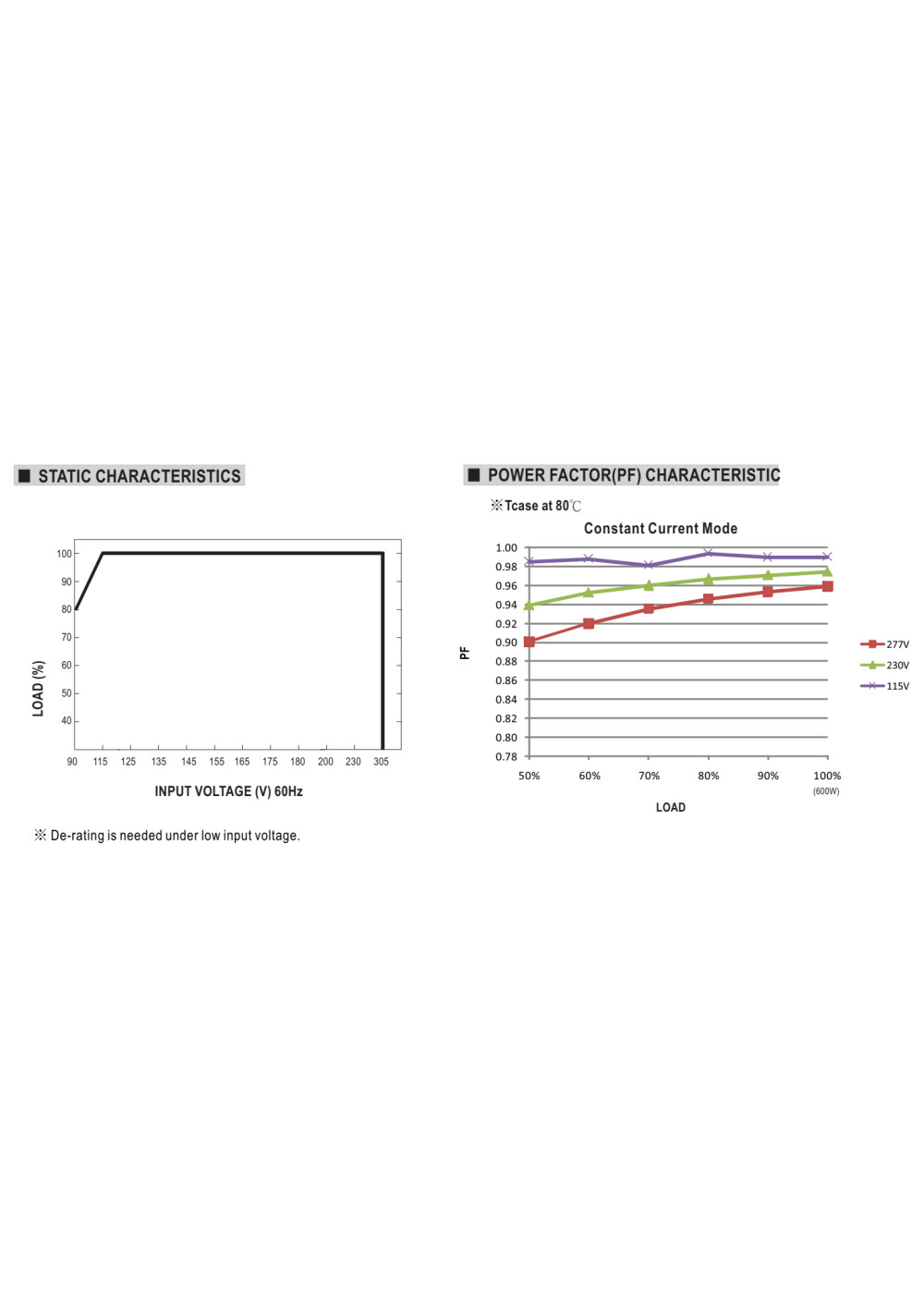

Mean Well HLG-80H-24AB 81.6 W CV+CC LED driver – static characteristic

Mean Well HLG-80H-24AB 81.6 W CV+CC LED driver

Minimum order quantity: 1. Order in multiples of 1.
203.24 PLN
Shipment in 1-2 business days
Constant Current (CC)
tm_HLG-80H-24AB

Mean Well HLG-80H-24AB is a 81.6 W CV+CC LED driver with a 14.4 V–24 V constant-current region.

Volume discounts

Quantity Discounted price
5+ 186.98 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

HLG-80H-24AB – full product specification

Mean Well HLG-80H-24AB is a HLG-80H-series power supply rated at 81.6 W. The parameters below come from the exact official manufacturer datasheet.

CV+CC operation

The driver combines voltage regulation and current limiting; its constant-current region is 14.4 V–24 V DC.

Full technical specifications

3-in-1 dimmingYes
Dimensions195.6 × 61.5 × 38.8 mm
Document revisionHLG-80H-SPEC 20260-02-04
Typical efficiency90.5 %
Input frequency47–63 Hz
Input range90–305 VAC / 127–431 VDC
Inrush current70 A
IP ratingIP65
Rated current3400 mA
Operating modeConstant voltage + constant current (CV+CC)
CC-region maximum voltage24 V
CC-region minimum voltage14.4 V
Output voltage24 V
Over-voltage protection range28–35 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power81.6 W
Manufacturer warranty7 years
Weight0.84 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_HLG-80H-24AB

Data sheet

Power supply type
CV+CC
Rated power [W]
60,1-100
Output Current of CC power supply [mA]
3400
CC operating window
14.4-24
Min. output voltage of led driver (CC)
14.4
Max. output voltage of led driver (CC)
24
IP grade
65
Length [mm]
195.6
Width [mm]
61.5
Height/thickness [mm]
38.8
Warranty [years]
7
Input voltage [V]
90-305

Specific References

EAN13
4711287481708
MPN
HLG-80H-24AB
New
