Mean Well XBG-240-AB-C 240 W constant-power LED driver
Mean Well XBG-240-AB-C is a 240 W constant-power LED driver with a 4000 mA–5700 mA current-setting envelope.
Mean Well XBG-240-AB-C 240 W constant-power LED driver
Minimum order quantity: 1. Order in multiples of 1.
292.67 PLN
Shipment in 8-10 working days
tm_XBG-240-AB-C
Mean Well XBG-240-AB-C is a 240 W constant-power LED driver with a 4000 mA–5700 mA current-setting envelope.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
XBG-240-AB-C – full product specification
Mean Well XBG-240-AB-C is a XBG-240-series power supply rated at 240 W. The parameters below come from the exact official manufacturer datasheet.
Constant-power characteristic
Full power is available across a 4000 mA–5700 mA current envelope and 30 V–60 V DC voltage region.
Full technical specifications

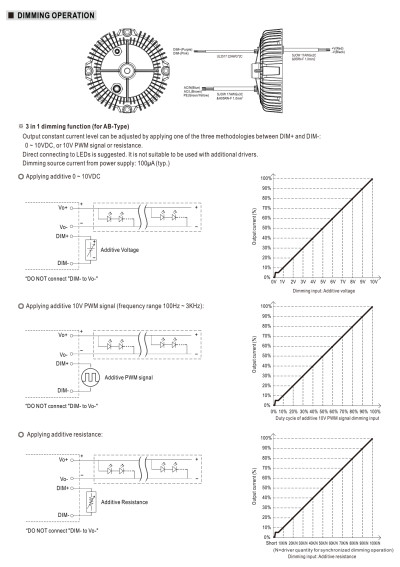

| 3-in-1 dimming | Yes |
|---|---|
| current_ripple_pct | 4 % |
| Document revision | XBG-240-SPEC 2026-02-09 |

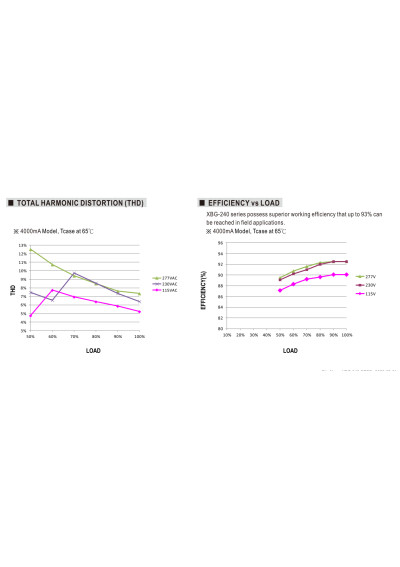

| Typical efficiency | 93 % |
| Input frequency | 47–63 Hz |
| Input range | 100–305 VAC / 142–431 VDC |
| Inrush current | 65 A |
| IP rating | IP67 |
| Maximum adjustable current | 5700 mA |
| Minimum adjustable current | 4000 mA |
| Operating mode | Constant voltage + constant current (CV+CC) |
| CC-region maximum voltage | 60 V |
| CC-region minimum voltage | 30 V |
| Constant-power characteristic | Yes |
| Over-voltage protection | Yes |
| Short-circuit protection | Yes |
| Rated power | 240 W |
| Manufacturer warranty | 5 years |
| Weight | 1.92 kg |
Manufacturer datasheet
Complete source specification: official Mean Well datasheet.
tm_XBG-240-AB-C
Data sheet
- Power supply type
- CV+CC
- Rated power [W]
- 100,1-249
- IP grade
- 67
- Warranty [years]
- 5
- Input voltage [V]
- 100-305
- Min. current of CC driver [mA]
- 4000
- Max. current of CC driver [mA]
- 5700
Specific References
- EAN13
- 4711287457581
- MPN
- XBG-240-AB-C
