Mean Well HLG-100H-36AB 95.4 W CV+CC LED driver
Mean Well HLG-100H-36AB 95.4 W CV+CC LED driver – dimensions

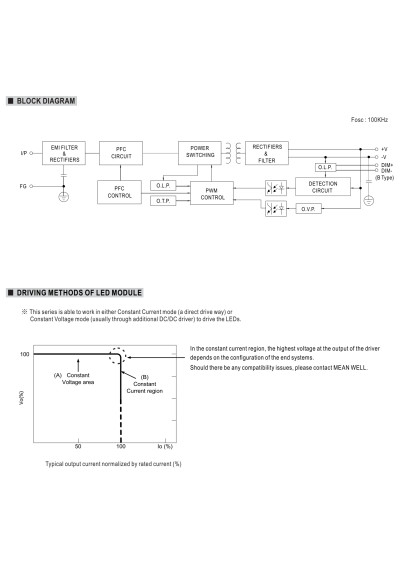

Mean Well HLG-100H-36AB 95.4 W CV+CC LED driver – block diagram

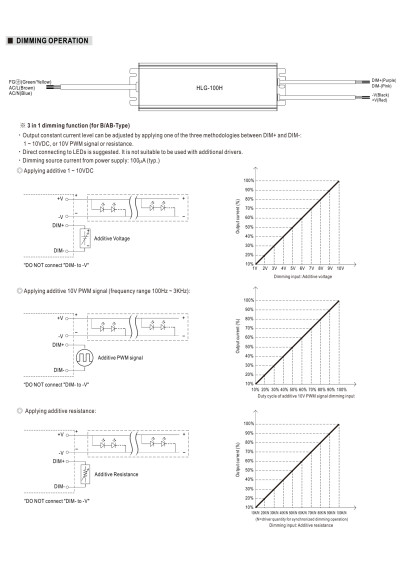

Mean Well HLG-100H-36AB 95.4 W CV+CC LED driver – dimming diagram

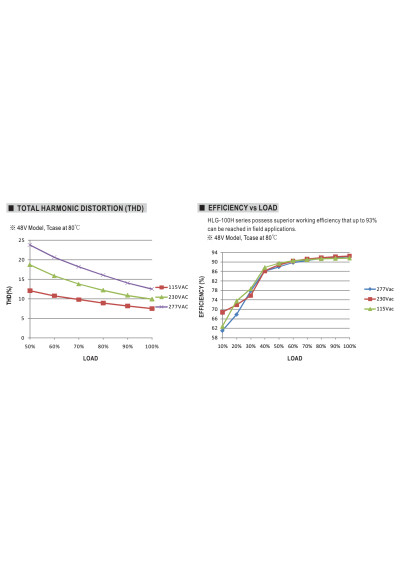

Mean Well HLG-100H-36AB 95.4 W CV+CC LED driver – efficiency versus load characteristic

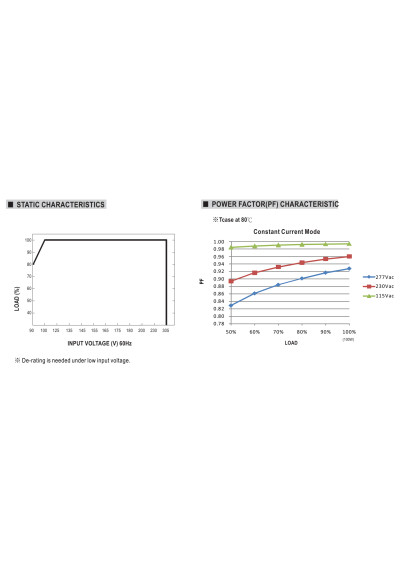

Mean Well HLG-100H-36AB 95.4 W CV+CC LED driver – static characteristic

Mean Well HLG-100H-36AB 95.4 W CV+CC LED driver

Minimum order quantity: 1. Order in multiples of 1.
243.89 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_HLG-100H-36AB

Mean Well HLG-100H-36AB is a 95.4 W CV+CC LED driver with a 18 V–36 V constant-current region.

Volume discounts

Quantity Discounted price
5+ 235.76 PLN
10+ 219.50 PLN
20+ 211.37 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

HLG-100H-36AB – full product specification

Mean Well HLG-100H-36AB is a HLG-100H-series power supply rated at 95.4 W. The parameters below come from the exact official manufacturer datasheet.

CV+CC operation

The driver combines voltage regulation and current limiting; its constant-current region is 18 V–36 V DC.

Full technical specifications

3-in-1 dimmingYes
Dimensions220 × 68 × 38.8 mm
Document revisionHLG-100H-SPEC 2026-07-24
Typical efficiency93 %
Input frequency47–63 Hz
Input range90–305 VAC / 127–431 VDC
Inrush current60 A
IP ratingIP65
Rated current2650 mA
Operating modeConstant voltage + constant current (CV+CC)
CC-region maximum voltage36 V
CC-region minimum voltage18 V
Output voltage36 V
Over-voltage protection range41–46 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power95.4 W
Manufacturer warranty7 years
Weight1.12 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_HLG-100H-36AB

Data sheet

Power supply type
CV+CC
Rated power [W]
60,1-100
Output Current of CC power supply [mA]
2650
CC operating window
18-36
Min. output voltage of led driver (CC)
18
Max. output voltage of led driver (CC)
36
IP grade
65
Length [mm]
220
Width [mm]
68
Height/thickness [mm]
38.8
Warranty [years]
7
Input voltage [V]
90-305

Specific References

EAN13
4711287481814
MPN
HLG-100H-36AB
