Mean Well LPF-16D-42 16.38 W CV+CC LED driver
Mean Well LPF-16D-42 16.38 W CV+CC LED driver – dimensions

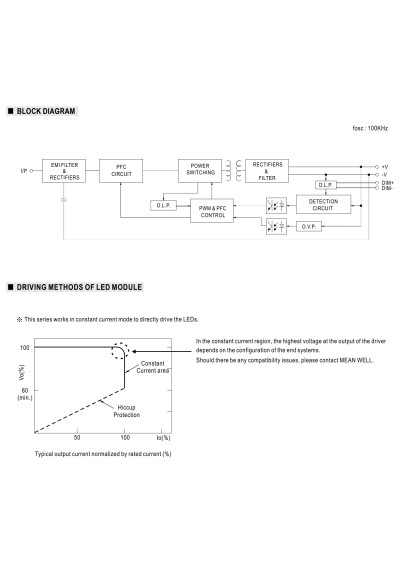

Mean Well LPF-16D-42 16.38 W CV+CC LED driver – block diagram

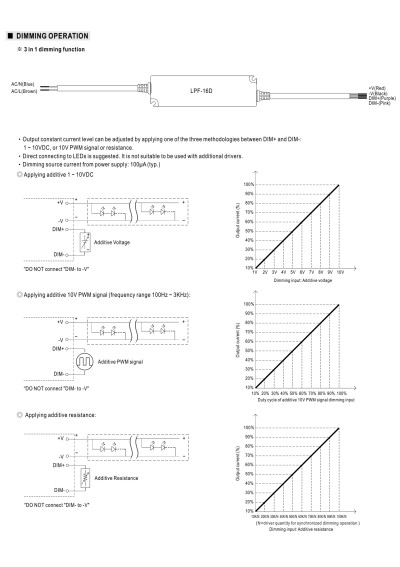

Mean Well LPF-16D-42 16.38 W CV+CC LED driver – dimming diagram

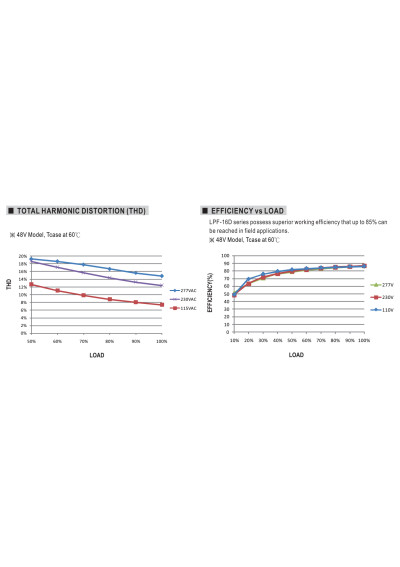

Mean Well LPF-16D-42 16.38 W CV+CC LED driver – efficiency versus load characteristic

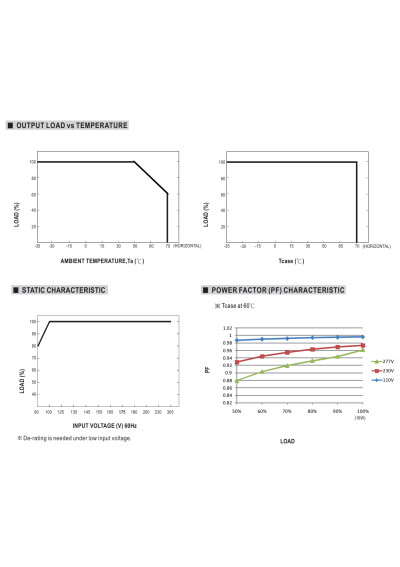

Mean Well LPF-16D-42 16.38 W CV+CC LED driver – load versus temperature characteristic

Mean Well LPF-16D-42 16.38 W CV+CC LED driver

Minimum order quantity: 1. Order in multiples of 1.
97.55 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_LPF-16D-42

Mean Well LPF-16D-42 is a 16.38 W CV+CC LED driver with a 23.1 V–42 V constant-current region.

Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

LPF-16D-42 – full product specification

Mean Well LPF-16D-42 is a LPF-16D-series power supply rated at 16.38 W. The parameters below come from the exact official manufacturer datasheet.

CV+CC operation

The driver combines voltage regulation and current limiting; its constant-current region is 23.1 V–42 V DC.

Full technical specifications

3-in-1 dimmingYes
current_ripple_pct5 %
Dimensions148 × 40 × 32 mm
Document revisionLPF-16D-SPEC 2026-02-09
Typical efficiency85 %
hold_up_time230 vac ms: 16; 115 vac ms: 16
Input frequency47–63 Hz
Input range90–305 VAC / 127–431 VDC
Inrush current45 A
IP ratingIP30
Rated current390 mA
Operating modeConstant voltage + constant current (CV+CC)
CC-region maximum voltage42 V
CC-region minimum voltage23.1 V
Output voltage42 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power16.38 W
Manufacturer warranty5 years
Weight0.21 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_LPF-16D-42

Data sheet

Power supply type
CV+CC
Rated power [W]
15,1-20
Output Current of CC power supply [mA]
390
CC operating window
23.1-42
Min. output voltage of led driver (CC)
23.1
Max. output voltage of led driver (CC)
42
IP grade
30
Length [mm]
148
Width [mm]
40
Height/thickness [mm]
32
Warranty [years]
5
Input voltage [V]
90-305

Specific References

EAN13
4711287440774
MPN
LPF-16D-42
New
