Mean Well HBGC-300-M-A 301.6 W constant-power LED driver
Mean Well HBGC-300-M-A is a 301.6 W constant-power LED driver with a 2600 mA–4330 mA current-setting envelope.
Mean Well HBGC-300-M-A 301.6 W constant-power LED driver
Minimum order quantity: 1. Order in multiples of 1.
471.54 PLN
Shipment in 8-10 working days
tm_HBGC-300-M-A
Mean Well HBGC-300-M-A is a 301.6 W constant-power LED driver with a 2600 mA–4330 mA current-setting envelope.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
HBGC-300-M-A – full product specification
Mean Well HBGC-300-M-A is a HBGC-300-series power supply rated at 301.6 W. The parameters below come from the exact official manufacturer datasheet.
Constant-power characteristic
Full power is available across a 2600 mA–4330 mA current envelope and 58 V–116 V DC voltage region.
Full technical specifications
| DALI control | Yes |
|---|---|

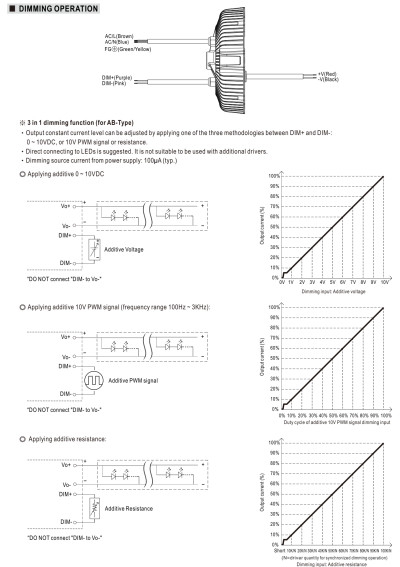

| 3-in-1 dimming | Yes |
| current_ripple_pct | 5 % |
| Document revision | HBGC-300-SPEC 2024-10-11 |

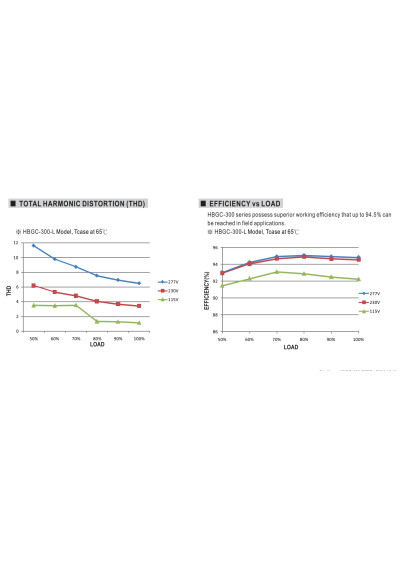

| Typical efficiency | 93.5 % |
| Input frequency | 47–63 Hz |
| Inrush current | 45 A |
| IP rating | IP67 |
| Maximum adjustable current | 4330 mA |
| Minimum adjustable current | 2600 mA |
| Operating mode | Constant voltage + constant current (CV+CC) |
| CC-region maximum voltage | 116 V |
| CC-region minimum voltage | 58 V |
| Over-voltage protection range | 121–145 V |
| Constant-power characteristic | Yes |
| Over-voltage protection | Yes |
| Short-circuit protection | Yes |
| Rated power | 301.6 W |
| Manufacturer warranty | 5 years |
| Weight | 2.2 kg |
Manufacturer datasheet
Complete source specification: official Mean Well datasheet.
tm_HBGC-300-M-A
Data sheet
- Power supply type
- CV+CC
- Rated power [W]
- 250-499
- IP grade
- 67
- Warranty [years]
- 5
- Min. current of CC driver [mA]
- 2600
- Max. current of CC driver [mA]
- 4330
Specific References
- EAN13
- 4711287480923
- MPN
- HBGC-300-M-A
