Mean Well HVGC-240-2800AB 240 W CC LED driver 2800 mA Mean Well HVGC-240-2800AB 240 W CC LED driver 2800 mA – dimensions Mean Well HVGC-240-2800AB 240 W CC LED driver 2800 mA – block diagram Mean Well HVGC-240-2800AB 240 W CC LED driver 2800 mA – dimming diagram Mean Well HVGC-240-2800AB 240 W CC LED driver 2800 mA – efficiency versus load characteristic
Mean Well HVGC-240-2800AB 240 W CC LED driver 2800 mA
Mean Well HVGC-240-2800AB 240 W CC LED driver 2800 mA – dimensions

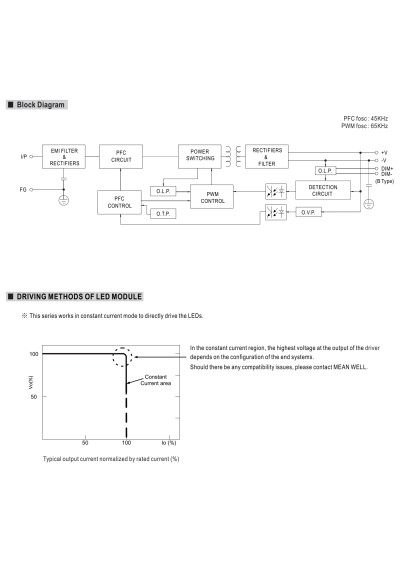

Mean Well HVGC-240-2800AB 240 W CC LED driver 2800 mA – block diagram

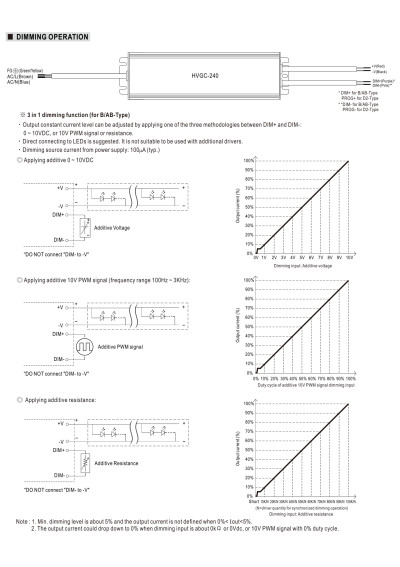

Mean Well HVGC-240-2800AB 240 W CC LED driver 2800 mA – dimming diagram

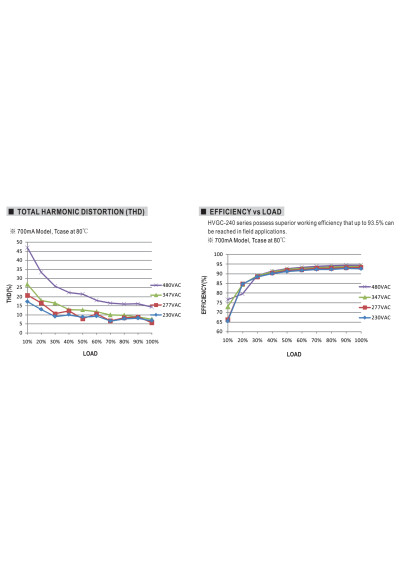

Mean Well HVGC-240-2800AB 240 W CC LED driver 2800 mA – efficiency versus load characteristic

Mean Well HVGC-240-2800AB 240W 2800mA 42.9–85.7V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
414.63 PLN
Shipment in 8-10 working days
Constant Current (CC)
tm_HVGC-240-2800AB

Mean Well HVGC-240-2800AB is a 240 W constant-current LED driver rated at 2800 mA, with a 42.9 V–85.7 V output-voltage region.

Volume discounts

Quantity Discounted price
5+ 390.24 PLN
10+ 373.98 PLN
20+ 349.59 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

HVGC-240-2800AB – full product specification

Mean Well HVGC-240-2800AB is a HVGC-240-series power supply rated at 240 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 2800 mA across a 42.9 V–85.7 V DC voltage region.

Full technical specifications

3-in-1 dimmingYes
current_ripple_pct5 %
Dimensions254.2 × 68 × 38.8 mm
Document revisionHVGC-240-SPEC 2025-10-10
Typical efficiency92.5 %
Input frequency47–63 Hz
IP ratingIP65
Rated current2800 mA
Operating modeConstant Current (CC)
CC-region maximum voltage85.7 V
CC-region minimum voltage42.9 V
Over-voltage protection range90–99 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power240 W
Manufacturer warranty5 years
Weight1.35 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_HVGC-240-2800AB

Data sheet

Power supply type
Constant Current (CC)
Rated power [W]
100,1-249
Output Current of CC power supply [mA]
2800
CC operating window
42.9-85.7
Min. output voltage of led driver (CC)
42.9
Max. output voltage of led driver (CC)
85.7
IP grade
65
Length [mm]
254.2
Width [mm]
68
Height/thickness [mm]
38.8
Warranty [years]
5

Specific References

EAN13
4711287454733
MPN
HVGC-240-2800AB
