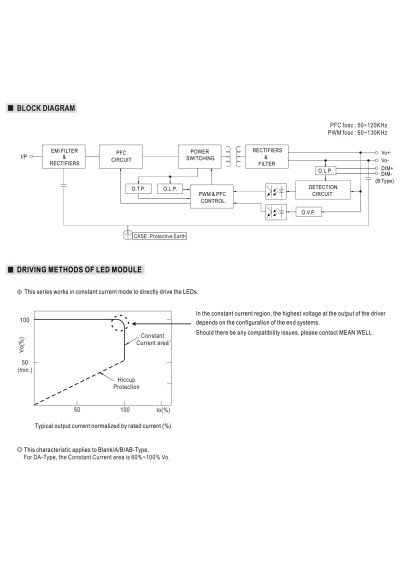

Mean Well ELG-150-C1750 150.5 W CC LED driver 1750 mA – block diagram

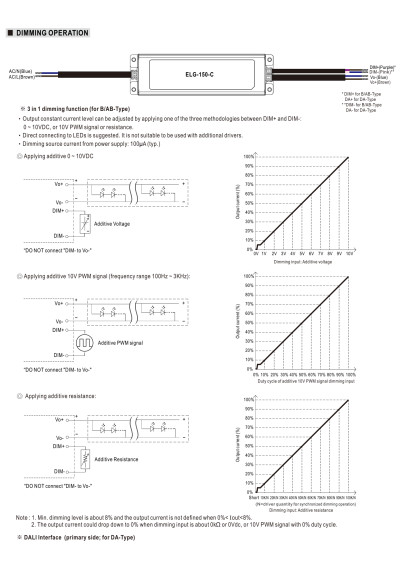

Mean Well ELG-150-C1750 150.5 W CC LED driver 1750 mA – dimming diagram

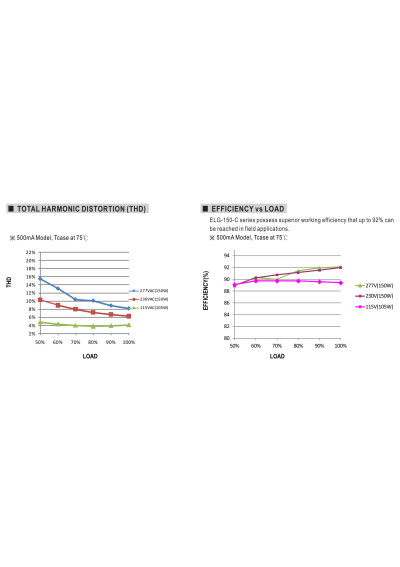

Mean Well ELG-150-C1750 150.5 W CC LED driver 1750 mA – efficiency versus load characteristic

Mean Well ELG-150-C1750 150.5W 1750mA 43–86V Constant Current (CC) LED driver

Minimum order quantity: 1. Order in multiples of 1.
186.98 PLN
Shipment in 1-2 business days
Constant Current (CC)
tm_ELG-150-C1750

Mean Well ELG-150-C1750 is a 150.5 W constant-current LED driver rated at 1750 mA, with a 43 V–86 V output-voltage region.

Volume discounts

Quantity Discounted price
5+ 178.85 PLN
10+ 170.72 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

ELG-150-C1750 – full product specification

Mean Well ELG-150-C1750 is a ELG-150-C-series power supply rated at 150.5 W. The parameters below come from the exact official manufacturer datasheet.

Constant-current output

The model regulates 1750 mA across a 43 V–86 V DC voltage region.

Full technical specifications

DALI controlYes
3-in-1 dimmingYes
current_ripple_pct5 %
Dimensions219 × 63 × 35.5 mm
Document revisionELG-150-C-SPEC 2026-07-06
Typical efficiency91 %
Input frequency47–63 Hz
Input range100–305 VAC / 142–431 VDC
Inrush current65 A
IP ratingIP67
Rated current1750 mA
Operating modeConstant Current (CC)
CC-region maximum voltage86 V
CC-region minimum voltage43 V
Over-voltage protection range96–106 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power150.5 W
Manufacturer warranty5 years
Weight0.95 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_ELG-150-C1750

Data sheet

Power supply type
Constant Current (CC)
Rated power [W]
100,1-249
Output Current of CC power supply [mA]
1750
CC operating window
43-86
Min. output voltage of led driver (CC)
43
Max. output voltage of led driver (CC)
86
IP grade
67
Length [mm]
219
Width [mm]
63
Height/thickness [mm]
35.5
Warranty [years]
5
Input voltage [V]
100-305

Specific References

EAN13
4711287444949
MPN
ELG-150-C1750
New
