Mean Well LPF-60-15 60 W CV+CC LED driver
Mean Well LPF-60-15 is a 60 W CV+CC LED driver with a 9 V–15 V constant-current region.
Mean Well LPF-60-15 60 W CV+CC LED driver
Minimum order quantity: 1. Order in multiples of 1.
121.94 PLN
Shipment in 8-10 working days
tm_LPF-60-15
Mean Well LPF-60-15 is a 60 W CV+CC LED driver with a 9 V–15 V constant-current region.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LPF-60-15 – full product specification
Mean Well LPF-60-15 is a LPF-60-series power supply rated at 60 W. The parameters below come from the exact official manufacturer datasheet.
CV+CC operation
The driver combines voltage regulation and current limiting; its constant-current region is 9 V–15 V DC.
Full technical specifications
| Dimensions | 162.5 × 43 × 32 mm |
|---|---|
| Document revision | LPF-60-SPEC 2026-02-09 |

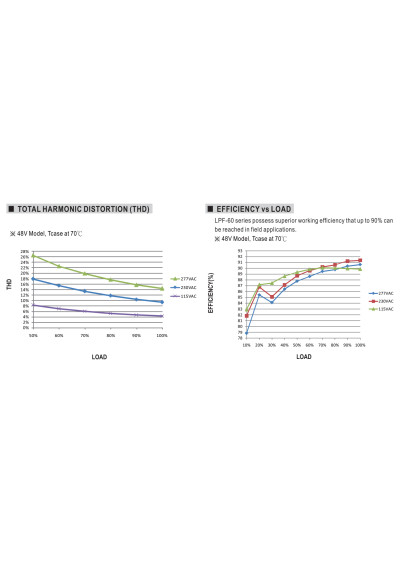

| Typical efficiency | 87 % |
| hold_up_time | 230 vac ms: 16; 115 vac ms: 16 |
| Input frequency | 47–63 Hz |
| Input range | 90–305 VAC / 127–431 VDC |
| Inrush current | 55 A |
| IP rating | IP67 |
| Rated current | 4000 mA |
| Operating mode | Constant voltage + constant current (CV+CC) |
| CC-region maximum voltage | 15 V |
| CC-region minimum voltage | 9 V |
| Output voltage | 15 V |
| Over-voltage protection range | 17.5–21 V |
| Over-voltage protection | Yes |
| Short-circuit protection | Yes |
| Rated power | 60 W |
| Manufacturer warranty | 5 years |
| Weight | 0.45 kg |
Manufacturer datasheet
Complete source specification: official Mean Well datasheet.
tm_LPF-60-15
Data sheet
- Power supply type
- CV+CC
- Rated power [W]
- 30,1-60
- Output Current of CC power supply [mA]
- 4000
- CC operating window
- 9-15
- Min. output voltage of led driver (CC)
- 9
- Max. output voltage of led driver (CC)
- 15
- IP grade
- 67
- Length [mm]
- 162.5
- Width [mm]
- 43
- Height/thickness [mm]
- 32
- Warranty [years]
- 5
- Input voltage [V]
- 90-305
Specific References
- EAN13
- 4711287458540
- MPN
- LPF-60-15
