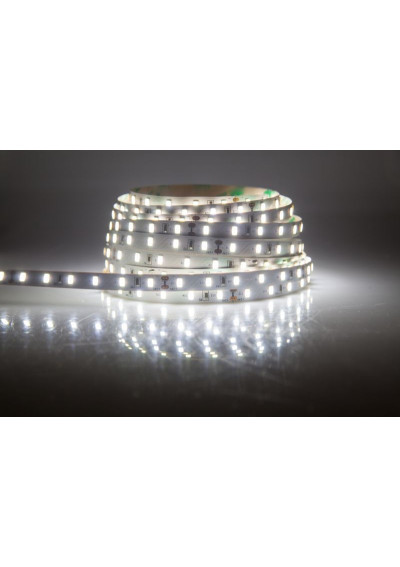

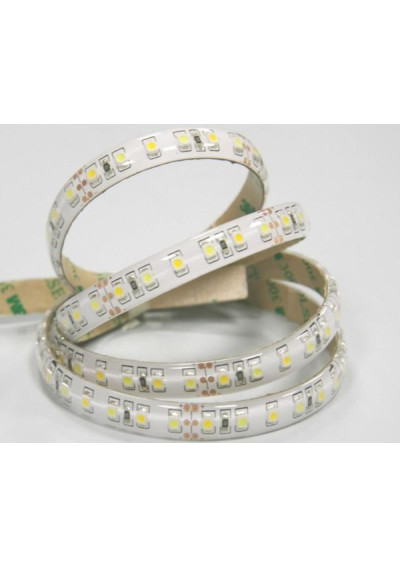

LED strip SMD 3528 12V 9.6W/m cool white 120LED/m IP65 5m

LED Strip - Construction

The strip uses SMD technology with LEDs in a 3528 package. The underside has factory-applied double-sided adhesive tape to aid installation on a suitably prepared surface.

Control of LED strip

The strip can be powered directly from a suitable 12V power supply. An optional PWM controller enables brightness adjustment.

Important information

The stated power is a rated or theoretical value based on the parameters of the components used. Actual power consumption may be lower due to component tolerances, voltage drop and operating conditions.

Power and installation

The strip does not require an additional power-injection point when its length does not exceed 5m. Above this length, consider starting the next separately powered run, supplying the run at its far end, or adding another power point after the indicated length.

The 5m value is based on the electrical properties of the strip PCB. It indicates the length at which supply-voltage drop should not cause a noticeable reduction in LED brightness along the length of strip. Above this length, a brightness difference may become visible. If it remains acceptable to the end customer, the final power-feed arrangement is the responsibility of the installation designer or user.

Light emitted by LED strip

The presented white LED strip is a single-channel light source with a color temperature of 6000K. All LEDs emit the same color and are controlled simultaneously, providing uniform and stable illumination.

In most white LEDs, light is produced through a phosphor-conversion process. A blue semiconductor chip emits short-wavelength radiation, part of which is converted by a phosphor layer into longer-wavelength visible light. The combination of the original blue light and the radiation emitted by the phosphor creates a broad spectrum perceived by the human eye as white light.

The composition and proportions of the phosphor materials make it possible to control the color temperature, tint, luminous efficacy, and color rendering quality with high precision. In high-quality LEDs, a properly engineered spectrum can faithfully reproduce the natural appearance of illuminated objects and colors, bringing the character of the emitted light close to daylight or traditional incandescent lighting. Particularly important factors include a high color rendering index, the correct balance of spectral components, and strict LED binning for color consistency. As a result, in typical applications, the light produced by a high-quality LED strip can be visually very difficult to distinguish from that of natural or traditional light sources.

During operation, an LED ages gradually rather than failing suddenly through a conventional “burnout.” The most commonly observed process is a slow reduction in luminous flux over time. High operating temperatures can accelerate degradation of the semiconductor structure, phosphor, package materials, and electrical connections. Over time, the phosphor may lose some of its conversion efficiency, while optical materials may become discolored, leading to a slight shift in color temperature or chromaticity coordinates.

In high-quality LED strips, this aging process is slow, uniform, and predictable. Proper thermal management, stable power supply, and installation in a suitable aluminum profile reduce the operating temperature, helping to preserve the original brightness and light color for many years.

For static operation, the strip does not require a controller — a correctly selected power supply is sufficient. Brightness adjustment requires a compatible single-channel LED dimmer or controller, most commonly using PWM modulation.

LED strip - product overview

The strip operates at 12V and has a density of 120LED/m with an IP65 ingress-protection rating.

Sales unit of led strip

The sales unit includes a factory-prepared reel of LED strip with a length of 5m.

LED strip - power supply selection

The strip requires a power supply with an output voltage of 12V. Guidance: select a power supply with an optimum 30% power reserve above the LED strip demand.

LED strip 600LED SMD 3528 biała zimna IP65 – premium light for demanding spaces

Choose a solution that looks clean and works reliably. This LED strip 600LED SMD 3528 biała zimna IP65 uses a high LED density for a strong, even glow. The SMD 3528 technology delivers stable color and consistent performance. The cool white tone enhances contrast and makes surfaces look crisp. The IP65 coating helps protect against dust and water splashes. It is a great choice for kitchens, bathrooms, and covered outdoor areas.

Why choose a LED strip 600LED SMD 3528 biała zimna IP65?

• 600 LEDs for smooth light with fewer visible dots
• Cool white color for modern, clean illumination
• IP65 protection for splash-prone zones
• SMD 3528 diodes for stable, efficient operation
• Easy installation in profiles and linear accents

Best uses for this LED strip

This strip works well for functional and decorative lighting. Use it under cabinets, inside shelves, and in niches. It also fits architectural accents, soffits, and signage. For the best visual effect, mount it in an aluminum profile. The profile improves heat dissipation and keeps the line of light neat.

LED strip power supply and safety (constant voltage)

Use a constant-voltage LED power supply matched to your total wattage. Add a 20–30% power reserve for stability. Look for premium protections such as OVP, OCP, SCP, and OTP. If you run long lengths, consider power injection. Feed power every ~5 m for 12V systems, or ~10 m for 24V systems. Use a star wiring layout and proper cable gauge. Seal connections carefully for outdoor installations.

Cutting and mounting

You can cut the strip only at marked cut points. Connect with soldering or quality connectors. Clean the surface before sticking the tape. For best durability, press firmly and avoid dusty or oily areas.

FAQ

• Which power supply should I choose? Add up the strip wattage and add 20–30% reserve. Choose models with OVP/OCP/SCP/OTP.
• When do I need power injection? Use it for longer runs or when brightness drops. Feed power at the recommended intervals.
• Can I use it in wet areas? IP65 handles splashes, not full immersion. Protect joints from moisture.
