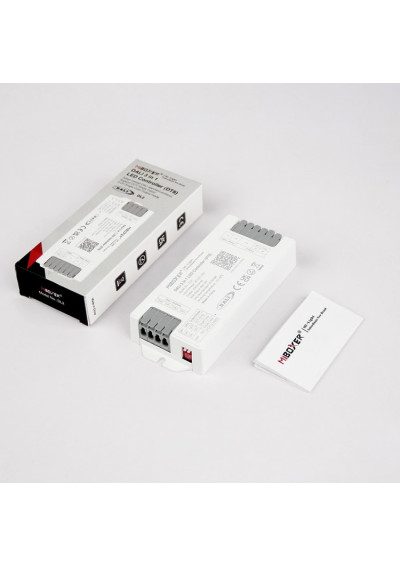

MiBoxer DL2 – 3 in 1 LED controller DALI-2
MiBoxer DL2 is a DALI LED controller for LED strips and lights in CCT (DT8), Single Color, 2-channel Single Color modes. Its selectable output configurations let one model serve different strip types. Control: DALI-2. Input 12–48 V DC. Its two single-color channels can use separate DALI addresses, while DT8 mode controls CCT.
MiBoxer DL2 – 3 in 1 LED controller DALI-2
141.46 PLN
Shipment in 1-2 business days
005x_miboxer_DL2
MiBoxer DL2 is a DALI LED controller for LED strips and lights in CCT (DT8), Single Color, 2-channel Single Color modes. Its selectable output configurations let one model serve different strip types. Control: DALI-2. Input 12–48 V DC. Its two single-color channels can use separate DALI addresses, while DT8 mode controls CCT.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
MiBoxer DL2 – DALI LED controller

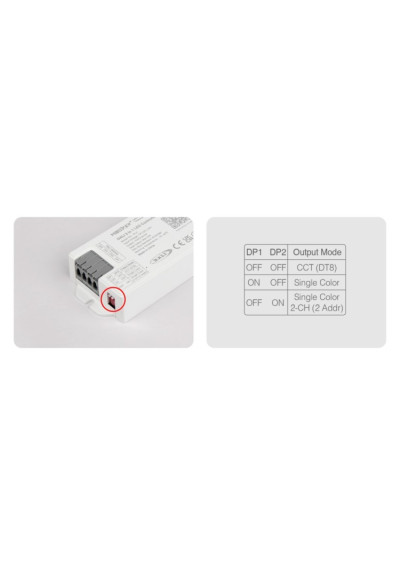

DL2 controls LED strips and lights in CCT (DT8), Single Color, 2-channel Single Color modes. Match the DL2 output configuration to the connected strip; control uses DALI-2.
Operating modes and use

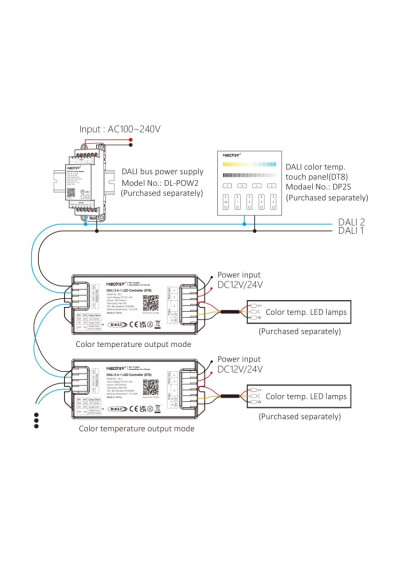

- CCT (DT8): brightness and color-temperature control through one DT8 address.

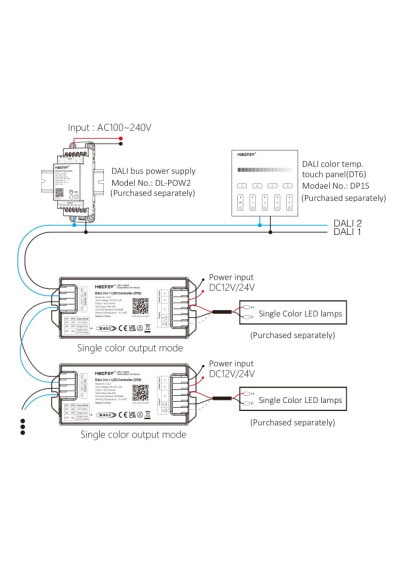

- Single Color: single-color LED strips with brightness control.
- 2-channel Single Color: two independent single-color channels with separate DALI addresses.
Control
The device operates on a DALI-2 bus. DT8 supports CCT adjustment, while single-color modes require the appropriate channel addressing.
Functions
- Short-circuit and overcurrent protection.
Technical specifications
| Model | DL2 |
|---|---|
| Product type | DALI LED controller |
| Modes | CCT (DT8), Single Color, 2-channel Single Color |
| Input voltage | 12–48 V DC |
| Output current | 10 A/kanał |
| Total current | 20 A |
| Connectivity | DALI-2 |
| IP rating | IP20 |
We make every effort to ensure that the information provided in this product description is complete, up to date and consistent with the manufacturer's documentation. Please note, however, that the MiBoxer product range is continuously evolving and the manufacturer may introduce updates to product functionality, compatibility, software or technical specifications that may not yet be reflected in our description. If you have any doubts, we recommend checking the latest information and documentation directly on the manufacturer's website.
Latest product information and documentation on the MiBoxer manufacturer website
005x_miboxer_DL2
Data sheet
- IP grade
- IP20
- Type of LED driver
- LED controller
- Input Voltage of LED driver
- 12–48 V DC
- Max. output current of LED controller
- 20 A
