LED power supply Tridonic LCO 135W 200-1050mA 220V NF C ADV3

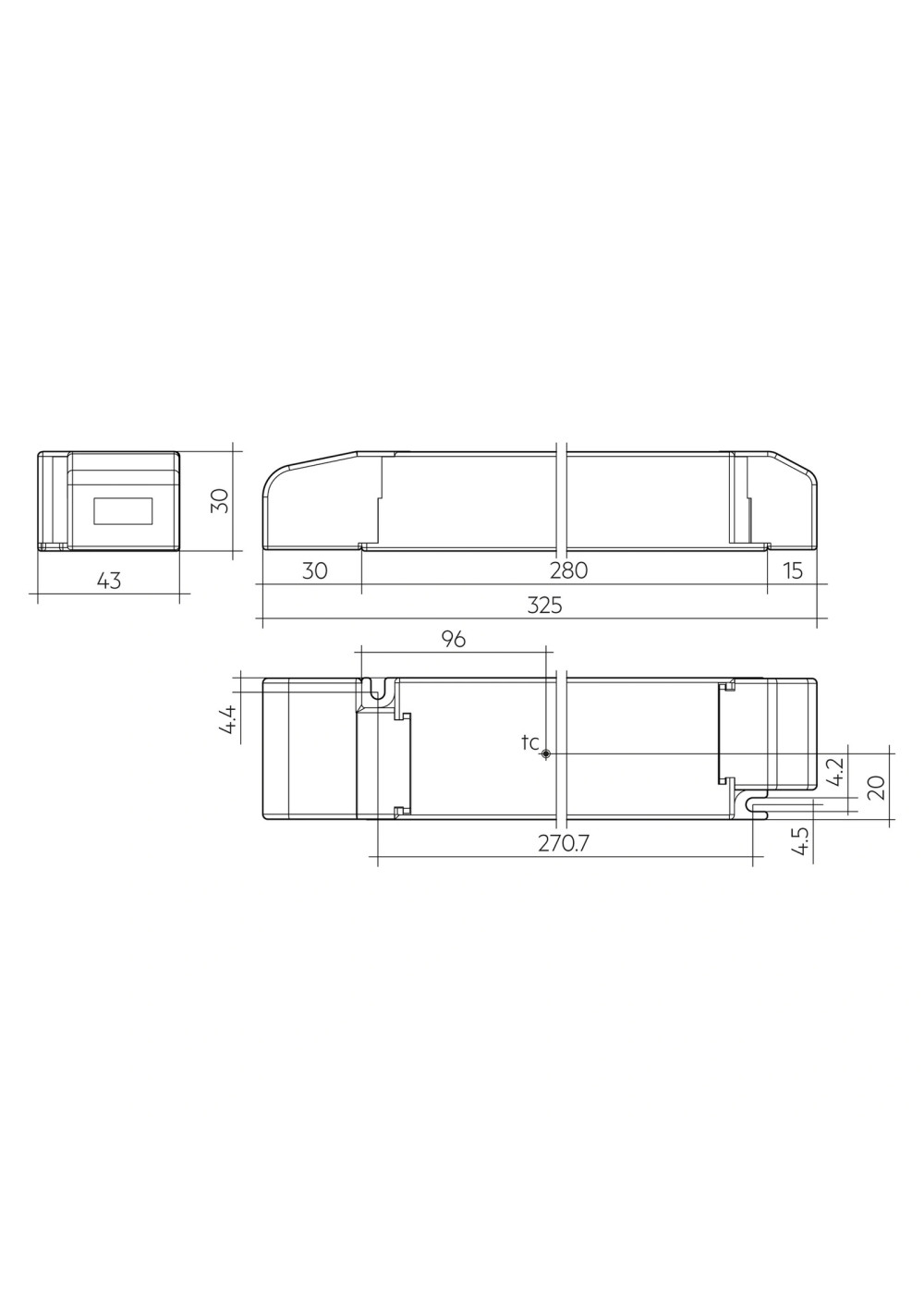

Dimensional drawing LCO 135W 200-1050mA 220V NF C ADV3

LED power supply Tridonic LCO 135/200-1050/220 NF C ADV3

Name: LED power supply Tridonic LCO 135/200-1050/220 NF C ADV3
Brand: LEDownia.pl
SKU: zas_tridonic_87500826
Price: 382 PLN
Availability: BackOrder

382.00 PLN

Shipment in 8-10 working days

Category: Dimmable

Reference: zas_tridonic_87500826

LED power supply Tridonic LCO 135W 200-1050mA 220V NF C ADV3 is a constant current LED driver rated up to 135 W. Values for individual settings are shown in the operating-point table. Documented interfaces and configuration methods: NFC.

Delivery

1-3 dni (PL), 3-10 dni (non-PL)

Return Policy

14 days

Description
Product Details

LED power supply Tridonic LCO 135W 200-1050mA 220V NF C ADV3 is a constant current LED driver in the Driver LCO 135W 200–1050mA 220V NF C ADV3 family. Official article number 87500826 identifies this physical version.

Key properties

Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.

Technical specifications

Manufacturer article number	87500826
Manufacturer family	Driver LCO 135W 200–1050mA 220V NF C ADV3
Manufacturer product group	Compact drivers
Supply voltage	220 – 240 V
AC voltage range	198 – 264 V
InputDIM voltage range	170–250 V
DC voltage range	176 – 280 V
Mains frequency	0 / 50 / 60 Hz
Overvoltage protection	320 V AC, 48 h
Typ. current (at 230 V, 50 Hz, full load)	169–647 mA
Typ. current (220 V, 0 Hz, full load, XX % dimming level)	48–117 mA
Leakage current	<0.45 mA
Touch current (equipotential connected)	440 µA
Power Consumption	147 W
Typ. power input on stand-by 230 V	<0.16 W
Typ. efficiency at 230 V	93 %
λ over full operating range (max.)	0.98
THD at 230V, full load	<8 %
Starting time	<0.75 s; <0.8 s
Switchover time (AC/DC)	<0.3 s
Turn off time	<0.5 s
Output current tolerance, min./full load	±3 %
Max. output current peak (non-repetitive) + max. peak output current	≤ output current +15 %
Output LF current ripple (< 120 Hz) / Current ripple at full load	±5 %
Output P_ST_LM (at full load)	≤1
Output SVM (at full load)	≤0.4
Max. output voltage	280 V; 180 V; 280 V
Dimming range	5–100 %
Mains surge capability (between L - N)	6 kV / 3 kA
Mains surge capability (between L/N - PE)	10 kV
Burst protection	6 kV
Surge voltage at output side (against PE)	<1 kV
Type of protection	IP20
Length	150 mm
Width	90 mm
Height	37.5 mm
Lifetime	up to 100000 h
Guarantee	8 years
Output mode	CC
Maximum output power [W]	135
Input voltage	220 – 240 V
IP grade	IP20
Warranty [years]	8
THD	<8 %
Typ. efficiency at 230 V	93 %
λ over full operating range (max.)	0.98
Dimensions L×W×H	150 × 90 × 37.5 mm
Lifetime [h]	up to 100000 h
Product net weight	0.746 kg
Interfaces and configuration	NFC
Dimming	Yes
Configuration method	NFC
short_circuit_protection	Yes
overload_protection	Yes
no_load_protection	Yes
Manufacturer note: Product description	Dimmable built-in constant current outdoor LED driver
Manufacturer note: Product description	Dimming range 5 – 100 % (min. 10 mA)
Manufacturer note: Product description	For luminaires of protection class I and protection class II
Manufacturer note: Product description	Temperature protection as per EN 61347-2-13 C5e
Manufacturer note: Product description	Output current adjustable between 200 – 1,050 mA via NFC or ready2mains Programmer
Manufacturer note: Product description	Max. output power 135 W
Manufacturer note: Product description	Up to 93 % efficiency
Manufacturer note: Product description	Lowest power input on stand-by < 0.16 W
Manufacturer note: Product description	Nominal lifetime of 100,000 h and 8 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
Manufacturer note: Interfaces	Near field communication (NFC)
Manufacturer note: Interfaces	ready2mains (configuration via mains)
Manufacturer note: Interfaces	U6Me2 (configuration of chronoSTEP via mains and ready2mains Programmer)
Manufacturer note: Interfaces	Terminal blocks: 45° push terminals
Manufacturer note: Functions	Adjustable output current in 1-mA-steps (NFC, ready2mains)
Manufacturer note: Functions	Programmable chronoSTEP: times and levels (NFC, U6Me2)
Manufacturer note: Functions	Dimming through mains voltage (inputDIM)
Manufacturer note: Functions	Enhanced constant light output function (eCLO)
Manufacturer note: Functions	Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
Manufacturer note: Functions	Intelligent Temperature Guard (ITG)
Manufacturer note: Functions	Intelligent Voltage Guard Plus (IVG+)
Manufacturer note: Functions	Suitable for emergency escape lighting systems acc. to EN 50172
Manufacturer note: Benefits	Flexible configuration via companionSUITE (NFC, ready2mains™) or U6Me2 programmer
Manufacturer note: Benefits	Application-oriented operating window for maximum compatibility
Manufacturer note: Benefits	Best energy savings due to low stand-by losses and high efficiency
Manufacturer note: Benefits	In-field programming possible after installation with NFC interface and ready2mains
Manufacturer note: Benefits	High overvoltage protection: up to 10 kV asymmetric (protection class I and II)
Manufacturer note: Typical applications	Road, street and industry

Operating points

Point	Output current	Min./Max. forward voltage	Typ. current consumption	Output power	Typ. power consumption	Ambient temperature ta	tc point max	Operating modes / Grouping
1	200.0 mA	135 V; 220 V	244 mA	44 W	52.5 W	-40–70 °C	100.0 °C	High voltage output (HV)
2	250.0 mA	108 V; 220 V	292 mA	55 W	64 W	-40–70 °C	100.0 °C	High voltage output (HV)
3	300.0 mA	104 V; 220 V	340 mA	66 W	75.4 W	-40–70 °C	100.0 °C	High voltage output (HV)
4	350.0 mA	104 V; 220 V	389 mA	77 W	86.9 W	-40–70 °C	100.0 °C	High voltage output (HV)
5	400.0 mA	104 V; 220 V	438 mA	88 W	98.2 W	-40–70 °C	100.0 °C	High voltage output (HV)
6	450.0 mA	104 V; 220 V	484 mA	99 W	108.9 W	-40–65 °C	100.0 °C	High voltage output (HV)
7	500.0 mA	104 V; 220 V	530 mA	110 W	119.6 W	-40–65 °C	100.0 °C	High voltage output (HV)
8	550.0 mA	104 V; 220 V	587 mA	121 W	132.8 W	-40–65 °C	100.0 °C	High voltage output (HV)
9	600.0 mA	104 V; 220 V	641 mA	132 W	145 W	-40–60 °C	95.0 °C	High voltage output (HV)
10	650.0 mA	104 V; 207.7 V	640 mA	135 W	145.1 W	-40–60 °C	95.0 °C	High voltage output (HV)
11	700.0 mA	104 V; 192.9 V	638 mA	135 W	144.7 W	-40–60 °C	90.0 °C	High voltage output (HV)
12	750.0 mA	104 V; 180 V	641 mA	135 W	145.3 W	-40–60 °C	90.0 °C	High voltage output (HV)
13	800.0 mA	104 V; 168.8 V	639 mA	135 W	145 W	-40–65 °C	95.0 °C	High voltage output (HV)
14	850.0 mA	104 V; 158.8 V	634 mA	135 W	143.7 W	-40–65 °C	95.0 °C	High voltage output (HV)
15	900.0 mA	104 V; 150 V	636 mA	135 W	145 W	-40–65 °C	90.0 °C	High voltage output (HV)
16	950.0 mA	104 V; 142.1 V	634 mA	135 W	143.6 W	-40–65 °C	90.0 °C	High voltage output (HV)
17	1000.0 mA	104 V; 135 V	639 mA	135 W	144.8 W	-40–65 °C	90.0 °C	High voltage output (HV)
18	1050.0 mA	104 V; 128.6 V	636 mA	135 W	144.1 W	-40–65 °C	90.0 °C	High voltage output (HV)
19	250.0 mA	108 V; 131 V	199 mA	32.8 W	41.3 W	-40–70 °C	100.0 °C	Low voltage output (LV)
20	300.0 mA	90 V; 131 V	223 mA	39.3 W	47.2 W	-40–70 °C	100.0 °C	Low voltage output (LV)
21	350.0 mA	77.1 V; 131 V	251 mA	45.9 W	54.1 W	-40–70 °C	100.0 °C	Low voltage output (LV)
22	400.0 mA	67.5 V; 131 V	278 mA	52.4 W	60.7 W	-40–70 °C	100.0 °C	Low voltage output (LV)
23	450.0 mA	62 V; 131 V	307 mA	59 W	67.6 W	-40–70 °C	100.0 °C	Low voltage output (LV)
24	500.0 mA	62 V; 131 V	337 mA	65.5 W	74.6 W	-40–70 °C	100.0 °C	Low voltage output (LV)
25	550.0 mA	62 V; 131 V	366 mA	72.1 W	81.3 W	-40–70 °C	100.0 °C	Low voltage output (LV)
26	600.0 mA	62 V; 131 V	393 mA	78.6 W	87.7 W	-40–70 °C	100.0 °C	Low voltage output (LV)
27	650.0 mA	62 V; 131 V	421 mA	85.2 W	94.2 W	-40–70 °C	100.0 °C	Low voltage output (LV)
28	700.0 mA	62 V; 131 V	452 mA	91.7 W	101.6 W	-40–65 °C	100.0 °C	Low voltage output (LV)
29	750.0 mA	62 V; 131 V	478 mA	98.3 W	107.6 W	-40–65 °C	100.0 °C	Low voltage output (LV)
30	800.0 mA	62 V; 131 V	508 mA	104.8 W	114.6 W	-40–65 °C	100.0 °C	Low voltage output (LV)
31	850.0 mA	62 V; 131 V	539 mA	111.4 W	121.6 W	-40–65 °C	100.0 °C	Low voltage output (LV)
32	900.0 mA	62 V; 131 V	569 mA	117.9 W	128.6 W	-40–60 °C	100.0 °C	Low voltage output (LV)
33	950.0 mA	62 V; 131 V	598 mA	124.5 W	135.4 W	-40–60 °C	95.0 °C	Low voltage output (LV)
34	1000.0 mA	62 V; 131 V	629 mA	131 W	142.5 W	-40–60 °C	95.0 °C	Low voltage output (LV)
35	1050.0 mA	62 V; 128.6 V	647 mA	135 W	146.5 W	-40–60 °C	95.0 °C	Low voltage output (LV)

The Vmin/Vmax and CC operating-window filter features represent the global envelope of all documented settings. The complete operating-point table defines the permitted voltage at each current setting.

Installation / application

Select LED modules by comparing their forward voltage and current with the operating window at the chosen setting. Maximum tc and permissible ambient temperature apply under the conditions stated for each operating point.

Additional information

Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.

Main source of information: www.tridonic.com
