LED power supply Tridonic LC 60/24V 0-10V lp SNC UNV
LED power supply Tridonic LC 60/24V 0-10V lp SNC UNV is a constant voltage LED power supply rated up to 60 W. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.
LED power supply Tridonic LC 60/24V 0-10V lp SNC UNV
337.00 PLN
Shipment in 8-10 working days
zas_tridonic_28003002
LED power supply Tridonic LC 60/24V 0-10V lp SNC UNV is a constant voltage LED power supply rated up to 60 W. Values for individual settings are shown in the operating-point table.Load selection depends on the applicable operating window.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
LED power supply Tridonic LC 60/24V 0-10V lp SNC UNV is a constant voltage LED power supply in the Driver LC 60W 24V 0-10V lp SNC UNV family. Official article number 28003002 identifies this physical version.
Key properties
Common and exact-article specifications are kept separate from operating points. Power, LED voltage, efficiency and temperatures may depend on settings and load; the complete multi-row manufacturer data is shown below.
Technical specifications
| Manufacturer article number | 28003002 |
|---|---|
| Manufacturer family | Driver LC 60W 24V 0-10V lp SNC UNV |
| Manufacturer product group | Linear drivers |
| Supply voltage | 120 – 277 V |
| AC voltage range | 108 – 305 V |
| Mains frequency | 50 / 60 Hz |
| Typ. current (at XXX V, 60 Hz, full load) | 300 mA; 600 mA |
| Leakage current | <0.5 mA; <0.5 mA |
| Typ. input current in no-load operation | 37 mA; 23 mA |
| Typ. power input on stand-by XXX V | <0.4 W; <0.4 W |
| Typ. input power in no-load operation | 0.52 W; 0.52 W |
| Typ. efficiency at 120 V | >90.5 %; >88 % |
| THD (at XXX V, 60 Hz, full load) | <20 %; <10 % |
| Starting time | ≤0.5 s |
| Turn off time | ≤0.01 s |
| Hold on time | ≤0.001 s |
| Output voltage tolerance | 22.8–25.2 V |
| Output LF voltage ripple | <2.1 % |
| Output P_ST_LM (at full load) | ≤1 |
| Output SVM (at full load) | ≤0.4 |
| Mains surge capability (between L - N) | 2 kV |
| Mains surge capability (between L/N - PE) | 4 kV |
| (Mains) burst capability | 1 kV |
| Surge voltage at output side (against PE) | <0.5 kV |
| Storage temperature ts | -40–85 °C |
| Guarantee | 5 years |
| Output current range | 0–2500 mA |
| Max. input power | 70 W; 75 W |
| Output voltage | 24 V |
| Max. output voltage | 25.2 V |
| Typ. output power | 60 W |
| Output power range | 0–60 W |
| λ over full operating range (min.) | 0.95; 0.98 |
| Ambient temperature ta | 45 °C; -25–55 °C |
| Max. casing temperature tc | 85 °C |
| Lifetime | up to 50000 h |

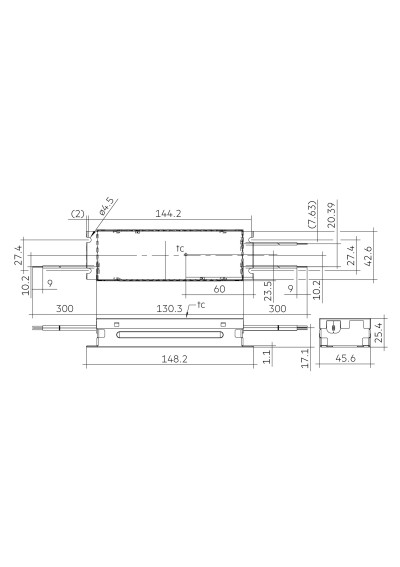

| Length | 148.2 mm |
| Width | 45.6 mm |
| Height | 25.4 mm |
| Hole spacing | 4.5 mm |
| Output mode | CV |
| Maximum output power [W] | 60 |
| Input voltage | 120 – 277 V |
| Warranty [years] | 5 |
| Maximum casing temperature tc | 85 °C |
| Storage temperature | -40–85 °C |
| Dimensions L×W×H | 148.2 × 45.6 × 25.4 mm |
| Lifetime [h] | up to 50000 h |
| Product net weight | 0.335 kg |
| Dimming | Yes |
| short_circuit_protection | Yes |
| overload_protection | Yes |
| no_load_protection | Yes |
| Manufacturer note: Product description | Constant voltage LED driver |
| Manufacturer note: Product description | Universal input voltage range |
| Manufacturer note: Product description | Class 2 |
| Manufacturer note: Product description | Type HL |
| Manufacturer note: Product description | UL Listed Class P |
| Manufacturer note: Product description | FCC Part 15 |
| Manufacturer note: Product description | Max. output power 60 W |
| Manufacturer note: Product description | Nominal lifetime up to 50,000 h (at ta 45 °C) |
| Manufacturer note: Product description | 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions) |
| Manufacturer note: Housing properties | Casing: metal, white |
| Manufacturer note: Housing properties | Dry and damp location |
| Manufacturer note: Interfaces | Dimmable via 0 ... 10 V interface |
| Manufacturer note: Interfaces | Single wires with tinned wire ends |
| Manufacturer note: Functions | Overtemperature protection |
| Manufacturer note: Functions | Overload protection |
| Manufacturer note: Functions | Short-circuit protection |
| Manufacturer note: Functions | No-load protection |
Operating points
| Point | Output current range | Max. input power | Output voltage | Max. output voltage | Typ. output power | Output power range | λ over full operating range (min.) | Ambient temperature ta | Max. casing temperature tc | Lifetime | Length | Width | Height | Hole spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 0–2500 mA | 70 W; 75 W | 24 V | 25.2 V | 60 W | 0–60 W | 0.95; 0.98 | 45 °C; -25–55 °C | 85 °C | up to 50000 h | 148.2 mm | 45.6 mm | 25.4 mm | 4.5 mm |
Installation / application
Select the load for the documented voltage and permissible power. Dimming and installation details apply only to interfaces documented for this article.
Additional information
Warranty and declared lifetime are subject to manufacturer conditions. Other family versions do not establish the contents of this article; assess its exact model designation and assigned photographs together.
Main source of information: www.tridonic.com
We make every effort to ensure that the information presented in this product description is complete, up to date and consistent with source documentation. However, product ranges and specifications may evolve and be updated, and some changes may not yet be reflected in our description. Inaccuracies or errors may also occur in the source documentation itself. If you have any doubts or notice an error, please contact us at bok@ledownia.pl.
zas_tridonic_28003002
Data sheet
- Power supply type
- Constant Voltage (CV)
- Rated power [W]
- 60
- Dimensions (L x W x H) [mm]
- 148.2 × 45.6 × 25.4 mm
- Length [mm]
- 148.2
- Width [mm]
- 45.6
- Height/thickness [mm]
- 25.4
- Warranty [years]
- 5
- Input voltage [V]
- 120-277
