Mean Well PWM-40-12 40.08 W PWM-output CV LED driver 12 V DC
Mean Well PWM-40-12 40.08 W PWM-output CV LED driver 12 V DC – dimensions

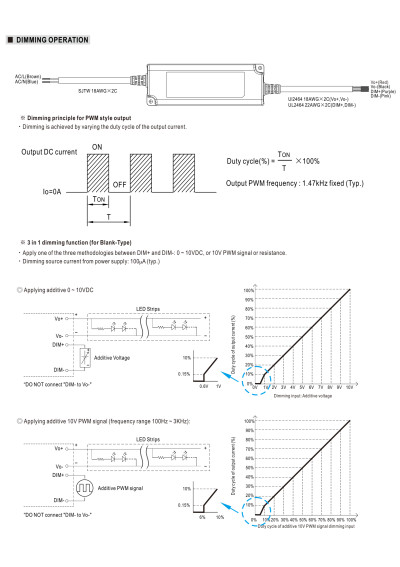

Mean Well PWM-40-12 40.08 W PWM-output CV LED driver 12 V DC – dimming diagram

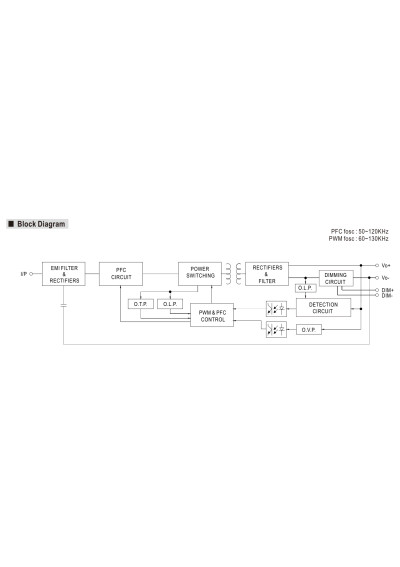

Mean Well PWM-40-12 40.08 W PWM-output CV LED driver 12 V DC – block diagram

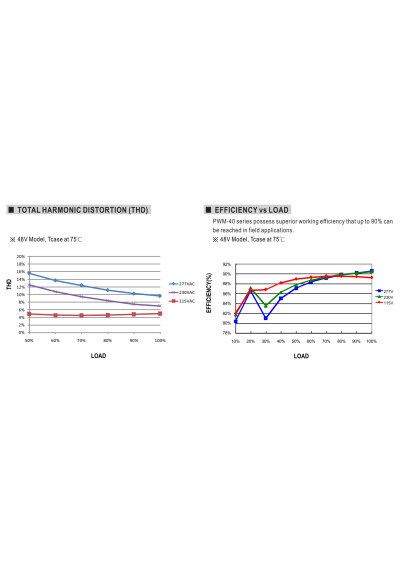

Mean Well PWM-40-12 40.08 W PWM-output CV LED driver 12 V DC – efficiency versus load characteristic

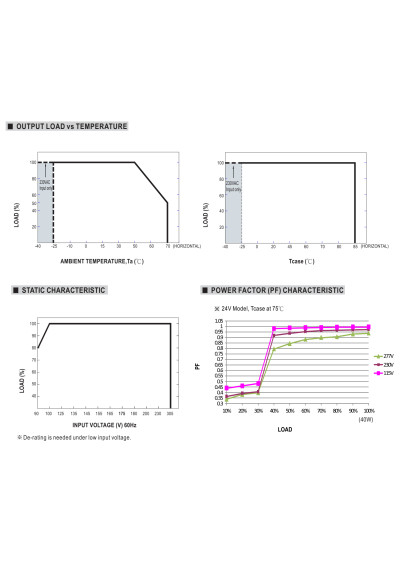

Mean Well PWM-40-12 40.08 W PWM-output CV LED driver 12 V DC – load versus temperature characteristic

Mean Well PWM-40-12 40.08W 12V IP67 LED Power Supply

Minimum order quantity: 1. Order in multiples of 1.
130.07 PLN
Shipment in 1-2 business days
Constant Voltage (CV)
tm_PWM-40-12

Mean Well PWM-40-12 is a 40.08 W, 12 V DC constant-voltage LED driver with PWM-modulated output.

Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

PWM-40-12 – full product specification

Mean Well PWM-40-12 is a PWM-40-series power supply rated at 40.08 W. The parameters below come from the exact official manufacturer datasheet.

CV PWM output

The model supplies 12 V DC while brightness is represented by output PWM modulation.

Full technical specifications

3-in-1 dimmingYes
Dimensions150 × 53 × 35 mm
Document revisionPWM-40-SPEC 2026-02-04
Typical efficiency86 %
Input frequency47–63 Hz
Input range90–305 VAC / 127–431 VDC
Inrush current50 A
IP ratingIP67
Output modulationPWM
Rated current3340 mA
Operating modeConstant Voltage (CV)
Output voltage12 V
Over-voltage protectionYes
Short-circuit protectionYes
Rated power40.08 W
Manufacturer warranty5 years
Weight0.49 kg

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_PWM-40-12

Data sheet

Power supply type
Constant Voltage (CV)
Rated power [W]
30,1-60
Output Voltage of CV power supply [V]
12
IP grade
67
Length [mm]
150
Width [mm]
53
Height/thickness [mm]
35
Warranty [years]
5
Input voltage [V]
90-305

Specific References

EAN13
4711287459837
MPN
PWM-40-12
