Mean Well PWM-200-12DA2 180 W PWM-output CV LED driver 12 V DC
Mean Well PWM-200-12DA2 180 W PWM-output CV LED driver 12 V DC – dimensions

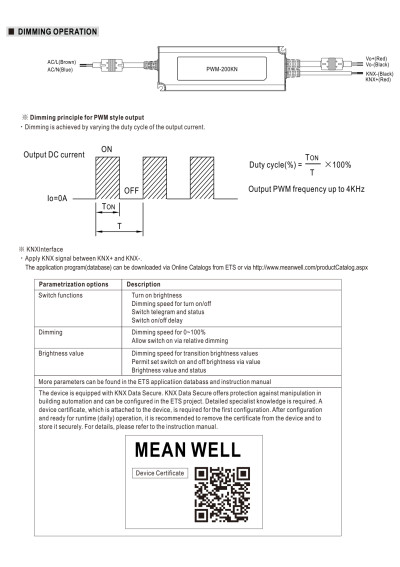

Mean Well PWM-200-12DA2 180 W PWM-output CV LED driver 12 V DC – dimming diagram

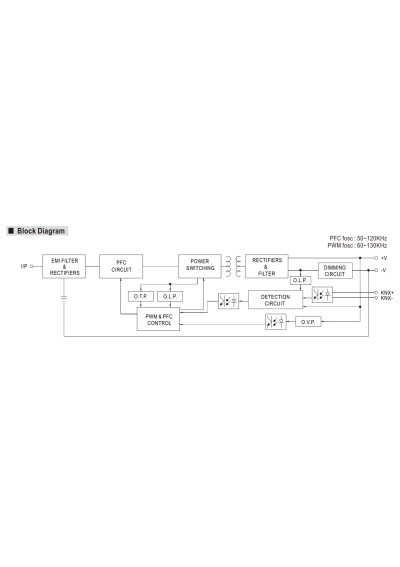

Mean Well PWM-200-12DA2 180 W PWM-output CV LED driver 12 V DC – block diagram

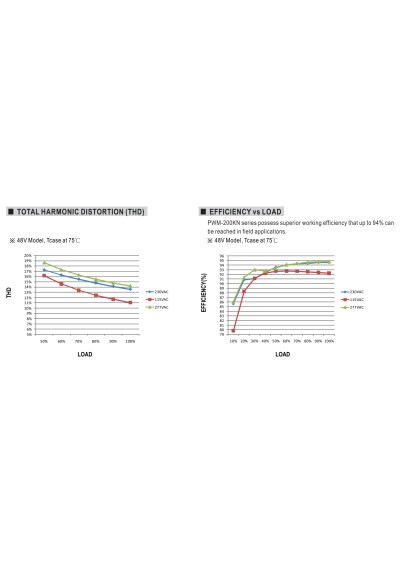

Mean Well PWM-200-12DA2 180 W PWM-output CV LED driver 12 V DC – efficiency versus load characteristic

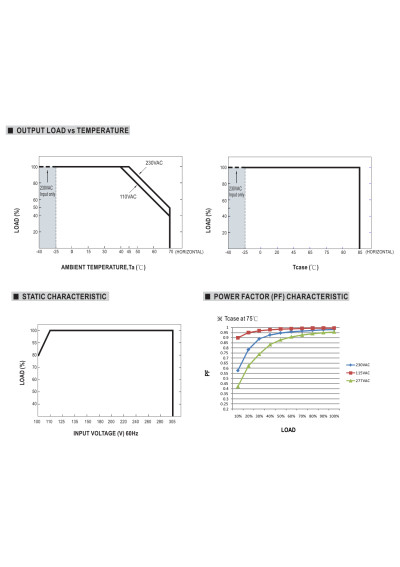

Mean Well PWM-200-12DA2 180 W PWM-output CV LED driver 12 V DC – load versus temperature characteristic

Mean Well PWM-200-12DA2 180W 12V LED Power Supply

Minimum order quantity: 1. Order in multiples of 1.
268.28 PLN
Shipment in 8-10 working days
Constant Voltage (CV)
tm_PWM-200-12DA2

Mean Well PWM-200-12DA2 is a 180 W, 12 V DC constant-voltage LED driver with PWM-modulated output.

Volume discounts

Quantity Discounted price
5+ 260.15 PLN
10+ 243.89 PLN
20+ 227.63 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

PWM-200-12DA2 – full product specification

Mean Well PWM-200-12DA2 is a PWM-200-series power supply rated at 180 W. The parameters below come from the exact official manufacturer datasheet.

CV PWM output

The model supplies 12 V DC while brightness is represented by output PWM modulation.

Full technical specifications

Output modulationPWM
Rated current15000 mA
Operating modeConstant Voltage (CV)
Output voltage12 V
Rated power180 W

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_PWM-200-12DA2

Data sheet

Power supply type
Constant Voltage (CV)
Rated power [W]
100,1-249
Output Voltage of CV power supply [V]
12

Specific References

MPN
PWM-200-12DA2
