Mean Well PWM-200-12 199.2 W PWM-output CV LED driver 12 V DC
Mean Well PWM-200-12 199.2 W PWM-output CV LED driver 12 V DC – dimensions

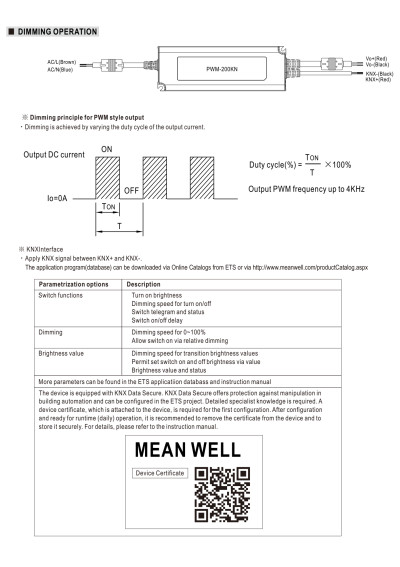

Mean Well PWM-200-12 199.2 W PWM-output CV LED driver 12 V DC – dimming diagram

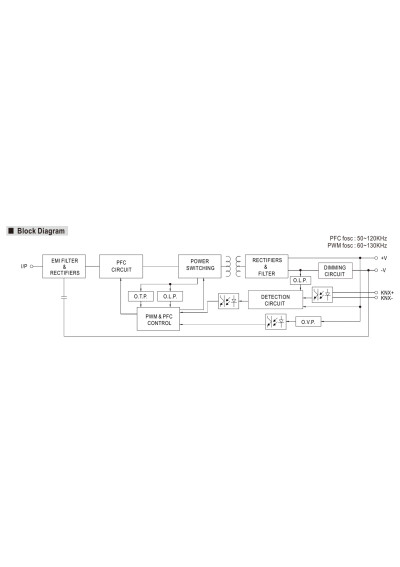

Mean Well PWM-200-12 199.2 W PWM-output CV LED driver 12 V DC – block diagram

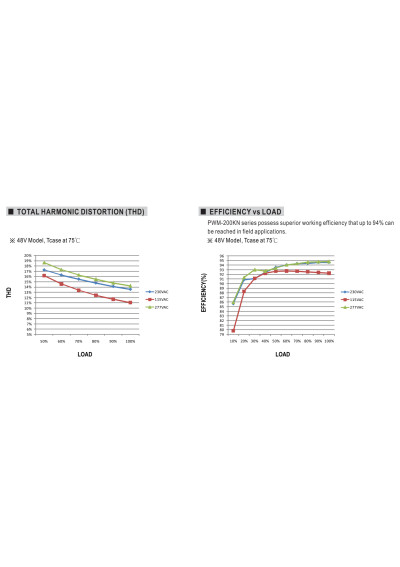

Mean Well PWM-200-12 199.2 W PWM-output CV LED driver 12 V DC – efficiency versus load characteristic

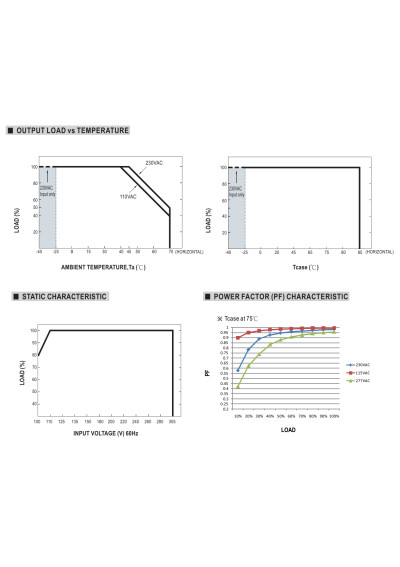

Mean Well PWM-200-12 199.2 W PWM-output CV LED driver 12 V DC – load versus temperature characteristic

Mean Well PWM-200-12 199.2W 12V LED Power Supply

Minimum order quantity: 1. Order in multiples of 1.
243.89 PLN
Shipment in 1-2 business days
Constant Voltage (CV)
tm_PWM-200-12

Mean Well PWM-200-12 is a 199.2 W, 12 V DC constant-voltage LED driver with PWM-modulated output.

Volume discounts

Quantity Discounted price
5+ 235.76 PLN
Quantity
Wishlist
Compare
  Delivery

1-3 dni (PL), 3-10 dni (non-PL)



Privacy Policy

  Return Policy

14 days

PWM-200-12 – full product specification

Mean Well PWM-200-12 is a PWM-200-series power supply rated at 199.2 W. The parameters below come from the exact official manufacturer datasheet.

CV PWM output

The model supplies 12 V DC while brightness is represented by output PWM modulation.

Full technical specifications

Output modulationPWM
Rated current16600 mA
Operating modeConstant Voltage (CV)
Output voltage12 V
Rated power199.2 W

Manufacturer datasheet

Complete source specification: official Mean Well datasheet.

tm_PWM-200-12

Data sheet

Power supply type
Constant Voltage (CV)
Rated power [W]
100,1-249
Output Voltage of CV power supply [V]
12

Specific References

EAN13
4711287460123
MPN
PWM-200-12
