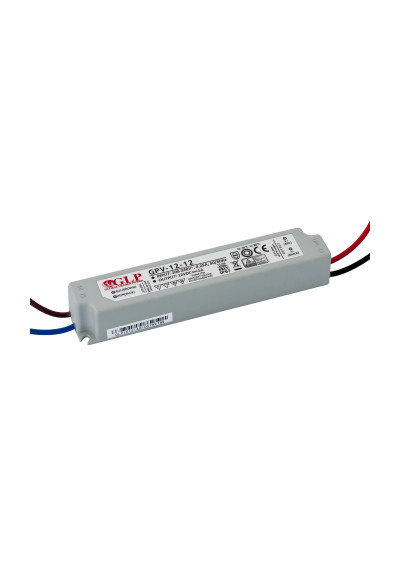

GLP GPV-12-12 12W 12V IP67 LED Power Supply
GLP GPV-12-12 is a power supply whose parameters are verified against official manufacturer documentation. Full technical data and documents are listed below.
GLP GPV-12-12 12W 12V IP67 LED Power Supply
25.00 PLN
Shipment in 1-2 business days
zas_gpv_12_12_mp
GLP GPV-12-12 is a power supply whose parameters are verified against official manufacturer documentation. Full technical data and documents are listed below.
Delivery
1-3 dni (PL), 3-10 dni (non-PL)
Privacy Policy
Return Policy
14 days
GPV-12-12 – full technical specification
GLP GPV-12-12 is a power supply whose parameters are verified against official manufacturer documentation. Full technical data and documents are listed below.
Identity
| Manufacturer | GLP |
|---|---|
| Model | GPV-12-12 |
| Series | GPV |
Output parameters
| Line regulation | 1 % |
|---|---|
| Load regulation | 2 % |
| Rated output current | 1 A |
| Operating mode | CV |
| Output voltage | 12 V |
| Rated power | 12 W |
| Ripple and noise | 120MVP-P |
Input parameters
| Inrush current | 6A/230VAC; =230μs A |
|---|
Protections
| Over-temperature protection | Yes |
|---|---|
| Over-temperature protection behavior | 110°C±10°C(shutdownoutputvoltage.Re-powerontorecovery) |
| Over-voltage protection | Yes |
| Over-voltage protection behavior | shutdownoutputvoltage.Re-powerontorecovery |
| Short-circuit protection | Yes |
| Short-circuit protection behavior | hicupmode,auto-recovery. |

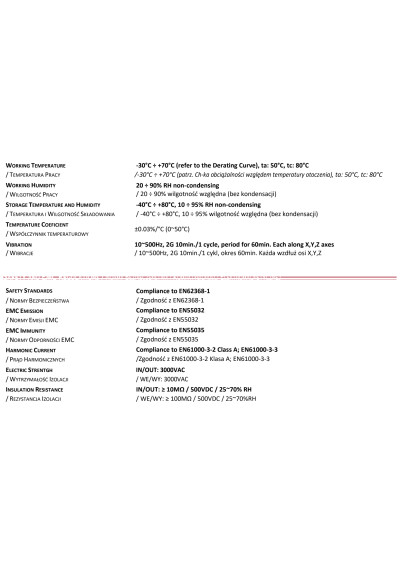

Environmental conditions
| Operating temperature | -30–70 °C |
|---|---|
| Storage temperature | -40–80 °C |
| Operating humidity | 20–90 % RH |
Construction and dimensions
| Cooling | free_air_convection |
|---|---|
| Dimensions (L × W × H) | 345 × 290 × 230 mm |
| IP rating | IP67 |
Safety and EMC
| EMC emission | Compliance to EN55032/NORMYEMISJIEMC/ZgodnośćzEN55032 |
|---|---|
| EMC immunity | Compliance to EN55035/NORMYODPORNOŚCIEMC/ZgodnośćzEN55035 |
| Safety standards | Compliance to EN62368-1/NORMYBEZPIECZEŃSTWA/ZgodnośćzEN62368-1 |
Reliability
| Lifetime | 40000 h |
|---|
Manufacturer documentation
zas_gpv_12_12_mp
Data sheet
- Power supply type
- Constant Voltage (CV)
- Rated power [W]
- 10,1-15
- Output Voltage of CV power supply [V]
- 12
- Maximum output current of CV led driver
- 1
- IP grade
- 67
- Length [mm]
- 345
- Width [mm]
- 290
- Height/thickness [mm]
- 230
Specific References
- EAN13
- 5901885208213
